2015 new design towable backhoe loader with high quality for sale
The parameters of the backhoe loader:
Whole Operation Weight |
7600KG |
Final Reducer |
Single Stage Final Reducer |
Transport Dimension |
|
Rated Loader of Axle |
7.5t |
mm L*W*H |
5910×2268×3760 |
Transmission System |
Carraro |
Wheel base |
2250mm |
Torque Converter |
|
Min. Ground Clearance |
300mm |
Model |
YJ280 |
Loading Bucket Capacity |
1.0m3 |
Type |
Single-stage Three Elements |
Breakout Force |
38KN |
Max. Efficiency |
84.4% |
Loading Lifting Capacity |
2500KG |
Inlet Pressure |
0.4Mpa—0.55 Mpa |
Bucket Dumping Height |
2742mm |
Outlet Pressure |
1.2Mpa—1.5 Mpa |
Bucket Dumping Distance |
1062mm |
Cooling Method |
Oil-cooling Pressure Circulation |
Digging Depth |
5200mm |
Gearbox |
|
Digging Backhoe Capacity |
0.3 m3 |
Type |
Fixed Shaft Power Transmission |
Max. Digging Depth |
4082mm |
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
Swing Angle of Excavator Grab |
190o |
Gears |
Two Gears Ahead, Two Gears Astern |
Max. Pulling Force |
39KN |
Max.Speed |
30Km/h |
Engine |
|
Tyre |
|
Model |
CUMMINS (4BTA-C100 ) |
Model |
16/70-20 |
Type |
In Line Direct injection Four-Stroke and Injection Combustion Chamber |
Pressure of Front wheel |
0.22 Mpa |
Cylinder-Inside Diameter*Stroke |
4-108×120 |
Pressure of Back Wheel |
0.22 Mpa |
Rated Power |
74KW |
Brake System |
|
Rated Speed |
2400r/min |
Service Brake |
Air Over Oil Caliper Brake |
Min. Fuel Consumption |
≤216g/kw.h |
|
External Type |
Max.Torque |
≥261.7N.M/1800r/min |
|
Self-regulation |
Displacement |
4.4L |
|
Self-balance |
Steering System |
|
Emergency Brake |
Operation Power Implementing brake |
Model of Steering Device |
BZZ5-250 |
|
Manual Operation Power Terminating Brake |
Steering Angle |
±36 o |
Hydraulic System |
|
Min. turning radius |
5018mm |
Digging Power of Excavator Grab |
46.5KN |
Pressure of the system |
12Mpa |
Digging Power of Dipper |
31KN |
Axle |
|
Bucket Lifting Time |
5.4S |
Manufacturer |
Shandong Tuishan Machinery |
Bucket Lowering Time |
3.1S |
Main Transmission Type |
ouble Reduction |
Bucket Discharge Time |
2.0S |

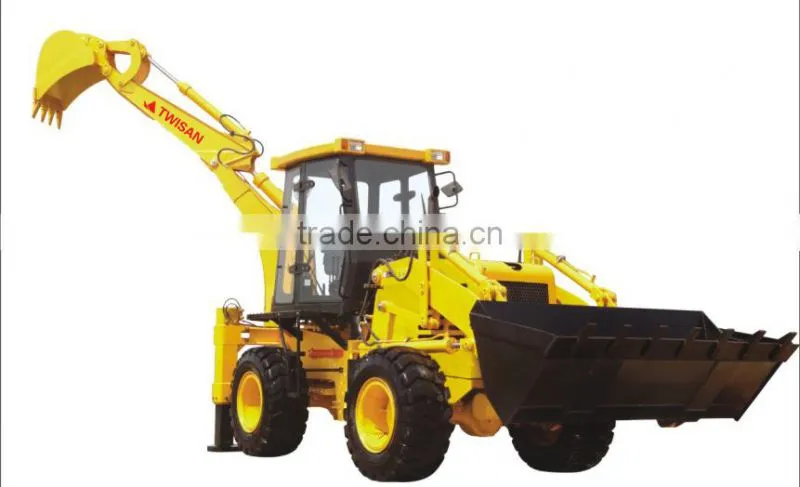

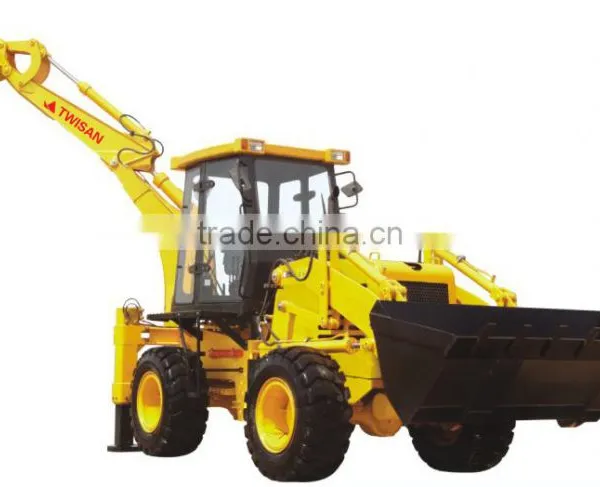

The appearance of WZ30-25
If there is anything I can do for you, please contact me at anytime, I will reply you at the first moment I see the message.
Shandong Tuishan Heavy Industry Machinery Co., Ltd welcome you!
