Earth-moving Machine with Shovel Loader for Industrial and Farming
- 560 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Brand Name: | Twisan | Model Number: | zly956 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Other, 4 wheel driving |
Dimension(Long * Breadth * High): | 7943mm*2910*3406mm | Rated Load: | 5000kg | Certification: | iso,ce |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 New Designed Shovel Loader Skid Steer Loader Farm Tractor Small Wheel Loader with Shovel Loader zly956 Hot Sale

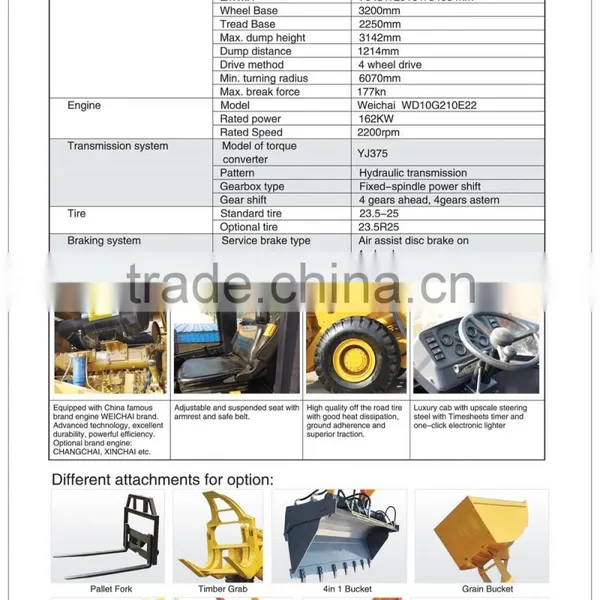

Main technical parameters:
Model No. | ZLY956 | |
Specification | Overall weight | 17000KG |
Rated load | 5000KG | |
Bucket capacity | 2.7~4.5CBM | |
LxWxH | 7943×2910×3406 mm | |
Wheel Base | 3200mm | |
Tread Base | 2250mm | |
Max. dump height | 3142mm | |
Dump distance | 1214mm | |
Drive method | 4 wheel drive | |
Min. turning radius | 6070mm | |
Max. break force | 177kn | |
Engine | Model | Weichai WD10G210E22 |
Rated power | 162KW | |
Rated Speed | 2200rpm | |
Transmission system
| Model of torque converter | YJ375 |
Pattern | Hydraulic transmission | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 4 gears ahead, 4gears astern | |
Tire | Standard tire | 23.5-25 |
Optional tire | 23.5R25 | |
Braking system | Service brake type | Air assist disc brake on 4 wheels |
Parking brake type | Disc brake manually |
Features and advantages:
1.High end matching engine, superior machine performance and extraordinary
operating efficiency.
2. Full-hydraulic steering, system makes the wheel loader operated easily and
improved efficiency.
3. Low fuel consumption, high-quality engine has good power performance and
big torque reserve.
4.Bucket with patent blade, side teeth, protected teeth, higher intensity and rigidity,
wearing resistance is 3-5 times of the alloy blade
5. Small turning radius makes the wheel loader machine flexible for operation
in small working sites
6. Various optional equipments and buckets can satisfy different needs of customers.
Optional Attachment:
Friendly Advice:
we are a professional manufacturer for making electric forklift and have enjoyed a good reputation for many years. We have confidence of making high class products for you , so any requirements ,please contact us freely ,we can reply you promptly!

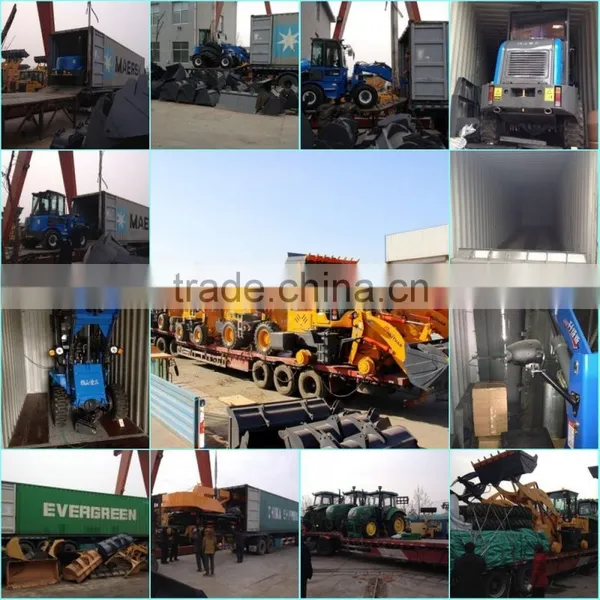

In terms of wheel loader shipping:
1.For the small wheel loader, such as ZLY908,ZLY912,ZLY912F,ZLY916A,ZLY918 and ZLY920,it can be put into 1 × 20' ft container,2 or 3 sets in 1x40'hq container.
2.For the 2.5T-5T wheel loader,such as ZLY925,ZLY928,ZLY936,ZLY956,1 set can be put into 1x240'hq container,2 or 3 sets in 2 × 40'hq container.
We have a large quantity stock. For stock order, the shipping time is with 7 days. For other order, the shipping time is about 7-15 days. It also depends on the order quantity.
We are professional manufacturer of wheel loader and electric forklift.We can produce wheel loader from 0.5T to 5T,and the forklift from 0.5T to 5T.The toys of wheel loader and forklift is going to be the market .Please pay your attention here!
Qingzhou Tuishan Heavy Industry Machinery Co., Ltd. is located in Qingzhou City which is a long history city with beautiful scenery and convenient transportation. Jiaoji Railway, Jining Expressway and 309 National Highway pass through Qingzhou with superior environment of geography, communications, information and humanity.
Our company occupies 40000 square meters and the covered area is 18000 square meters. We now have more than 400 workers including 8 senior engineers and 36 professional technicians. We have fixed assets more than 70millon RMB. We are the professional manufacturer with complete production facility and detection device in the field of engineer machinery business. Our main products contain ZLY series wheel loader(910H, 915BH, 918H, 918DH, 918E, 920E, 920B, 925D, 925F, 926D, 926F, 928D, 928F, 930F, 953), 5T, 6T, 7T, 8T, 10T truck crane and underground machine etc. We independent research and develop by adopting the advance technical from the similar machine in home and overseas and combining the structure principle of "Large and medium-sized loader".
Our products are with the characteristics of reasonable structure, attractive appearance, reliable performance, easy operating and convenient maintenance and so on. We get the clients' acceptance and praise due to the reliable performance, high efficiency operation and excellent service. More than 200 sales and service outlets cover all over the country.
