Heavy Construction Machinery Equipment RC Mini Front End Loader
1.) Charateristics:
Model |
ZLY928F |
Bucket capacity(m^3) |
1.0 |
Rated load mass(kg) |
2600 |
Operation mass(kg) |
5800 |
Engine model |
4105 |
Rated power/speed(kw) |
72 |
Max climbing degree(°) |
30° |
Drive type |
4WD |
Braketype |
Hydraulic disc brake |
Max. Dumping height (mm) |
3200 |
Uninstall instance (mm) |
1050 |
Wheel base (mm) |
2250±10 |
Wheel tread (mm) |
1540±10 |
Boom rise time (s) |
4.5 |
Dump time |
3.5 |
Boom fall times(s) |
3 |
Overall dimension (mm) |
5780*2000*2900mm |
Tyre type |
16/70-20 |
Drive axle brand |
QIAOWEI |
2.) Articulated mini wheel loader Specification:
|
Cabin: Closed cab. Roomy, quiet cab with readable instrumentation and equipment control console and shock-absorbing seat provides the best possible working environment for the operator |
|
|
Engine: Weichai Huafeng 4105 72KW. Speed: 2400rpm. Vertical, in-line, water cooled, 4-stroke diesel engine. 4 Cylinders |
|
|
Brake system:air assist disc brake on 4 wheels |
|
|
Tyre: Bias tyre 16/70-20.
|
|
|
Lamp: Adopt LED light. Beautiful appearance. Long life span. |

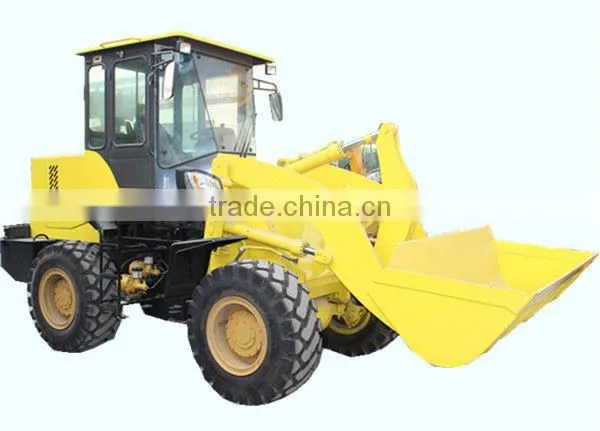

3.) Product picture: Differnt size of wheel loader available. Large quantity in stock.
4.) Articulated mini wheel loader Application:
Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc
5.) Articulated mini wheel loader Advantage:
Adopt famouse brand engine which can gurantee the good performance
Baking finish craft. It can not only improve the surface finish, but also avoid the problem of peeling off, crack, bubble of paint. It can be more suitable to the high
and low termperature environment.
We own professional design team. So we can accept customized order as per your request.
6.) Packing and shipping:
As usuall, it is nude package. Shipping method by sea loaded with container. Loading picture for yor reference as follows.
