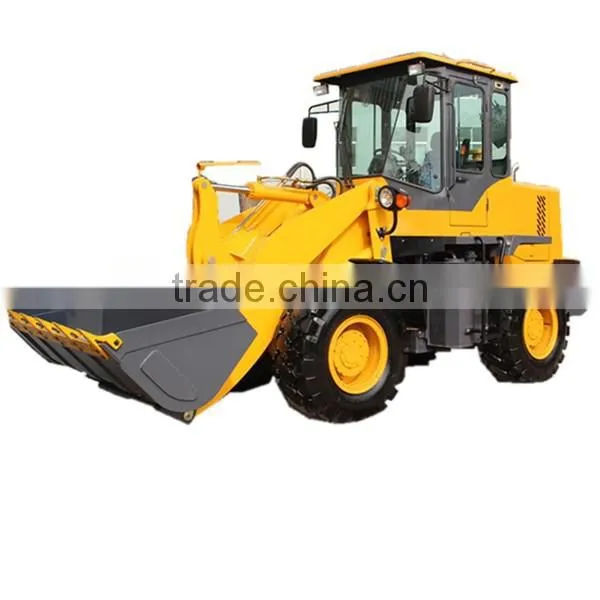

China Building Construction Small Wheel Loader of 2.5 ton for sale
ZLY925
Main Technical parameters:
Overall dimension | |
Model |
ZLY925 |
Bucket capacity(m^3) |
1.1 |
Rated load mass(kg) |
2500 |
Operation mass(kg) |
5800 |
Max. Dumping height (mm) |
3000 |
Uninstall instance (mm) |
850 |
Wheel base (mm) |
2250±10 |
Wheel tread (mm) |
1500±10 |
Boom rise time (s) |
4.5 |
Dump time |
3.5 |
Boom fall times(s) |
3 |
Overall dimension (mm) |
6100X2200X3000 |
Engine model |
Weichai Brand 4105 |
Rated power/speed(kw) |
72 |
Max climbing degree(°) |
30° |
Drive type |
4WD |
Brake type |
Hydraulic disk brake |
Tyre type |
16/70-16 |
Drive axle brand |
WEIYU |
model of torque converter |
YJ280 |
torque converter pattern |
hydraulic transmission |
gearbox type |
fixed-spindle power shift |
gear shift |
2 gears ahead,2 gears astern |
Features and advantages:
1.High end matching engine, superior machine performance and extraordinary
operating efficiency.
2. Full-hydraulic steering, system makes the wheel loader operated easily and
improved efficiency.
3. Low fuel consumption, high-quality engine has good power performance and
big torque reserve.
4.Bucket with patent blade, side teeth, protected teeth, higher intensity and rigidity,
wearing resistance is 3-5 times of the alloy blade
5. Small turning radius makes the wheel loader machine flexible for operation
in small working sites
6. Various optional equipments and buckets can satisfy different needs of customers.
FOB Port |
Qingdao, China |
Delivery Time |
Within 10-15 days after receiving the payment |
Package Detail |

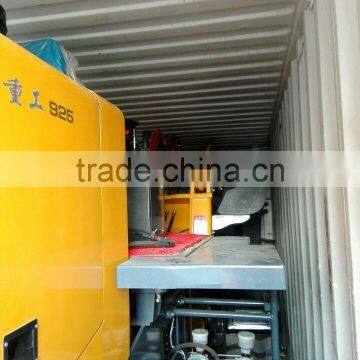

Nude package,1set in a 40’ container,3 sets in 2 40' hq |
Payment Terms |
T/T L/C |
Supply Ability |
500 sets per month |
We have a large quantity stock. For stock order, the shipping time is with 7 days. For other order, the shipping time is about 7-15 days. It also depends on the order quantity.
Our certifications:
We are professional manufacturer of wheel loader and electric forklift.We can produce wheel loader from 0.5T to 5T,and the forklift from 0.5T to 5T.The toys of wheel loader and forklift is going to be the market .Please pay your attention here!

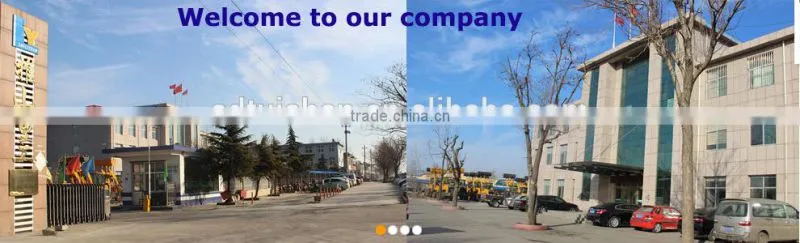

Qingzhou Tuishan Heavy Industry Machinery Co., Ltd. is located in Qingzhou City which is a long history city with beautiful scenery and convenient transportation. Jiaoji Railway, Jining Expressway and 309 National Highway pass through Qingzhou with superior environment of geography, communications, information and humanity.
Our company occupies 40000 square meters and the covered area is 18000 square meters. We now have more than 400 workers including 8 senior engineers and 36 professional technicians. We have fixed assets more than 70millon RMB. We are the professional manufacturer with complete production facility and detection device in the field of engineer machinery business. Our main products contain ZLY series wheel loader(910H, 915BH, 918H, 918DH, 918E, 920E, 920B, 925D, 925F, 926D, 926F, 928D, 928F, 930F, 953), 5T, 6T, 7T, 8T, 10T truck crane and underground machine etc. We independent research and develop by adopting the advance technical from the similar machine in home and overseas and combining the structure principle of "Large and medium-sized loader".
Our products are with the characteristics of reasonable structure, attractive appearance, reliable performance, easy operating and convenient maintenance and so on. We get the clients' acceptance and praise due to the reliable performance, high efficiency operation and excellent service. More than 200 sales and service outlets cover all over the country.
