Help CenterChina Small Garden Tractor Loader With Front End ZLY918 Hydraulic Transmission
Related Products
-
Small Garden Land Truck With Front End ZLY918 Hydraulic TransmissionUS$ 9,600 - 17,000MOQ: 1 Unit -
Agricultural Farm Small Wheel Loader ZLY918 With 2850mm Dump HeightUS$ 9,800 - 17,200MOQ: 1 Unit
-
Mini Tractor Wheel Loader Backhoe DiggerUS$ 1 - 10,000MOQ: 1 Set
-
Weifang CAISE Machinery CS15 Mini Loader With Backhor Skid DiggerUS$ 1 - 10,000MOQ: 1 Set
-
Linyi CAISE Mini Wheel Loader Tractor Tiny Mini Cab With Hydraulic Motor BackhoeUS$ 1 - 10,000MOQ: 1 Set
Main Technical Parameters:
Specification | Model No. | ZLY918 |
| Rated load | 1800KG |
| Bucket Capacity | 0.8cbm |
| Dump Height | 2850mm |
| Dump distance | 700mm |
| Wheel Base | 2250mm |
| Wheel Tread | 1460mm |
| Machine weight | 4000kg |
| LxWxH (Without fork) | 4900*1850*2600mm |
Engine | Model | WEICHAI BRAND 490 |
| Type | Direct injection, water cooling, Four cylinders |
| Rated Power | 38KW |
| Rated Speed | 2400RPM |
Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 35°± |
| Min. turning radius | 4600mm |
Brake system | Service braking | DISC Brake |
Tire | Standard tire | 20.5-16 |
| Optional tire | 1400-16 |
Configuration | luxury cab with fan, radio, reverse mirror, reverse camera, Mechanic joystick, Engine preheating, cabin heater, Bucket Width 1600mm. | |
Big cab with better visual field short wheel base chassis improves steering flexibility and operation effciency.
The cab with fan,radio,rearview mirror,reverse camera,adjustable steering wheel,multi-function dashboard,adjustable seat with safe belt and armrest,mechanical joystick,etc.
Vaious kinds of attachments can meet different request of customer.

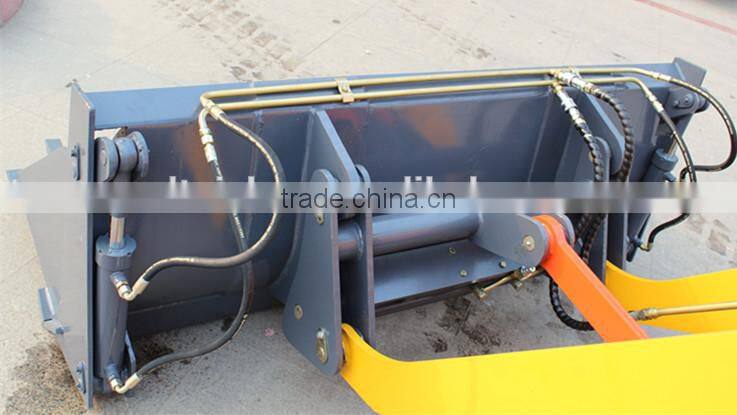

Equlpped quick hitch can quickly chang defferent attachments.

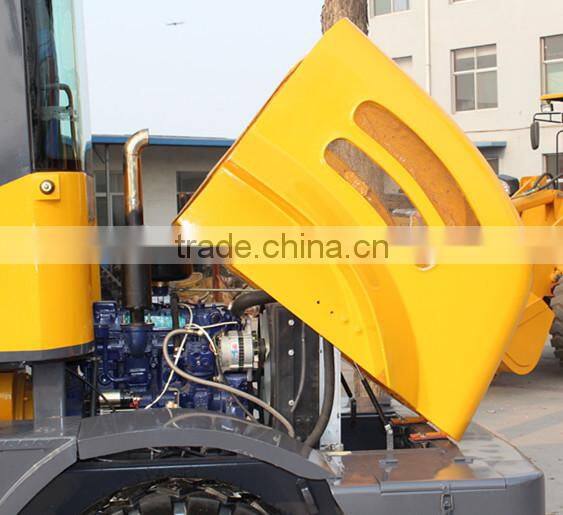

Engine cover can be opened.Easy maintain.
Got CE and ISO certificate.
Delivery and advangtage:
If you like this wheel loader please contactt me I will give the best price and service.
