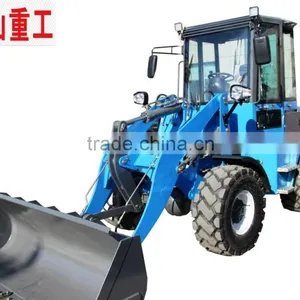

Big Cab Agricultural Mini Wheel Loader For Sale With 37KW Engine
- qingdao
- T/T
You May Like
-
1200kg Multifunction Min Wheel Loader for Sale
-
TWISAN ZLY916A Multifunction Mini Front End Loader, Articulated Mini Wheel Loader
-
China TOP Brand High Quality Small Front End Loader With Hydraulic Joystick Control
-
1200KG 38KW Small Scale Compact Construction Tractor Wheel Loader for Sale
-
1200kg Wheel Loader With Xinchai ,Weichai Engine for European Market
-
China Small Scale Complete Front End Loader With Weichai 38kw Engine
Product Details
| Condition | New | Brand Name | shiliyuan | |
| Model Number | zly916 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Other, 4 wheel driving | |
| Dimension(Long * Breadth * High) | 4600mm*1700*2500mm | Rated Load | 1200kg | |
| Certification | iso,ce | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

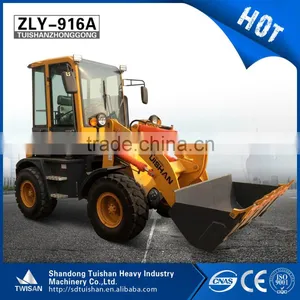

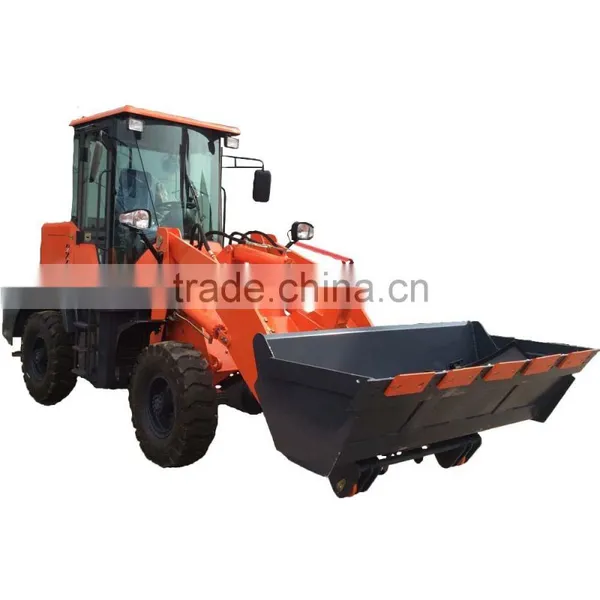

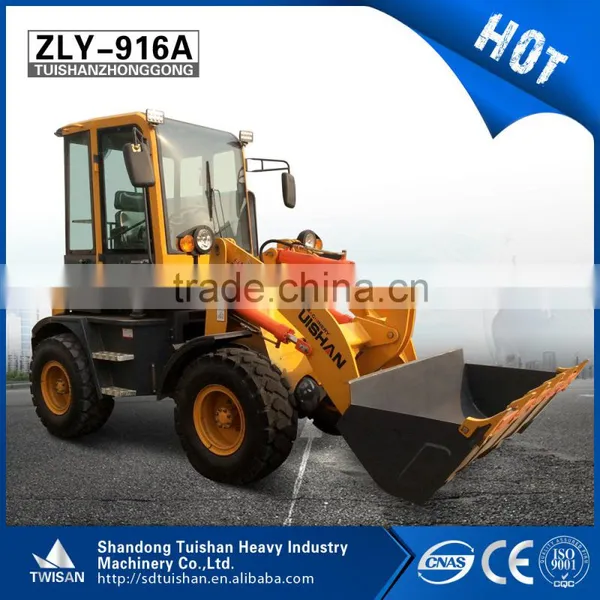

1.2 ton constructional mini wheel loader zly916A for construction
Vidio on youtube:
ZLY916A wheel loader hot sale in Europe market
1.Euro3 certificate engine
2.loader with CE certificate
3.big cabin more comfortable
4.heater in cabin

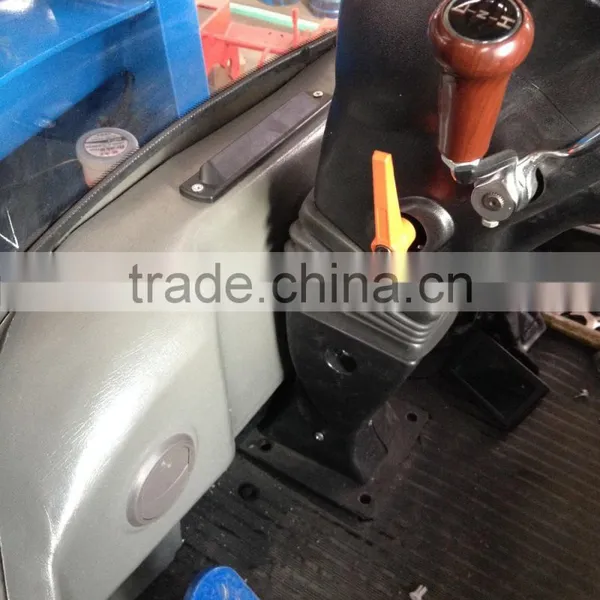

5.joystick and quick hitch
6.LED and reverse camera

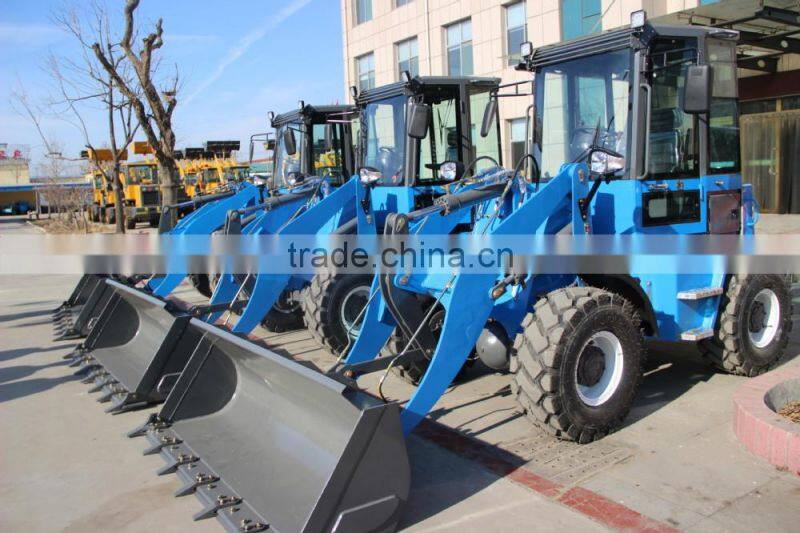

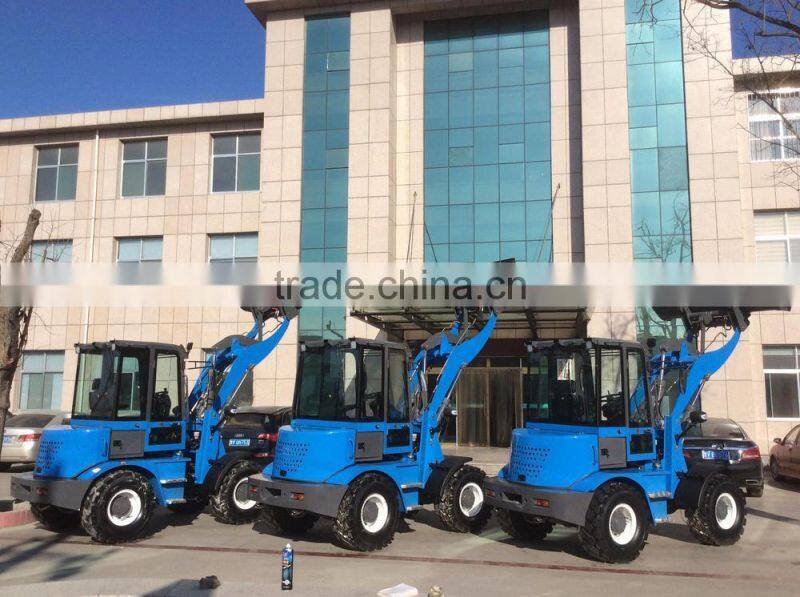

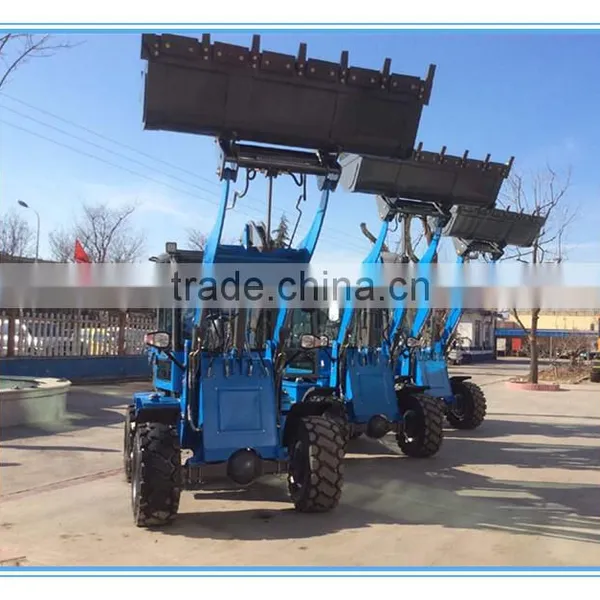

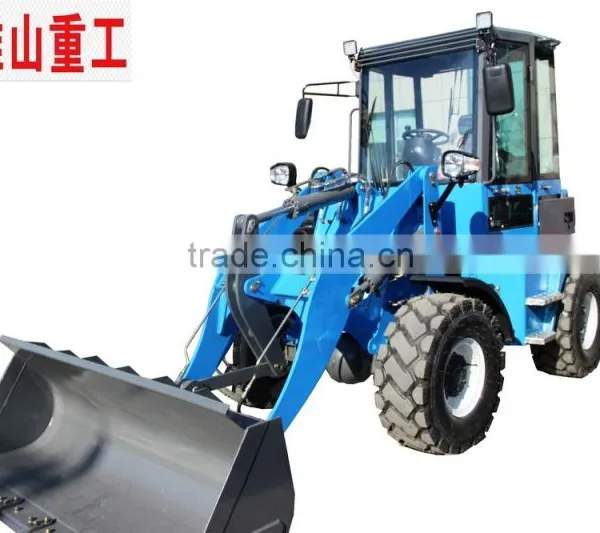

New Design Big Cab Agricultural Mini Wheel Loader For Sale With 37KW Engine
<img
<img
Technical data:
Specification | Model No. | ZLY916A |
Rated load | 1200KG | |
Bucket Capacity | 0.7cbm | |
Dump Height | 2650mm | |
Dump distance | 1100mm | |
Wheel Base | 1900mm | |
Wheel Tread | 1360mm | |
Ground clearance | 250mm | |
Machine weight | 3300kg | |
LxWxH (Withou fork) | 4600*1700*2550mm | |
Engine | Model | Weichai 490 |
Type | In-line arrangement, water cooling, four strokes | |
Rated Power | 38KW | |
Rated Speed | 2400RPM | |
Transmission system | Torque converter model | YJ240 |
Type | Single phase, single stage, Radial in-ward turbine triplex | |
Gear box tyoe | Fixed- Spindle power shift | |
Gear shift | 2 gears ahead, 2 gears back | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35°± | |
Min. turning radius | 4200mm | |
Brake system | Service braking | Oil brake |
Parking braking | Drum type | |
Tire | Standard tire | 20.5/70-16 |

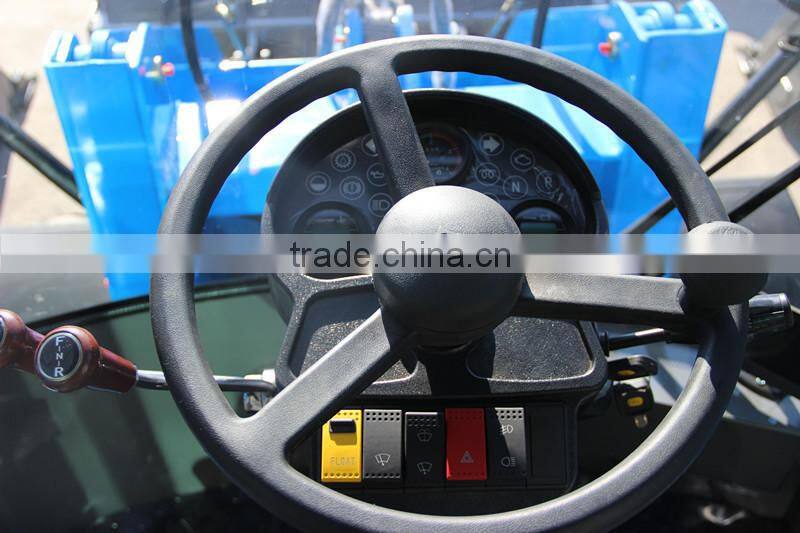

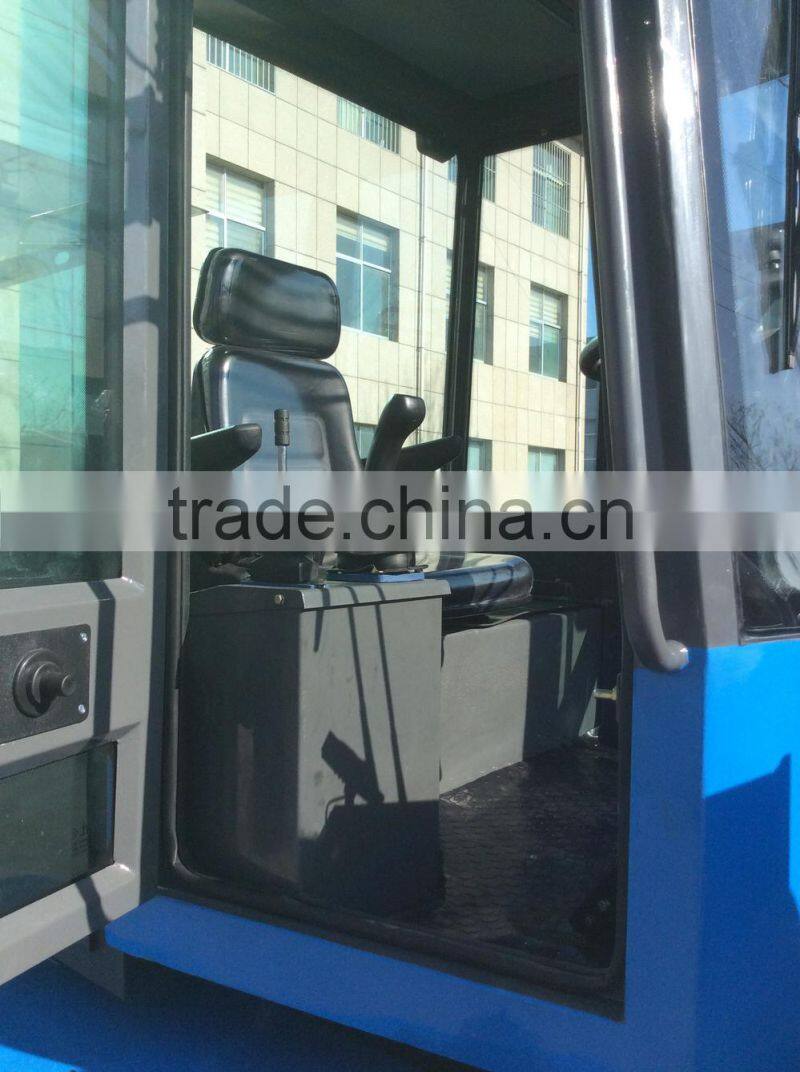

| Luxury cab with adjustable steering wheel and multi function dashboard |

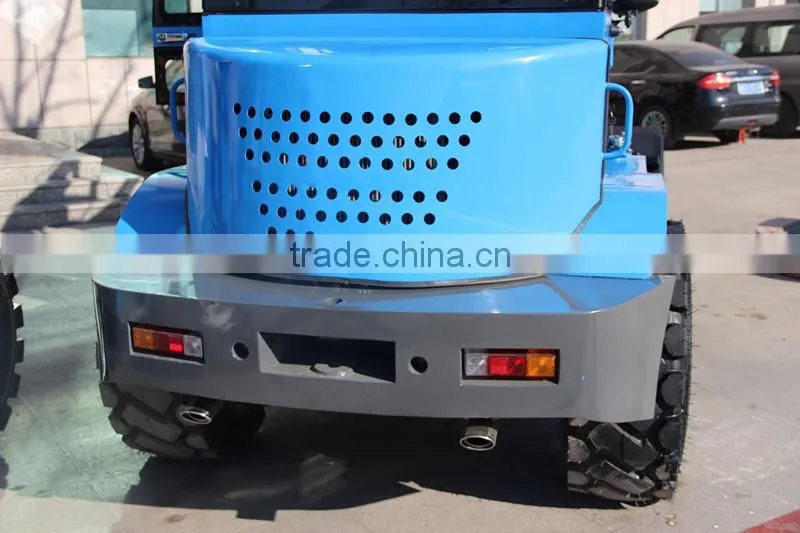

| New design rear engine cover. |

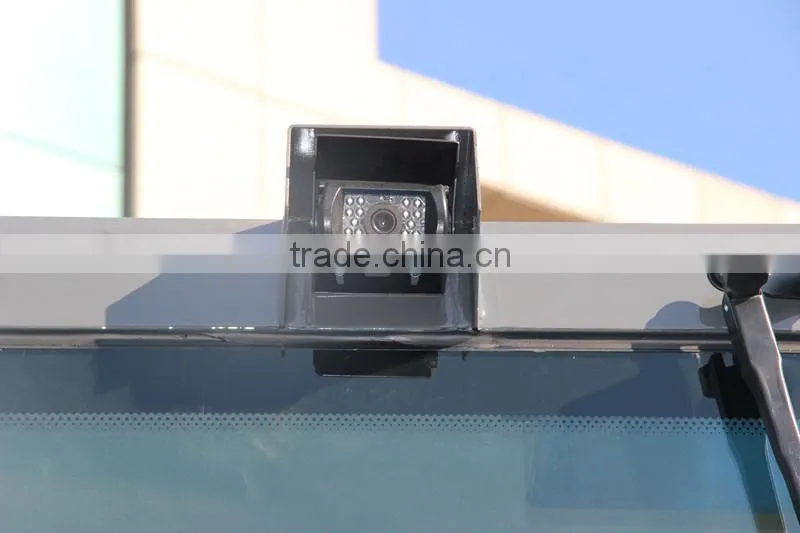

| Reverse camera |

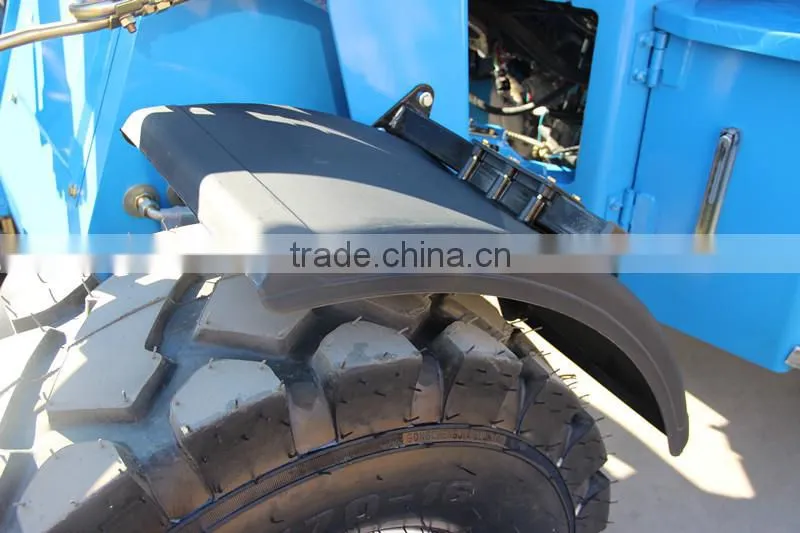

| High quality nylon front splash guard |
| Protective guard. More safe |

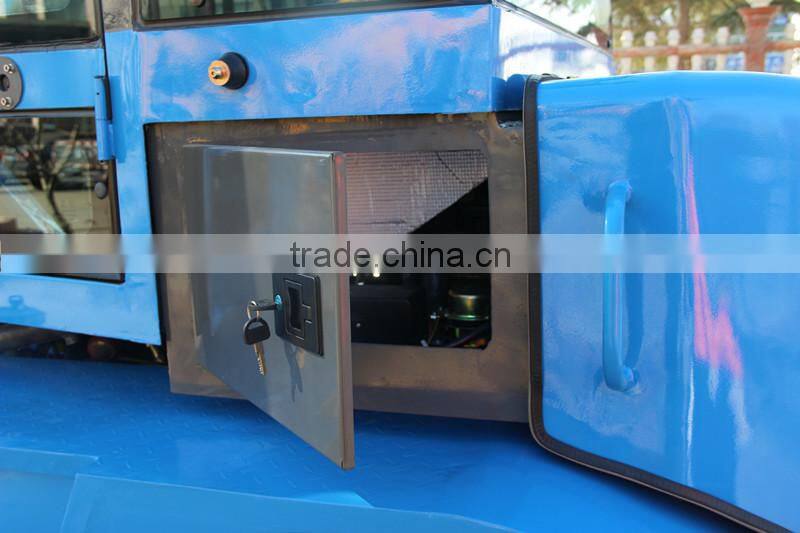

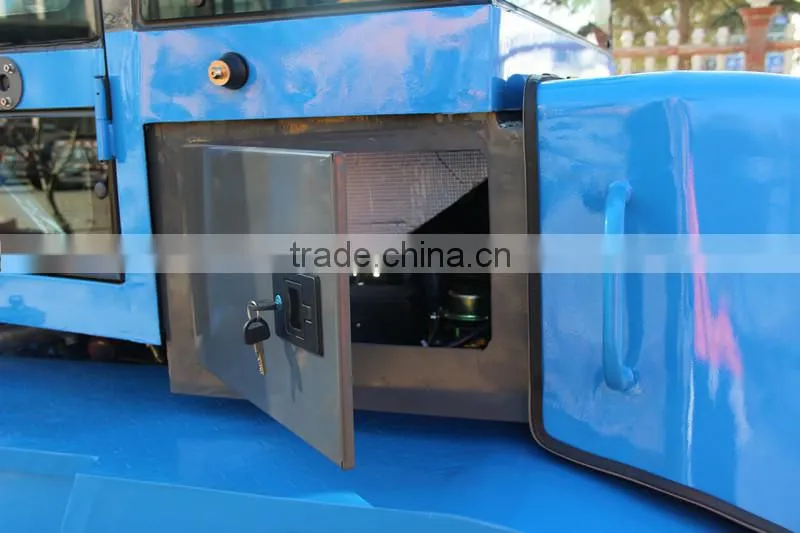

| Reserved hole for repair at both sides of the cab. Easy maintain. |

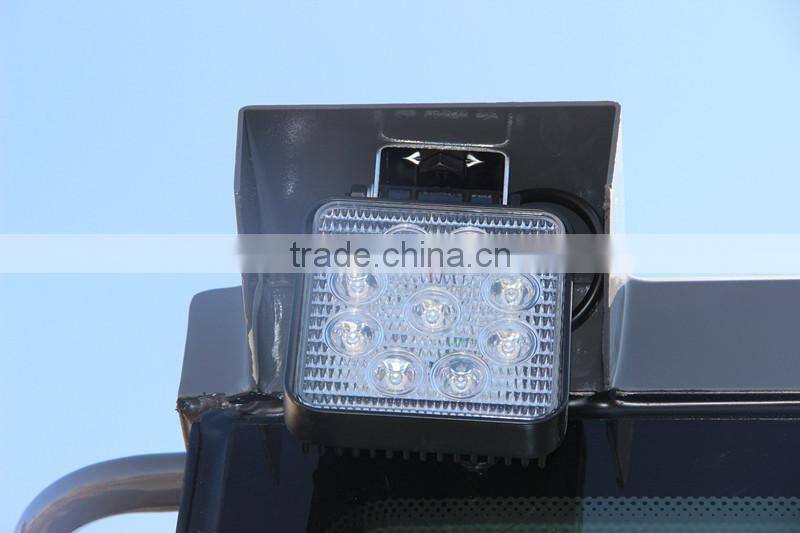

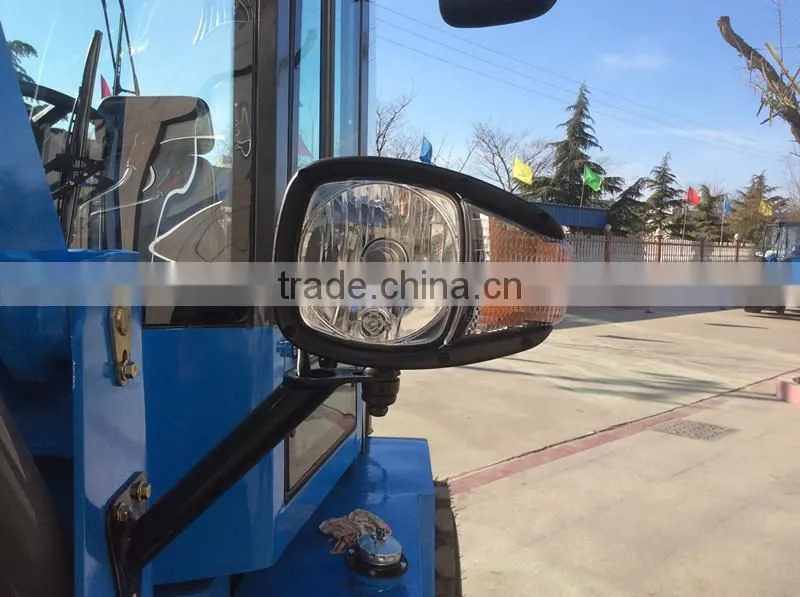

| LED Light |
| European E4 Light |
