Win Tone oil press machine working principle:

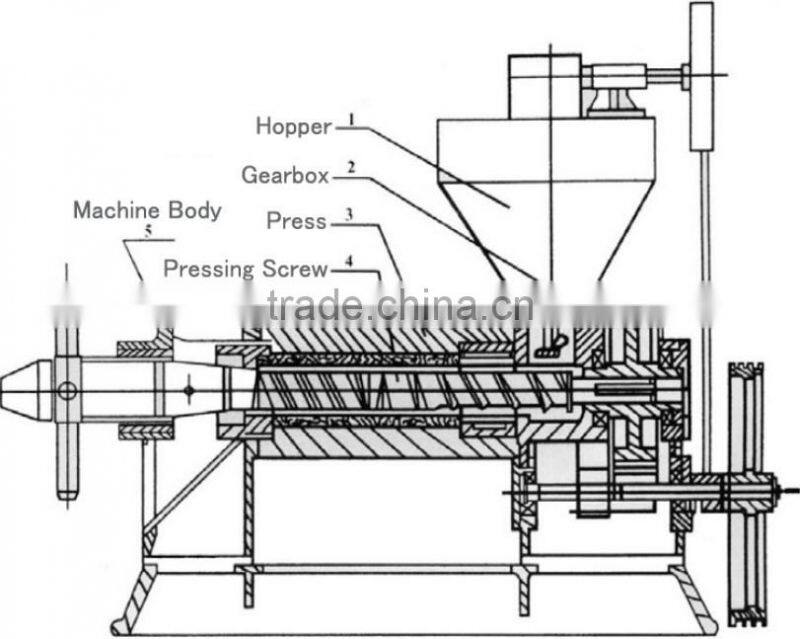

Screw type oil mill machinery is mainly composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc. Pressing chamber is the key part of the machinery which including pressing cage and a screw shaft rotating in the cage. You can also equip the expeller with motor, diesel engine,or electrical control cabinet as you like. An electric cabinet can help control the whole working procedure.

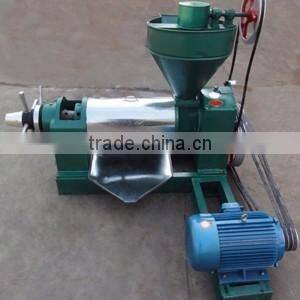

Single oil press machine

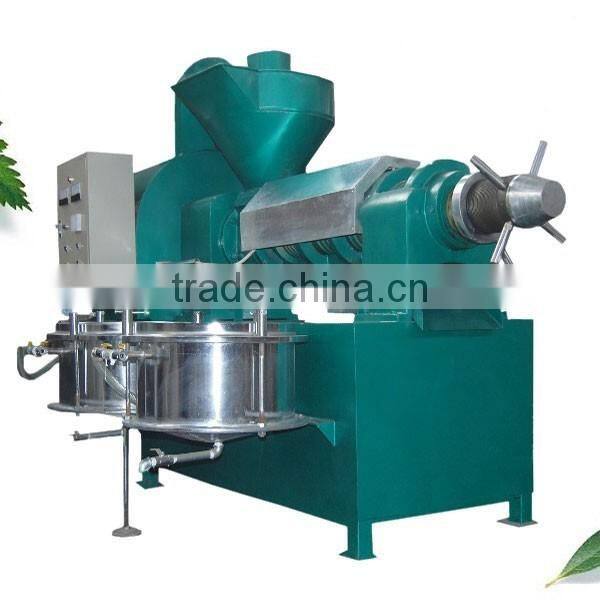

Automatic oil press machine
Win Tone oil press machine fethures:
- Saving labor : It can save 60% labor for equal output and 40% labor cost per day for one or two people are able to make production.
- Widely-used: The oil mill machine can be used to completely press more than 20 kinds of crops such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by three stages pressing, low residual oil ratio.

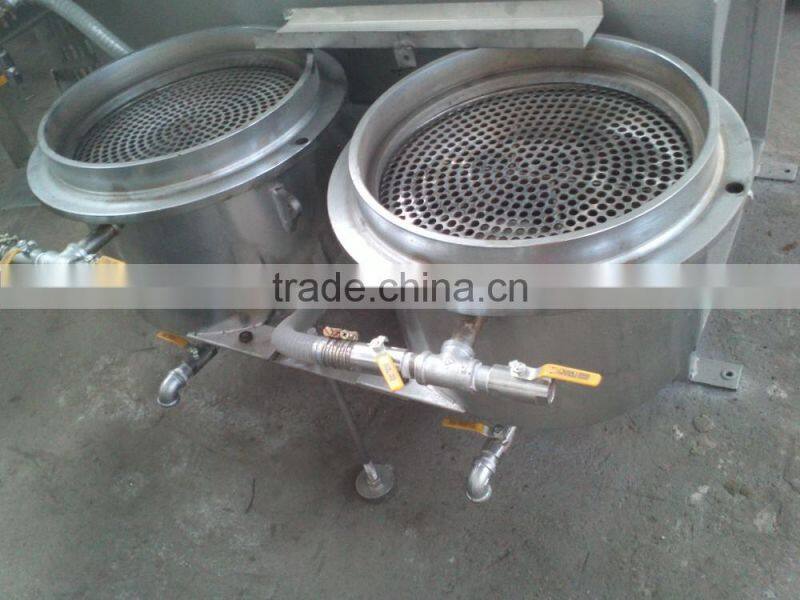

- Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine.
- Small land-using: Only 10~20 m2 workshop area can meet the demands of oil processing.
Technical data of Win Tone oil press machine:
Model |
6YL-100 |
6YL-120 |
6YL-130 |
6YL-160 |
Screw speed |
30-40 r/min |
30-40 r/min |
28-40 r/min |
28-40 r/min |
gear ratio |
15/40x15/55=1:9.78 |
15/34x15/55=1:9.59 |
15/38x19/48=1:7.38 |
15/38x15/52=1:8.78 |
Dimension |
1950x1300x1900 |
2050x1350x2000 |
2200x1600x2150 |
2500x1600x2500 |
Productivity |
150-250kg/h |
200-300kg/h |
250-400kg/h |
400-600kg/h |
power |
Y160M-6-7.5KW |
Y160L-6-11KW |
Y180L-6-15KW |
Y200L-6-18.5KW |
vacuum pump |
Y90S-4-1.1KW |
Y100L1-4-1.5KW |
Y100L1-4-2.2KW |
Y100L1-4-2.2KW |
heater |
3KW |
3.3KW |
3.8KW |
4KW |
Application of Win Tone oil press machine:

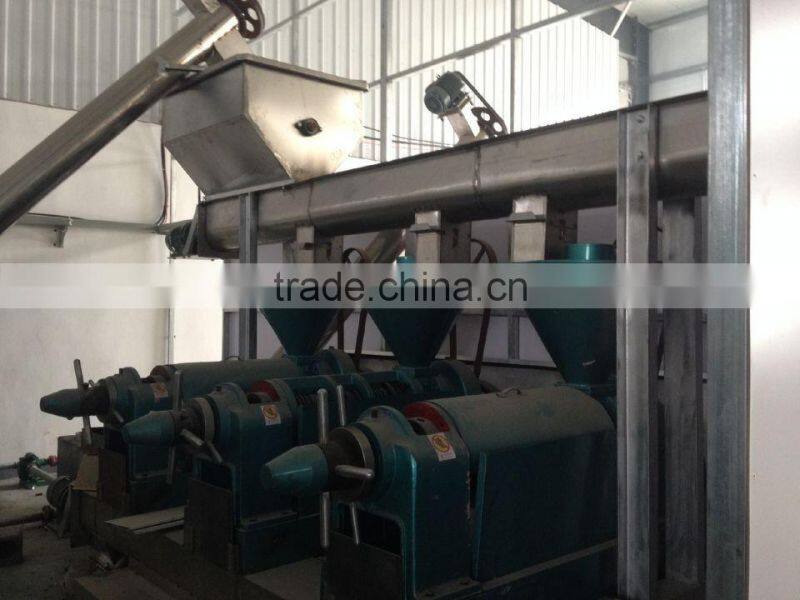

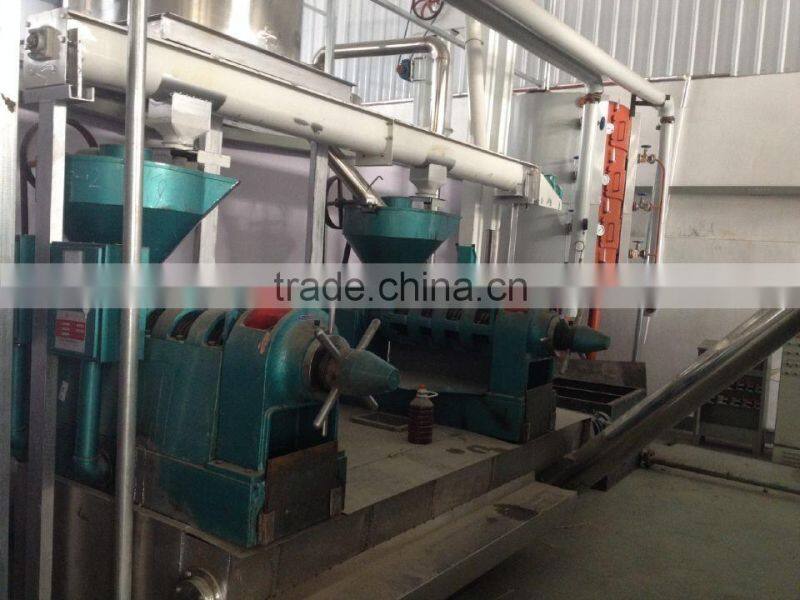

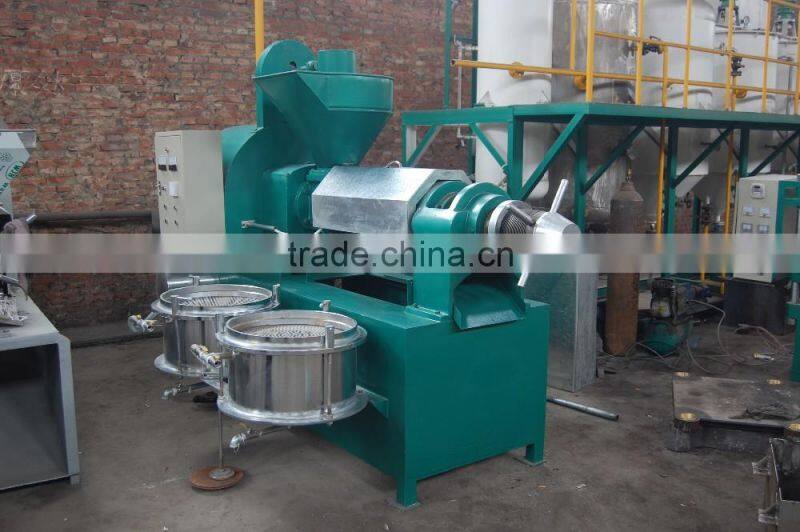

Win Tone oil press machine in workshop

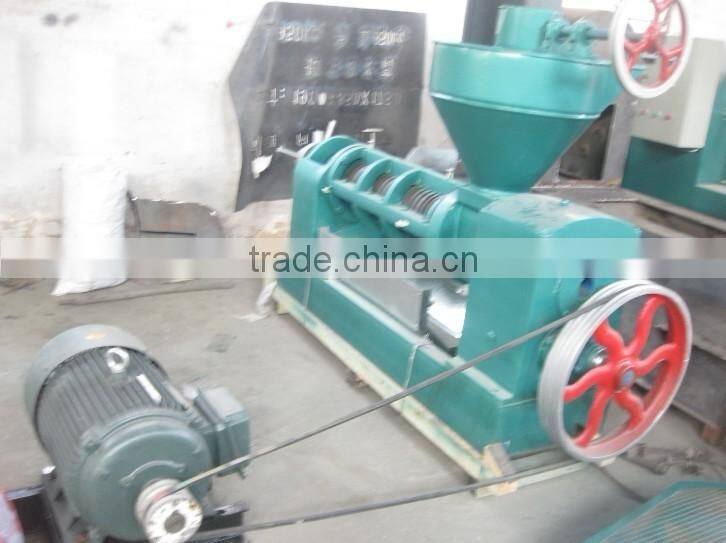

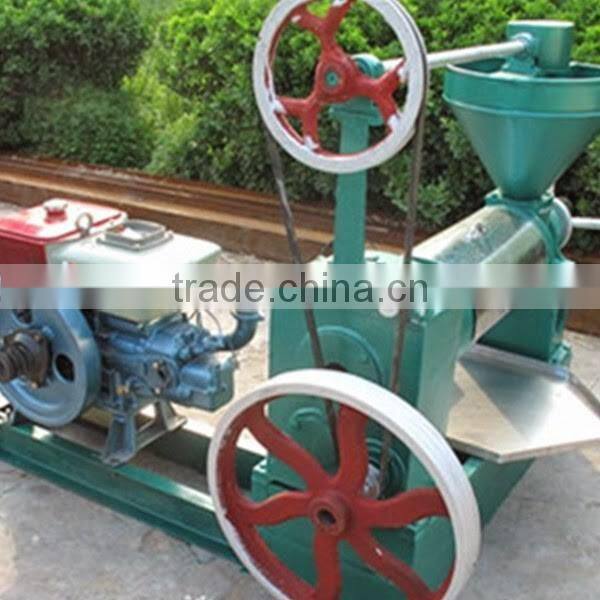

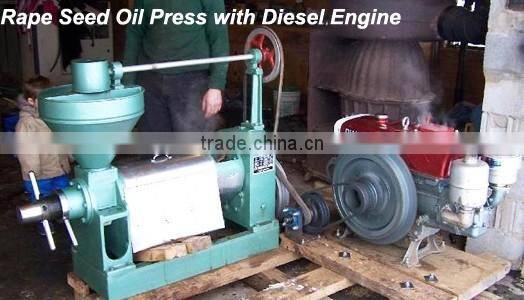

Diesel and electric oil press machine:

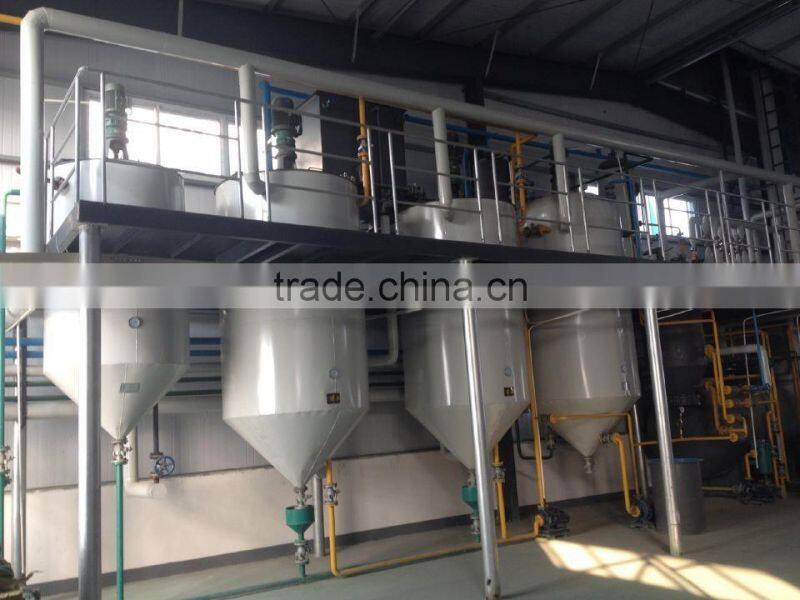

Win Tone oil press machine in site:
Package:
