PAY-AS-YOU-GO solar system 10W
It provides solar energy to people living off-grid who would otherwise rely on candles and kerosene for light at home. When you need it, just like you would purchase credit for your mobile phone. You could buy solar energy by the hour, day, week, month or year. Each solar credit purchase allows the customer to enter a unique code into their solar system to activate it for the time they have bought. It allows customers in rural communities to have clean, safe and reliable electricity in their homes without any financial worry or risk.
Main Functions:
Integrated Pay As You Go function
Built-in charge controller & solar battery
LCD display screen, easy to operate
3 x 12V DC outputs to light your LED lamps
5V USB output to charge your mobile phone
Portable & light, easy to install and maintain
Specifications:
| Model | ISS10-7P | ||
| System Specification: | |||
| DC Output Voltage | DC 12V(3PCS) & 5V(1PC) | ||
| DC Output Current | DC 12V 7A | ||
| Solar Panel | 18V 10W with 8m cables | ||
| Charging Time (efficiency sunlight) | 5.5 hours | ||
| Lead Acid Battery | 12V 7Ah | ||
| PAYG Function | Yes(Get the ID number from Dealer after charging money) | ||
| Overload Protection | Yes | ||
| Under-voltage Protection | Yes | ||
| Overcharge Protection | Yes | ||
| Short-circuit Protection | Yes | ||

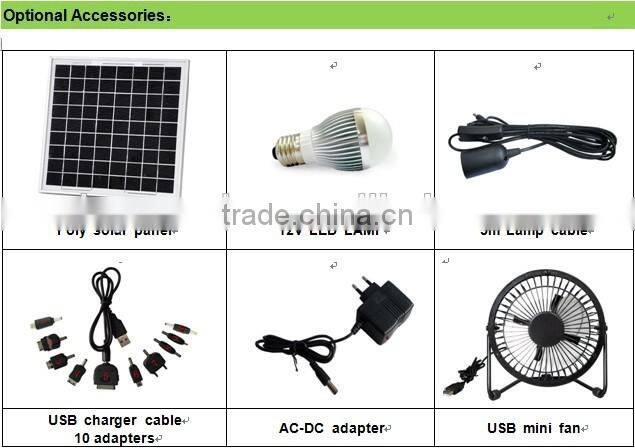

| Accessories (Optional) | DC12V 2/3/5W LED light | ||
| 5m or 10m light cables | |||
| 5V 500mA USB charge cable for charging mobile phones | |||
| AC-DC adapter (Universal British European American Australian South Africa types) | |||
| 4” 2.5W USB DC mini fan | |||
| Mechanical Data: | |||
| System Box(mm) | L250*W130*H215 | ||
| System Box(kg) | 4.25kgs | ||
| Appearance Color | White + Green | ||
| Solar Panel (mm) | L355*W285*H17 | ||
| Solar Panel (kg) | 1.20kgs | ||
| Battery (mm) | L150*W65*H95 | ||
| Battery (kg) | 2.0kgs | ||
Loads and use time reference:
Load | Load Power | Duration of single load | Remarks |
2 LED Lights | 3 Watt * 2 | Appr. 10H | Different Location, different charging time. |
3 LED Lights | 3 Watt * 3 | Appr. 6H | |
A mini fan | 2.5 Watt | Appr. 21H | |
All above | 11.5Watts | Appr. 4.5H |
Products guarantee as below:
Main machine guarantee time: 1 year limited warranty (lifetime: more 10years)
Battery guarantee time: 1 year (lifetime: 2-3years)
Solar panel guarantee time: 5 years
OEM/ODM available:
Inyan offers customers different solar systems based on their energy needs. We believes that renewable energy is the best solution for off-grid homes, as it is safer, cleaner and more sustainable than its fossil fuel alternatives.
Tell us the requirements and price range you desire, we will bright you best performance product against your budget.
