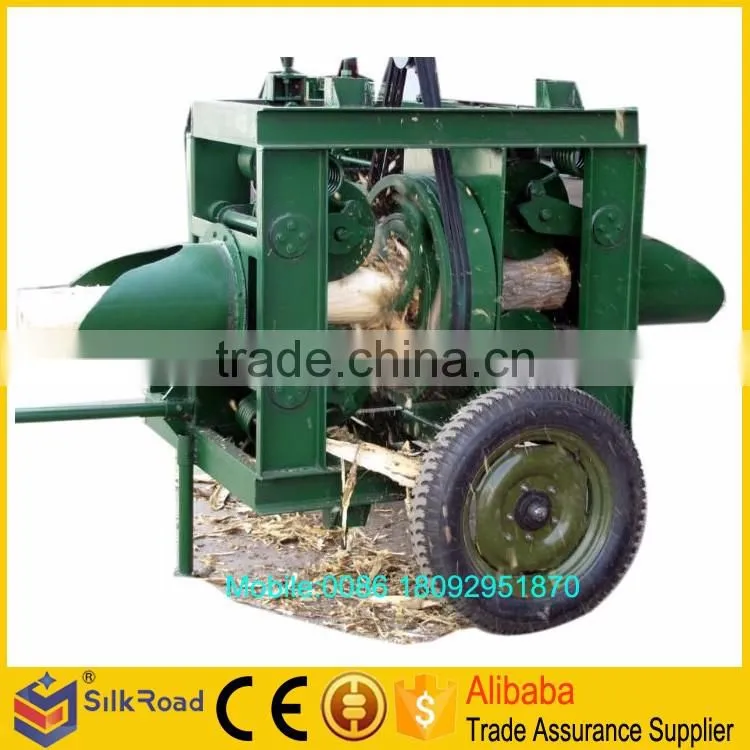

Factory Supply wood log peeling machine
Introduction of wood debarker :
The machine can peel wood,also known as wood peeling machine, belonging to one of wood working machinery products.
1, using four-edge knife, easy to use and low cost.
2, knife plate voltage controlled by the hydraulic control, advanced structure, reliable performance.
3, feed part adopt stepless speed .It has good peeling effect on the cold wood, curved wood, eucalyptus, oak, elm and other tree species has a good hard .
4, peeling the net high, high productivity, little injury for the wood .
5: 2 worker needed
Operation:
a. Using four-edge knife, easy to use and low cost.
b. Knife plate voltage controlled by the hydraulic control, advanced structure, reliable performance.
c. Feed part adopt stepless speed. It has good peeling effect on the cold wood, curved wood, eucalyptus, oak, elm and other tree species has a good hard
e. Peeling the net high productivity, little injury for the wood .
Technical detail of of wood debarker :

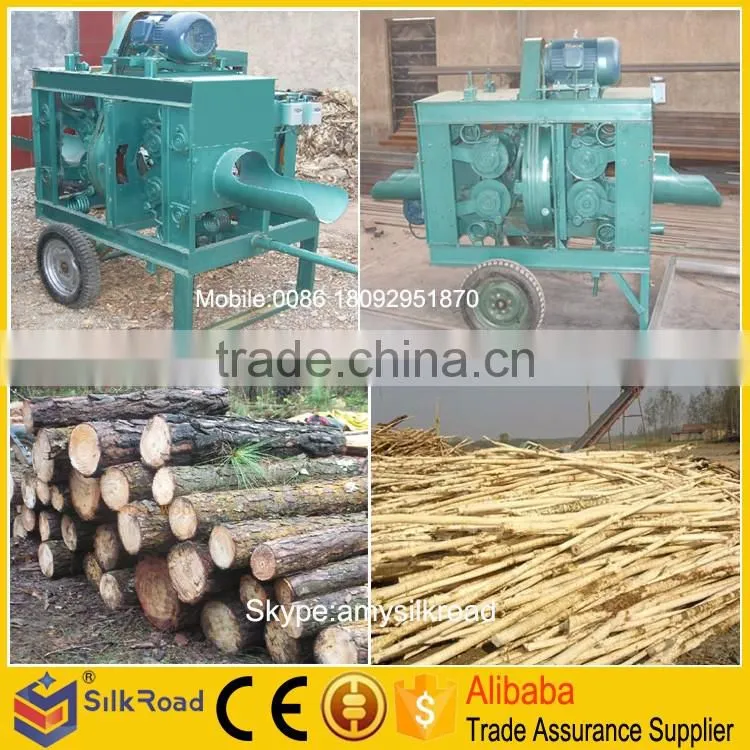

Vertical type:
Parameter:
Model |
SR-220 |
SR-260 |
SR-300 |
|
Max diameter |
40-220mm |
50-260mm |
50-300mm |
|
Knife quantity |
4 pcs |
4 pcs |
4 pcs |
|
Knife roller speed |
590r/min |
590r/min |
590r/min |
|
Working speed |
In summer |
15m/min |
16m/min |
17m/min |
In winter |
6m/min |
6.3m/min |
6.8m/min |
|
Main power |
4.0 kw |
5.5 kw |
5.5 kw |
|
Driving power |
1.5 kw |
1.5 kw |
1.5 kw |
|
Peeling rate |
>95% |
>95% |
>95% |
|
Ring type:
Parameter:
Model |
SR-4-6 |
SR-4-9 |
SR-4-12 |
Capacity(t/h) |
5-10 |
10-15 |
15-25 |
Power(kw) |
11*2 |
15*2 |
20*2 |
Length(mm) |
6300 |
9000 |
12600 |
Width(mm) |
1310 |
1500 |
1500 |
Height(mm) |
1550 |
1700 |
1700 |
Weight(t) |
4 |
5 |
8.5 |
More photos of wood debarker:
