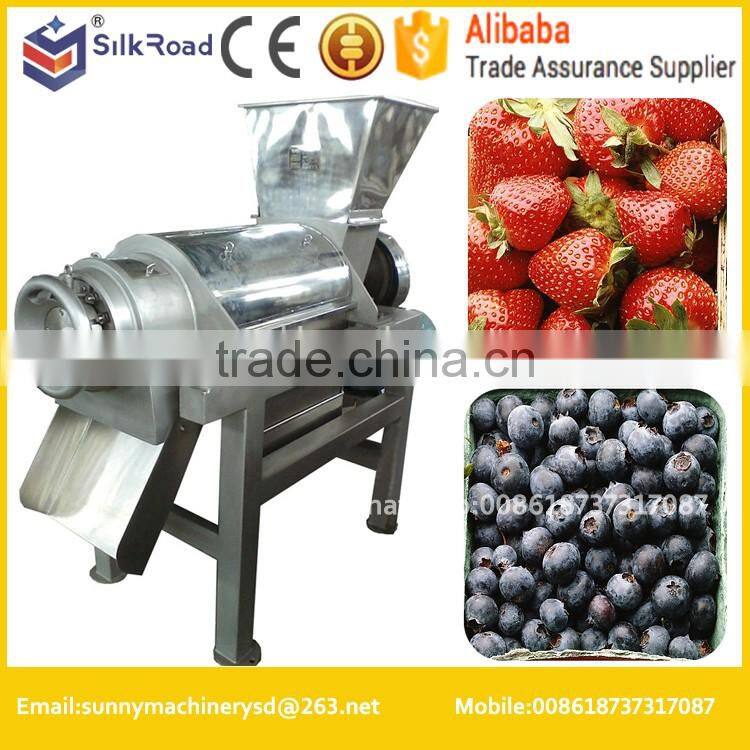

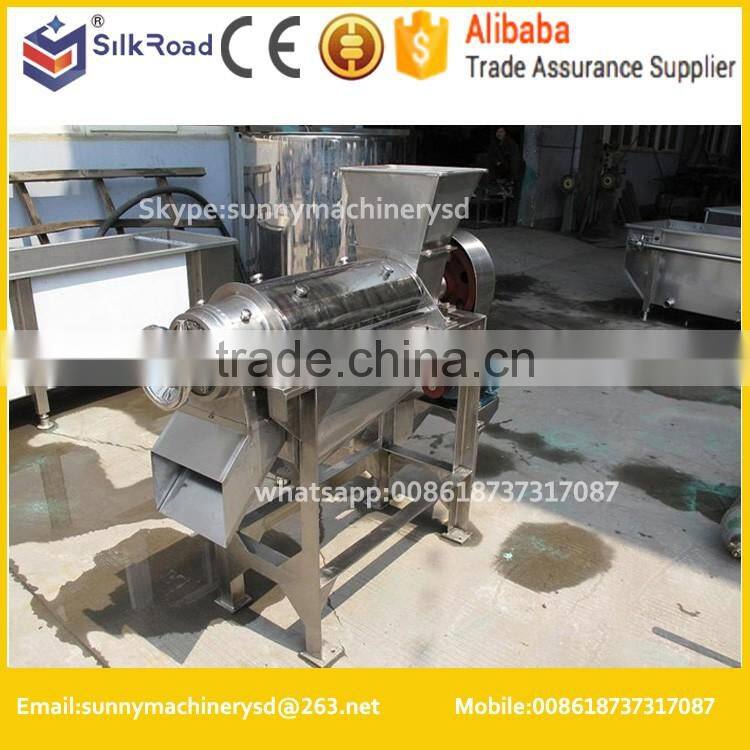

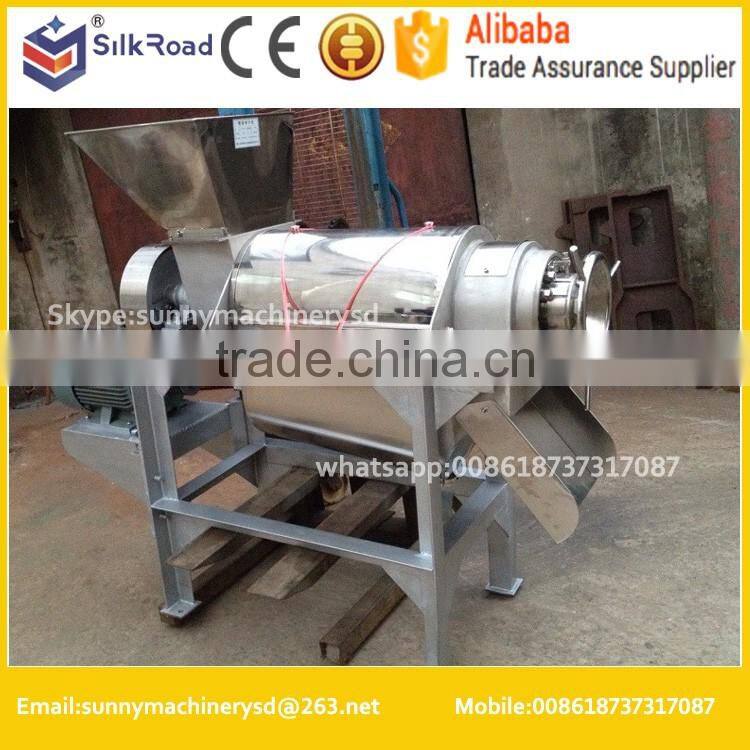

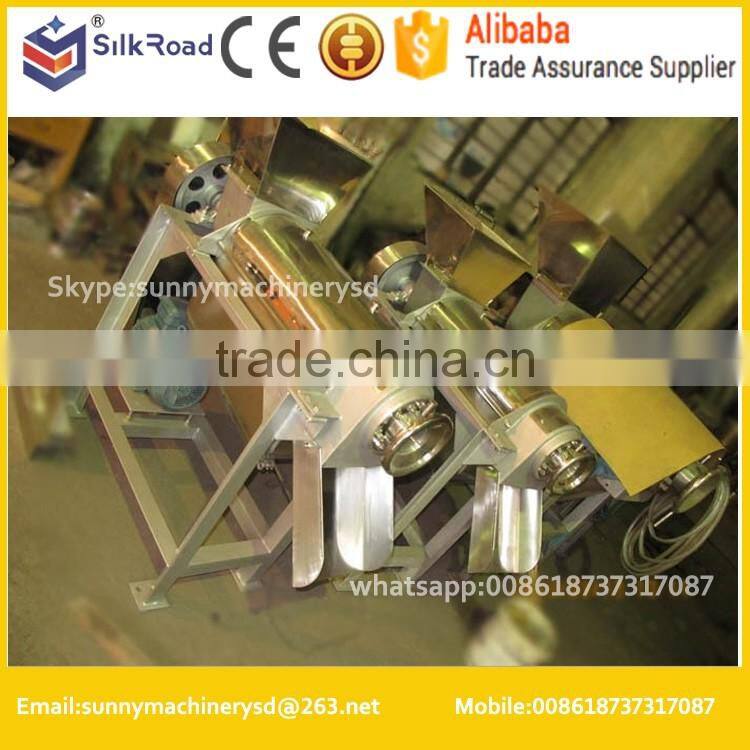

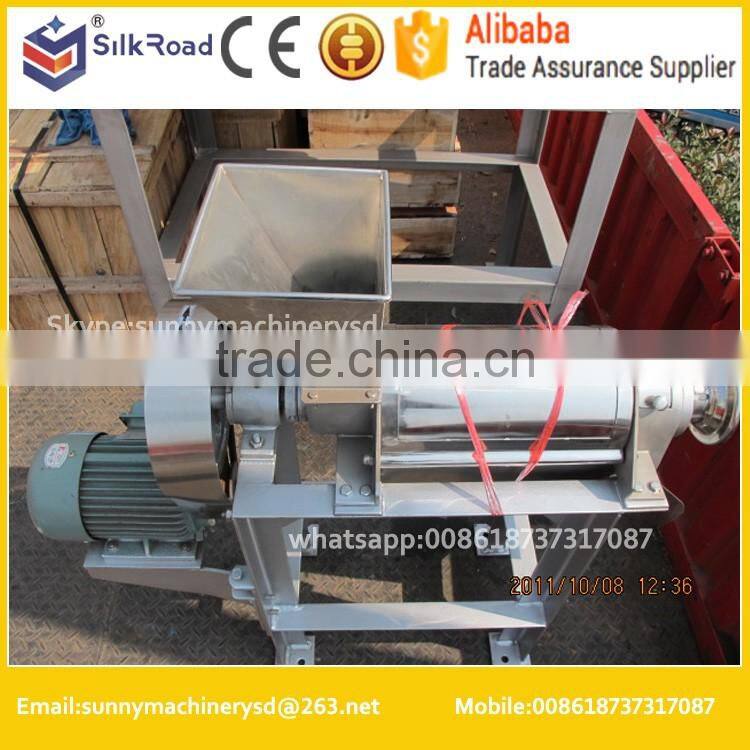

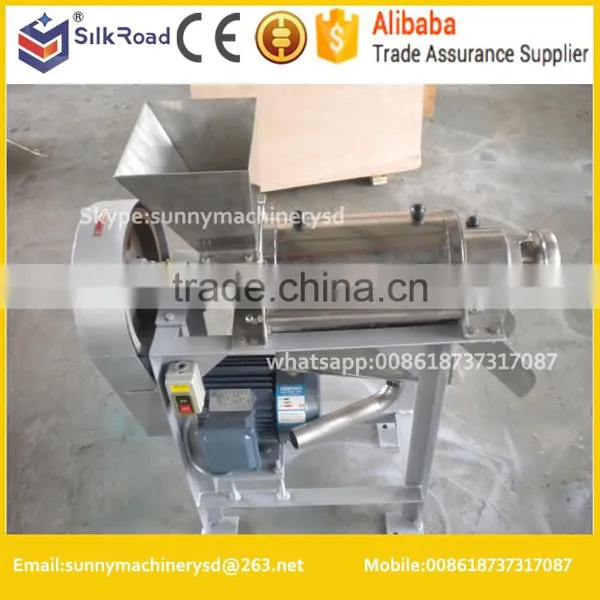

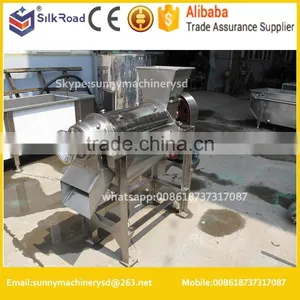

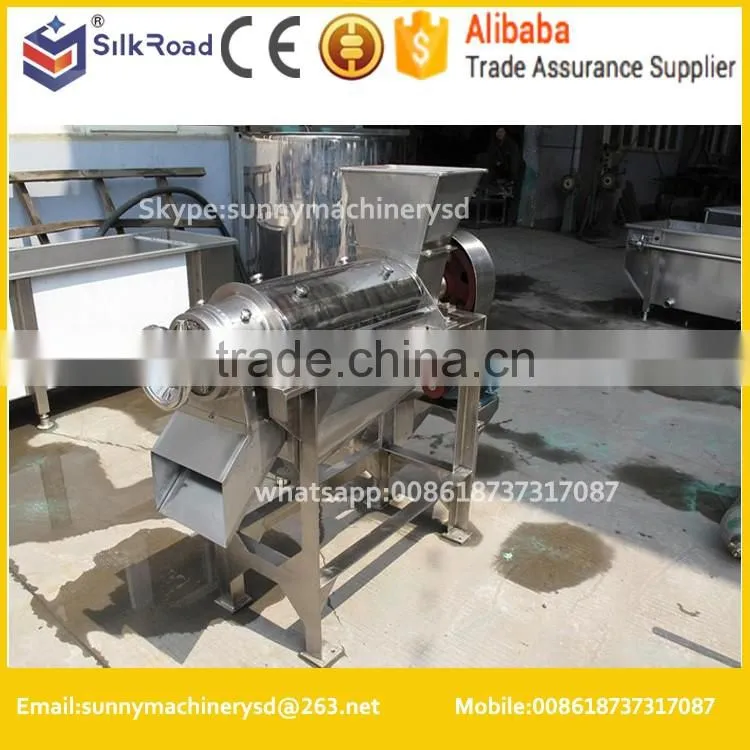

Help CenterIndustrial Electric Fruit Tomato Ginger Juicer Extractor Machine
Related Products
-
Newest Sugarcane Juice Making MachineUS$ 180 - 650MOQ: 1 Set -
Widely Commercial Used Screw Cold Press JuicerUS$ 1,799 - 2,199MOQ: 1 Set
-
Industrial Juicer Extractor Machine With CrusherUS$ 1,799 - 2,199MOQ: 1 Set
-
Hot Sale Industrial Fruit and Vegetable Juicer MachineUS$ 1,799 - 2,199MOQ: 1 Set
-
for Pressing Apples,grape,mango Industrial Cold Press JuicerUS$ 1,799 - 2,199MOQ: 1 Set
industrial fruit juice extractor
contact:sunny
mobile/whatsapp:008618737317087
skype:sunnymachinerysd
wechat:18737317087
Features of fruit crusher and juicer:
1)Screen bore diameter:0.6mm; completely automatic machine;
2)Spiral juice crusher and extractor have function both crushing all different kinds of fruit and extracting juice. Such as tomato, apple, orange, pineapple, spinach,strawberry and so on;
3)The stainless steel fruit crusher and juicer machine material is stainless steel 304 of touching part
working principles of fruit crusher and juicer:
1.The main commercial juicer of this aquipment is spiral,along the material of slag exit to increase gradually and pitch diameter and gradually reduce,when the material is spiral advancing,for a decrease in the size of the spiral cavity,form to material squeezed.spiral spindle rotation direction from hopper to slag slot,dockwise direction.
2.Raw material to join into hopper,in advance of the spiral down under pressure,the aqueeze juice through the screen pack into the bottom of the filled the juice,and waste,through the spiral and pressure regulating cone shaped parts formed between the circular gap eduction,pressure regulation head along the axial movement can adjust the size of the space.ace.
Parameter without crusher:
Model |
Capacity |
Power |
Dimension |
SRJ-0.5 |
0.5T/H |
1.1kw |
1000×320×980mm |
SRJ-1.5 |
1.5T/H |
4.0kw |
1560×450×1340mm |
SRJ-2.5 |
2.5T/H |
11kw |
2200×600×1560mm |
Parameter with crusher:
Model |
Capacity |
Power |
Dimension |
SRCJ-0.5 |
0.1-0.5 t/h |
0.55kw |
1000*320*1110mm |
SRCJ-1.5 |
0.3-1.5 t/h |
4kw |
1560*450*1640mm |
SRCJ-2.5 |
0.6-2.5 t/h |
11kw |
2200*600*1860mm |
SRCJ-5 |
1-5 t/h |
22kw |
3000*1000*2400mm |
We have kinds of fruit and vegetable process machines,if you are interested in it,please feel free to contact with us.
24 hours online service is available!
