zhiyou semi automatic film impulse
sealer heat sealing machine for plastic bag
This series of sealing machine adopts electronic constant temperature control and stepless transmission system, with automatic continuous sealing, printing product label, a complete function. For monolayer film and various composite membrane sealing, bag making, widely used in food, pharmaceutical, seed industry, chemical industry, light industry and other departments.
The main structure and working principle:
1, this machine by the rack, speed reducer, transmission mechanism, heating radiator, seal imprint, conveying equipment, electric and electronic control system components, etc.
2, put through power supply, organizations begin to work. Electric heating element after the electricity heating, make up and down heating blocks are rapidly growing and access control system to adjust to the required temperature; Embossing wheel rotation. According to the need to start the cooling cooling system; Conveyor belt turn, and by adjusting speed regulating device to the desired speed.
3, when loaded with goods packaging placed on the conveyor belt, bag sealing part is automatically sent to the two sealing belt running and to the heating area, heating blocks of heat through the sealing belt transmission to the bag sealing parts, thin film by hot melt soft, again through the cooling area, make the film surface temperature appropriate, and then through the knurled wheel (or printing roller wheel, make the sealing parts and plastic film adhesion and suppress the reticular pattern (or print production date), and then by rubber belt and conveyor belt.
Parameter of the machine:
Model: ZYFR-900
Voltage: 500w-220V/50Hz
Sealing speed: 0-12m/min
Sealing width: 6-12mm
Temperature: 0-300 degree
Transport weight:3kgs
Printing Letters: Steel seal
Weight: 19kg
Dimension: 860*420*365mm

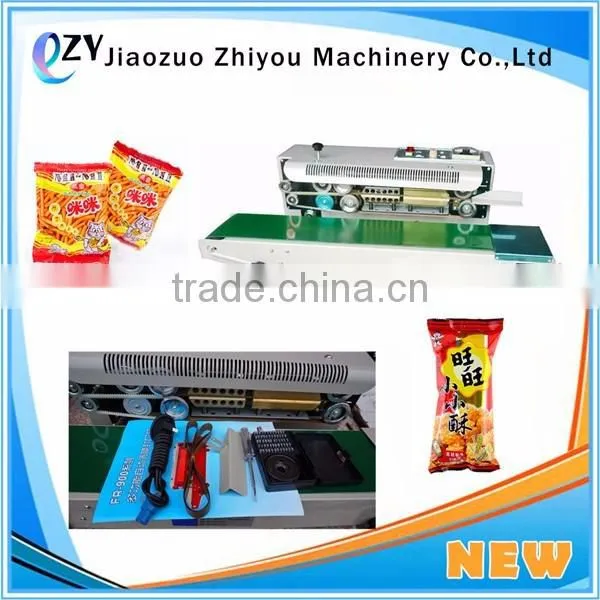

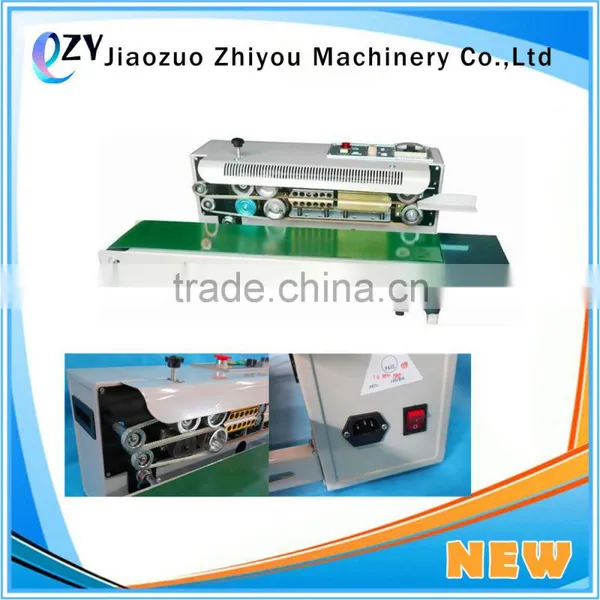

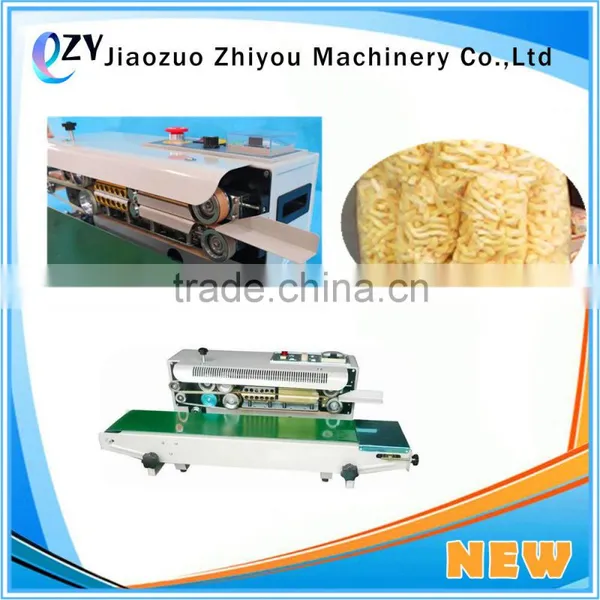

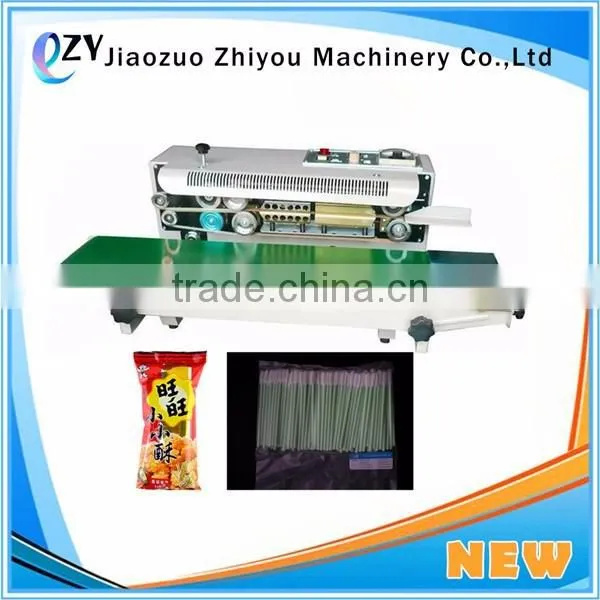

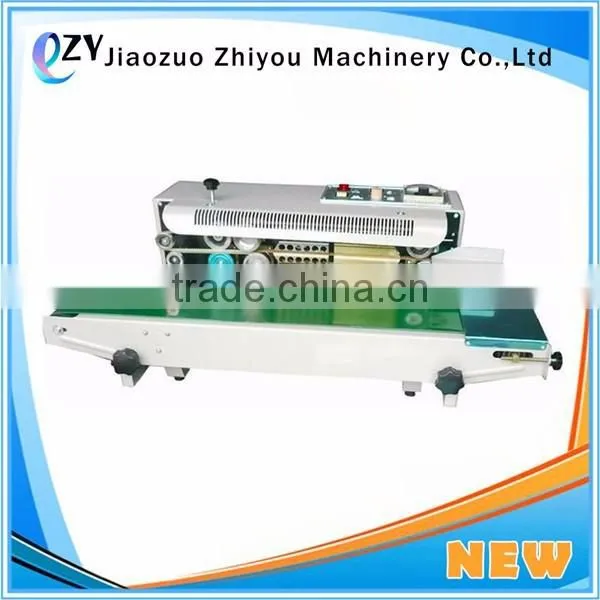

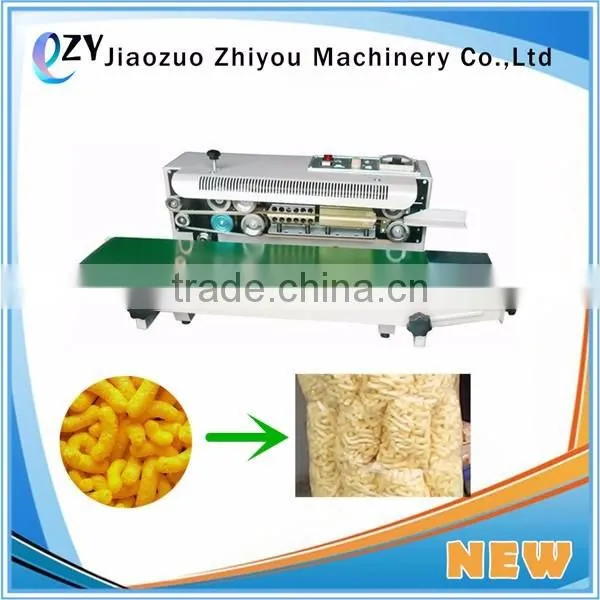

Machine pic FYR:
