Automatic Two - Dimensional Bending Machine

 Automatic two - dimensional bending machine

Description of the machine:

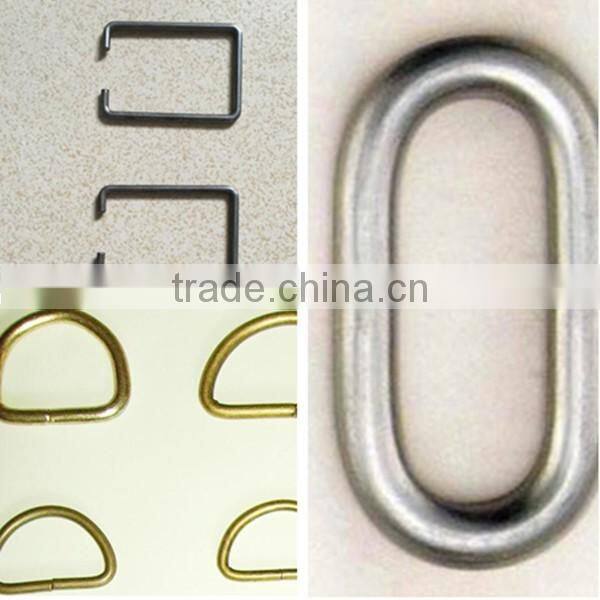

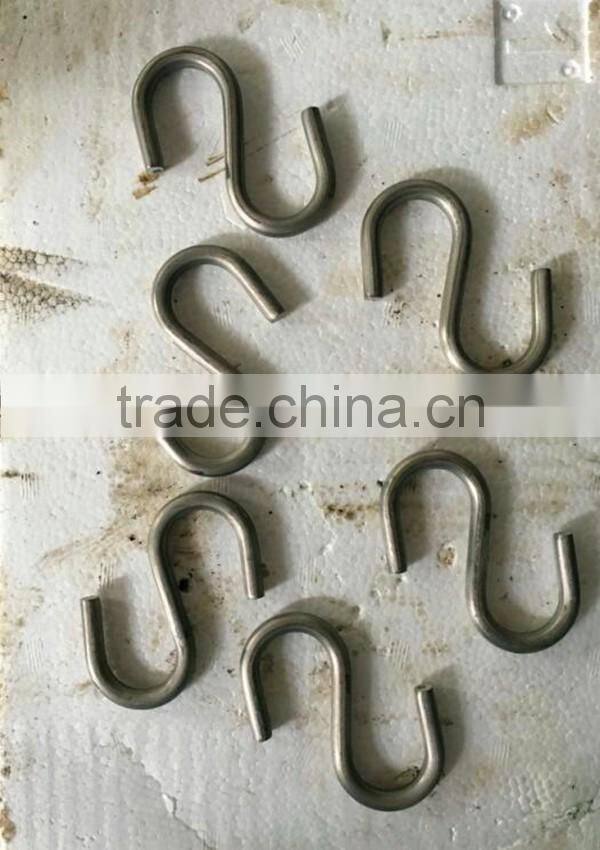

Suitable for wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), playing (bending) side, round, hexagonal, elliptical with irregular shape and a variety of flat buckle, all kinds of hooks.

Working theroy:

Equipment selection Segmented drive control precision stepper motor to send lines, mechanical transmission precision gear connection, always maintain the same precision and delivery line speed; shear cylinder hydraulic station equipped with forced air-cooled radiator, double extension hydraulic system Component life; control system using PLC and text display connection, both convenient operation, but also to ensure the stability of the control system, but also designed to control the production of the number of pre-set machine operation.

Parameter of the machine:

Model:ZYZWJ

Wire diameter range:2.0-6.0mm

Feeding length:as customer set

Bending angle:±0.02°

Maximum bending speed:2-5 turns / sec

Positioning accuracy: ± 0.5 °

Servo motor: 3 * 1kw

Machine weight:1800kg

Machine size:2000*800*1000mm

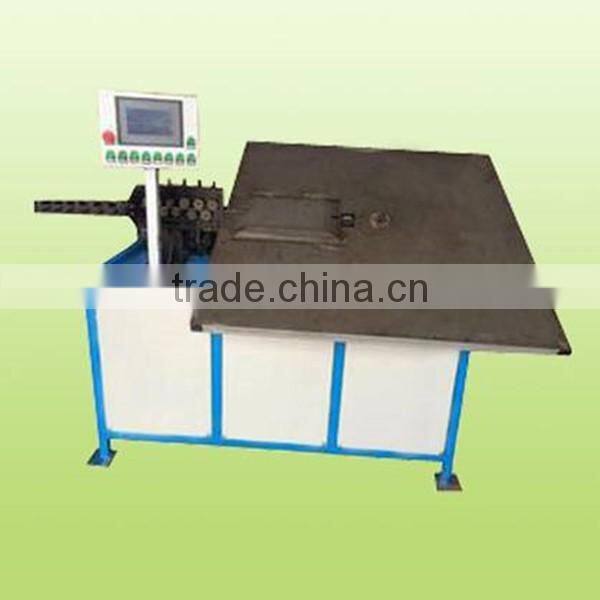

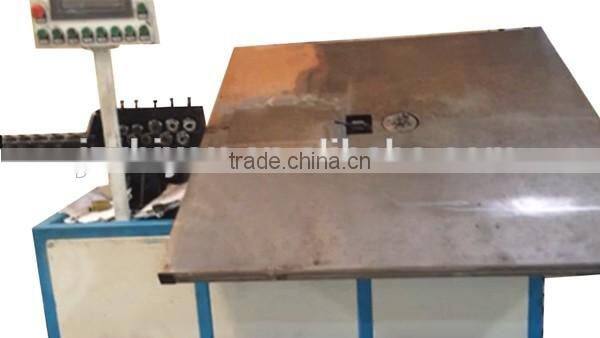

Machine pic FYR:
