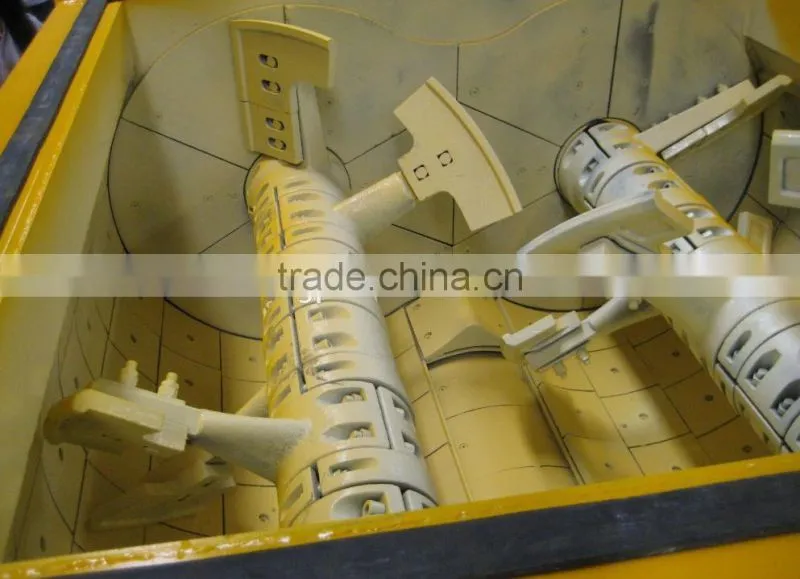

High efficient concrete mixer, KTS twin shafts mixer
Specification:
| Model | KTSB1000 | KTSB1250 | KTSB1500 | KTSA2000 | KTSA2500 | KTSA3000 | KTSA3500 | KTSA4000 | KTSA4500 |
| Charging Volume(L) | 1500 | 1750 | 2250 | 3000 | 3750 | 4500 | 5300 | 6000 | 6750 |
| Discharging Volume(L) | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
| Max of Aggregate(mm) | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 |
| Weight(T) | 5.2 | 5.5 | 5.8 | 7.5 | 8.5 | 9.2 | 9.6 | 12.2 | 12.5 |
| Motor Power(KW) | 18.5x2 | 22x2 | 30x2 | 37x2 | 45x2 | 55x2 | 55x2 | 75x2 | 75x2 |
| Dimension(mm) |
2810x2000 x1920 |
3020x2000 x1920 |
3230x2000 x1920 |
3460x2320 x2140 |
3670x2320 x2140 |
3880x2600 x2200 |
4100x2600 x2200 |
4670x2600 x2200 |
4890x2600 x2200 |
| Mix Time | ≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
≤30 |
Details:
Speed Reducer:
The speed reducer adopts Italy-imported original or home-produced fitting parts,with reliable performance,long service life and low noise.
Shaft-End Seal:
Adopts original-imported parts assembled multi-shaft-end seal in shaft end and avoids cement&mud approaching to shaft end to extend service life of the concrete mixer.
Electric Lubricating Oil Pump:
Supply oil to four shaft end respetively with using four pump cores.It is no need to use flow divider valve but to avoid blocking of the flow divider valve to decrease the workload of maintenance and service.
Discharging Device:
Hydralic discharging system,with strong drive force and reliable discharging.Discharging door can be opened at any angle,with manual discharging function.The discharging door adopts detachable structure which is convenient for maintenance.
It can be put in container.Save transport fees,easy for transportation.
Service
1.Technical files service provided
2.On-site training service provided.
3.Spare parts replacement and repair service provided
4.Our Products can be customized according to clients' different requirement.
5.Technical support online service provided.
After-sale Service
1.May enjoy the life-long service and technical consultation after you buy our products.
2.Training the operator for free.
3.We will dispatch one or two skilled healthy and competent technician to the job site for technical service on-site with a period of 14 days
4.Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
5.Certain quantity stochastic tool will be provided while delivering goods.
6.Within 48 hours service will be available according to different regions after received the telephone.
7.The time of warranty is for a whole year
8.Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
9.Provides the technology advisory service as necessary.
10.Please contact me when you have any problems with the plant.
