Dom factory price mini mobile concrete batching plant
Patent No. ZL201420493942.3
CE Certificate No. EC.1282.0E140523.SDMQS69
| Brief Introduction |

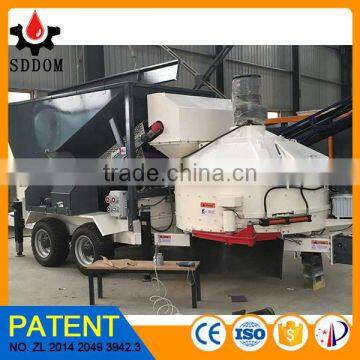

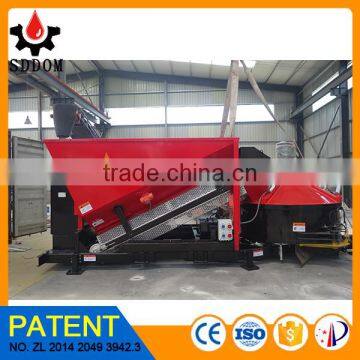

| The mobile concrete batching plant is designed according to Europe CE Standard. It solves the problems of installation, transport and limited working space of traditional concrete batching plant. |

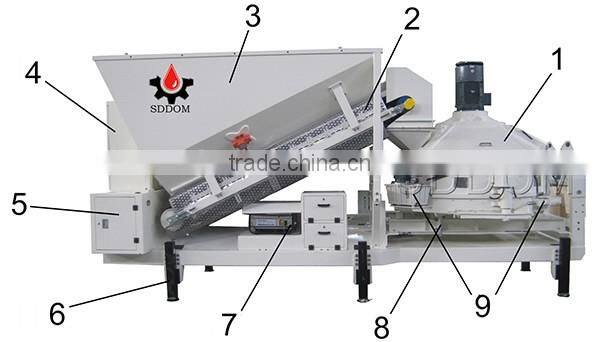

| Technical Parameters |
| No. | Name | Item | |
| 1 | MC1200 | Capacity | 10-17m3/h |
| Transport | one 20 feet container | ||
| 2 | Aggregate batcher | Volume | 7CBM for two units |
| 3 | Aggregate belt | Five layers of nylon | |
| 4 | Cement Weighing | USA Toledo Weighing sensor | |
| 5 | Concrete mixer | Filling volume | 750L / 1200kg |
| 6 | Water/Additive | Europe Grundfos water pump | Stainless pump |
| 7 | Cleaning | High pressure cleaning | |
| 8 | Control cabinet | SIEMENS | |
| Features |
| Container transport, No need of foundation, Changing working site anytime, Working on site, Fully Automatic, Saving cost and protecting the environment. |
| SIEMENS CONTROL CABINET |
1. SIEMENS Touch
2. Selection button of Automatic / Manual
3. Manual control area. There is no need to control them under “Automatic”.
4. Indicator & Alarm Light
5. Emergency stop
6. Power Switch
7. Printer
Different formulas can be save / set up according to requirements.
| USE of concrete batching plant |
| All types of mobile concrete batching plant |
| The mobile concrete batching plant is designed according to Europe Standard, certificated by CE. More models attached in the following form. |
| Model | CBM per hour | Model | CBM per hour | Model | CBM per hour |
| MB1200 | 10-17 | MC1200 | 10-17 | MD1200 | 10-20 |
| MB1500 | 15-25.5 | MC1500 | 15-25.5 | MD1500 | 15-27 |
| MB1800 | 28-35 | MC1800 | 28-35 | MD1800 | 20-36 |
| Complete mobile concrete batching plant |
| Complete mobile concrete batching plant is combined by Cement silo, concrete batching plant and Belt conveyor. There are six types of cement silo waiting for your choice. Customization is acceptable in our factory. |
| Our service |
| Trading Process |
| About US |
| SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation. |
| CUSTOMER VISITING |
| Welcome to Visit our facotry |
Q: How many types of mobile concrete batching plant you have?
Q: Is the belt conveyor necessary?
Q: Can I move the complete concrete batching plant?
Q: How can I supply water / additive? |
