hot sale updated machine ,ready mix precast concreet batching plant
Patent No. ZL201420493942.3
CE Certificate No. EC.1282.0E140523.SDMQS69
| Brief Introduction |
| The mobile concrete batching plant is designed according to Europe CE Standard. It solves the problems of installation, transport and limited working space of traditional concrete batching plant. |
| Technical Parameters |
| No. | Name | Item | |
| 1 | MC1200 | Capacity | 10-17m3/h |
| Transport | one 20 feet container | ||
| 2 | Aggregate batcher | Volume | 7CBM for two units |
| 3 | Aggregate belt | Five layers of nylon | |
| 4 | Cement Weighing | USA Toledo Weighing sensor | |
| 5 | Concrete mixer | Filling volume | 750L / 1200kg |
| 6 | Water/Additive | Europe Grundfos water pump | Stainless pump |
| 7 | Cleaning | High pressure cleaning | |
| 8 | Control cabinet | SIEMENS | |
| Features |
| Container transport, No need of foundation, Changing working site anytime, Working on site, Fully Automatic, Saving cost and protecting the environment. |
| Advantage |

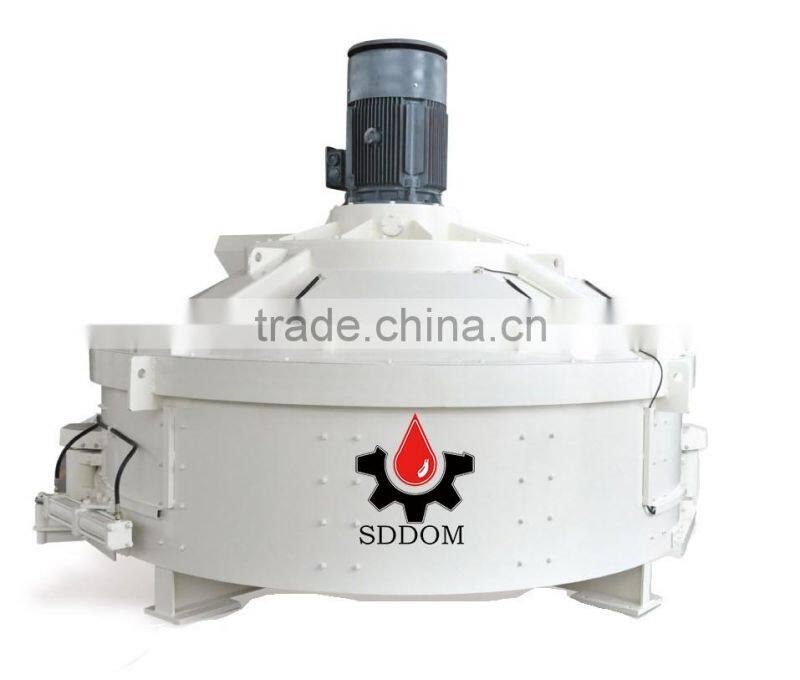

1.the mixer use planetary mixer ,the materials are forced to a smooth and continuous motion track in the mixng through.
|

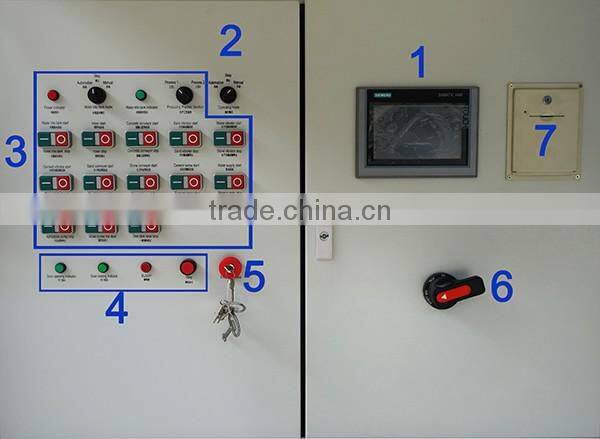

2,SIEMENS PC+PLC
1. SIEMENS Touch
2. Selection button of Automatic / Manual
3. Manual control area. There is no need to control them under “Automatic”.
4. Indicator & Alarm Light
5. Emergency stop
6. Power Switch
7. Printer
Different formulas can be save / set up according to requirements.

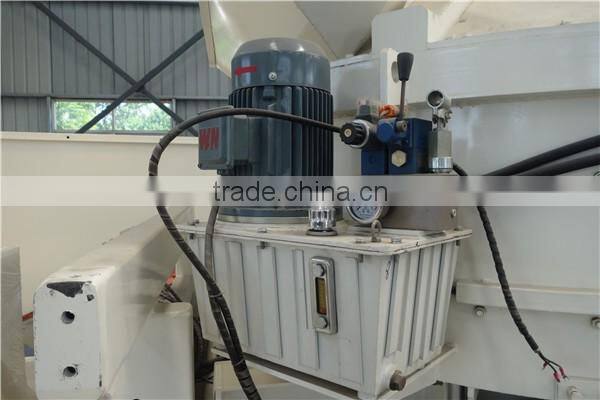

3..the thdraylic power unit :specially design to meet the requirement for more discharging gates ,and
manual .unloading device in case of emergency is installed ,you can manually open the discharg

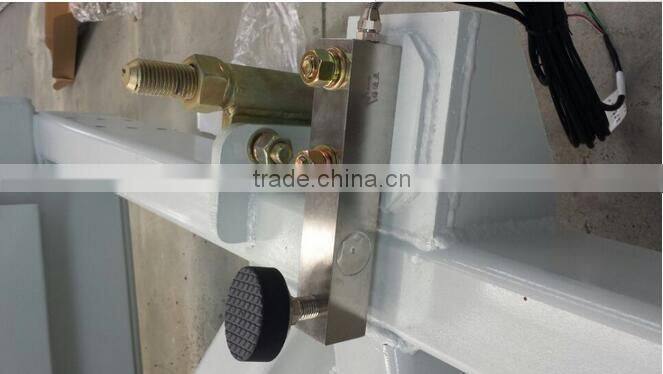

4.Amcel weighting sensor

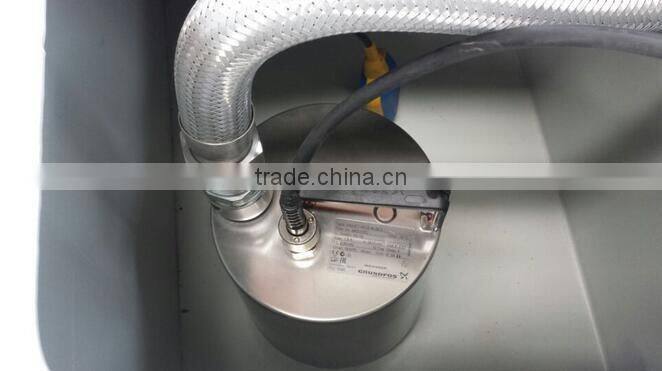

5.Grunds water pump

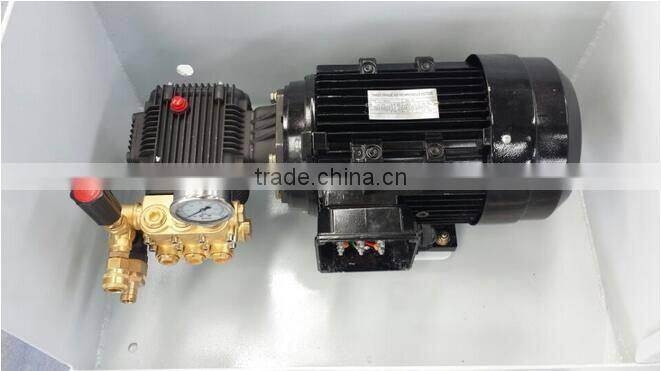

6.high cleaning system : it can clean the hole plant

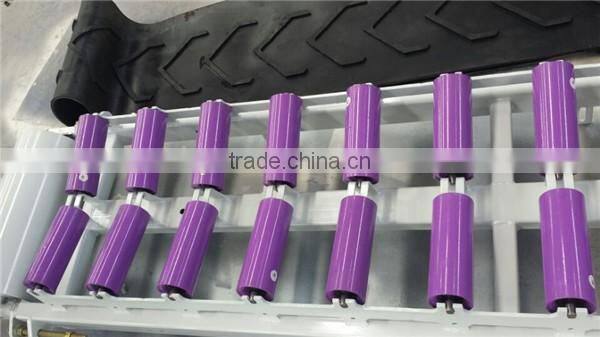

7.Roller is Macormolecules(Anti-Rust)
| Application |
The mobile concrete batching plant can be applied in Ceramic industry ,glass industry,concrerte industry ,can product concrete(concrete hollow block,decorated wall,cement block,permeable block,lawn block,concrete pipes ,running piping,building precastings,motar board and so on ),function refractory(specifical refractory,unshaped fractory materials),ceramics,glass.
|
| USE of concrete batching plant |
| All types of mobile concrete batching plant |
| The mobile concrete batching plant is designed according to Europe Standard, certificated by CE. More models attached in the following form. |
| Model | CBM per hour | Model | CBM per hour | Model | CBM per hour |
| MB1200 | 10-17 | MC1200 | 10-17 | MD1200 | 10-20 |
| MB1500 | 15-25.5 | MC1500 | 15-25.5 | MD1500 | 15-27 |
| MB1800 | 28-35 | MC1800 | 28-35 | MD1800 | 20-36 |
| Complete mobile concrete batching plant |

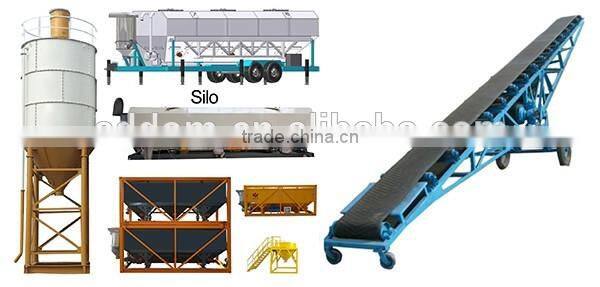

| Complete mobile concrete batching plant is combined by Cement silo, concrete batching plant and Belt conveyor. There are six types of cement silo waiting for your choice. Customization is acceptable in our factory. |
| Company information |
SDDOM Machinery is the most innovative concrete machinery company. Mobile and Stationary Concrete batching plant, Bolted and Horizontal Silo, Planetary and Twin Shafts mixer and other more than 10 kinds of products are certificated by CE or get patent. Every step of Every equipment will be signed and checked from design, drawing, production, test to delivery. All the processing steps are meeting the requirements of Europe CE. More and more clients around the world come to visit our factory every month. Australia, Sweden, Denmark, France, Saudi Arabia, Kuwait, Indonesia, South Africa, USA, Brazil. Welcome friends from all over the world to visit us! Powerful Overseas Engineers Service team will provide you with professional technical support.
|
| Cotact US |
