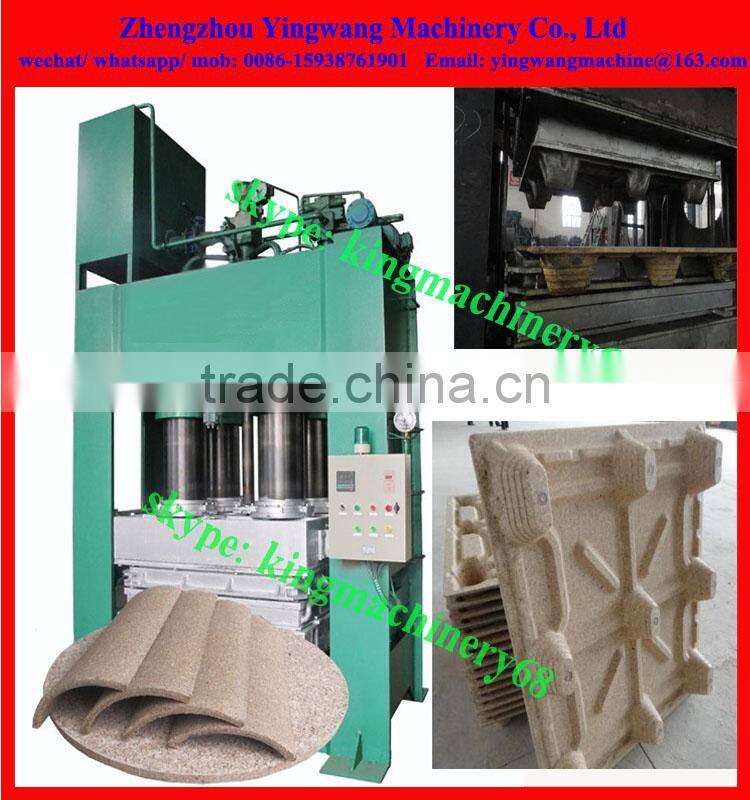

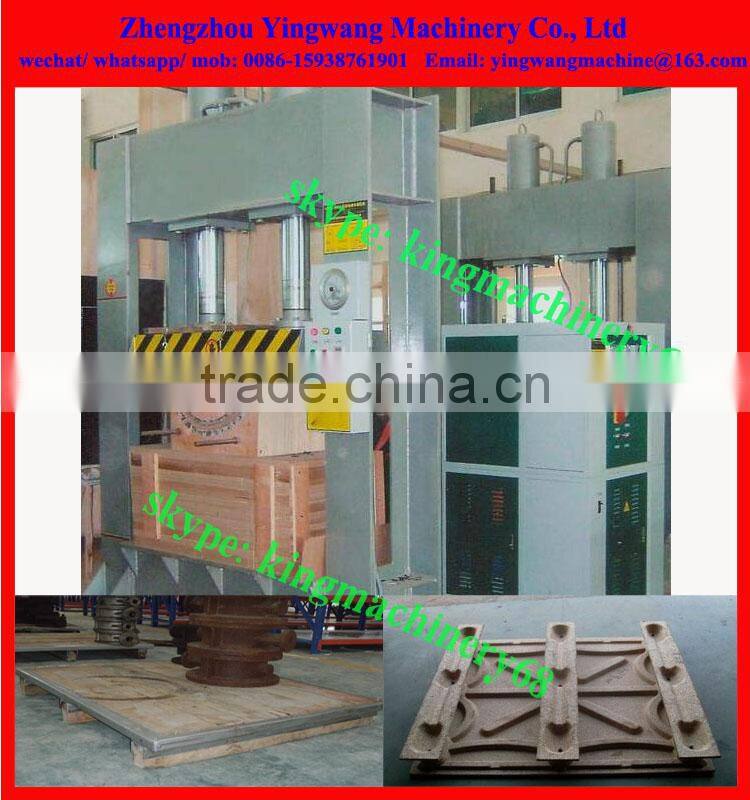

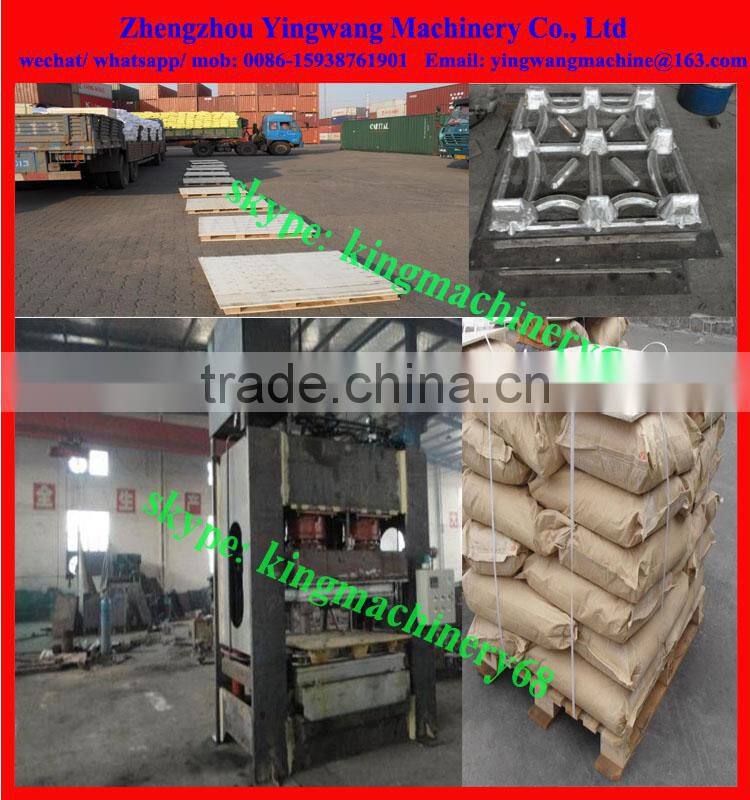

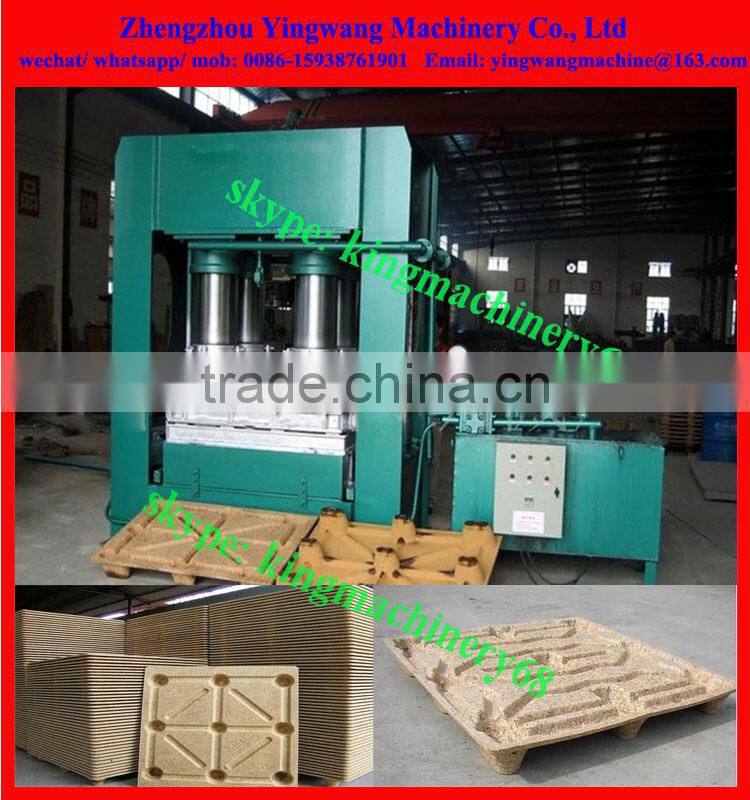

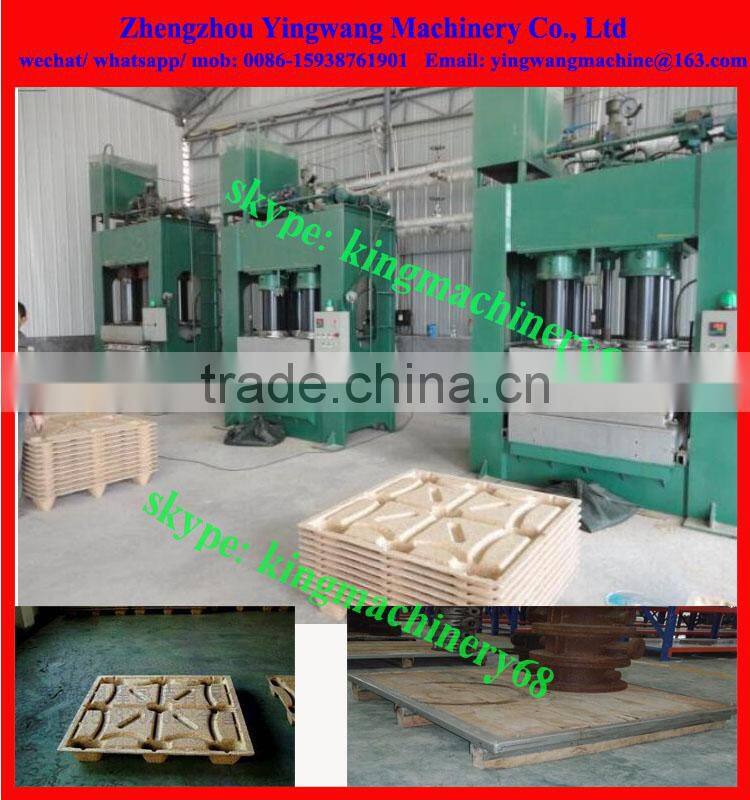

wooden mould pressing pallet machine
1.Introduce of the product line
One-time molding mold tray is use wood processing industry production and produce a lot of waste wood chip, paring, edge horn waste, etc as the main raw material, through the shattered, dry, add glue mixing, hot pressing, etc and processing molding process the tray (also named card board, to counter).
This product has the following optimal features:
1, high temperature and high pressure a mold, standard size, does not contain the metal parts
2, packaging export commodity when using, fumigation-free from quarantine, avoid the visa
3, optimization design, reasonable structure, and the overall performance
4, conform to the requirements of environmental protection, can degradation
5, waterproof, insect, prevent termites, anti corrosion, not easy to burn
6 and bearing capacity is strong, deformation, can be duplicated
7, all around into a fork, easy to use
8, and stacking store and save space, easy to transport
9, light weight, beautiful appearance
In addition to the above characteristics outside, this product is good to processing properties, is the ideal substitute for wood, and the price is low, the raw material source wide, is the national promotion new environmental protection products.
2.Product line process:
Wood crusher--sawdust dryer--mixer with glue--pallet making(boiler)
3.Pallet specification and production
(1)Pallet size
1200*1000*12-20mm,1200*800*14-20 mm,1100*1100*12-20 mm
(2)Production analysis
Pallet making machine daily production: 144 PCS
One month(30days): 4320 PCS
One year(12 month): 51840 PCS
machine parameters Model |
YWYJ-800 |
Pressure |
800Ton |
Main motor |
7.5kw |
Capacity |
144pcs per day |
Hydraulic oil cylinder diameter |
320 |
Hydraulic oil cylinder quantity |
4 |
Feeding way |
Manual feeding or Automatic feeding |
Heating temperature |
150 degree |
pls feel free to contact me
