Gym chalk making machine 0086 18137122335
This machine is designed in assembly line method. Such as : Supplying water automatically,Electric beating,Grouting . Coming out.
It has changed the manual operations into electric clutch with water cycling.Greatly decreased workers' labor intensity , improved many times of efficiency.
| Chalk making procedure: |
|
1*.Slaked Lime mixer, power on, then fill in the water. The rate for the slaked lime and water is half to half. 2*.The mold should be lubricated enough. And should be lubricated for every cycle 3*. Each model has 80 spaces for the filling, each cycle will be take about 6minutes, 4*. When the filling completed, should be turn off the model make the wet chalk come off from the model, then dry in the sun. 5*. The packing should be completed by handwork. 6*.The shape can be round, rectangle, or star shape. The length of the chalk can be from 75mm-105mm. |
| Features of chalk making machine china |
1.The newly-produced chalk is smooth and nice-looking.
2.Decreased worker's labor intensity, improved many times of efficiency.
3.One pattern can contain 800 pieces of chalks.
4.Chalk types have the round ones, the square ones, the hexagon ones, and so on.
Paramenters of chalk making machine china |
| Model No. | Capacity(pcs/h) | Packing size(mm) | Molds quantity | Weight |
| YW-400-1 | 2000-4000 | 530*380*340 | one | 30kg |
| YW-800-1 | 4000-8000 | 660*480*360 | one | 65kg |
| YW-800-2 | 8000-12000 | 1800*1150*800 | two | 350kg |
| YW-800-4 | 12000-24000 | 1800×1150×800 | four | 450kg |
| YW-800-6 | 24000-32000 | 1800×1150×800 | six | 700kg |

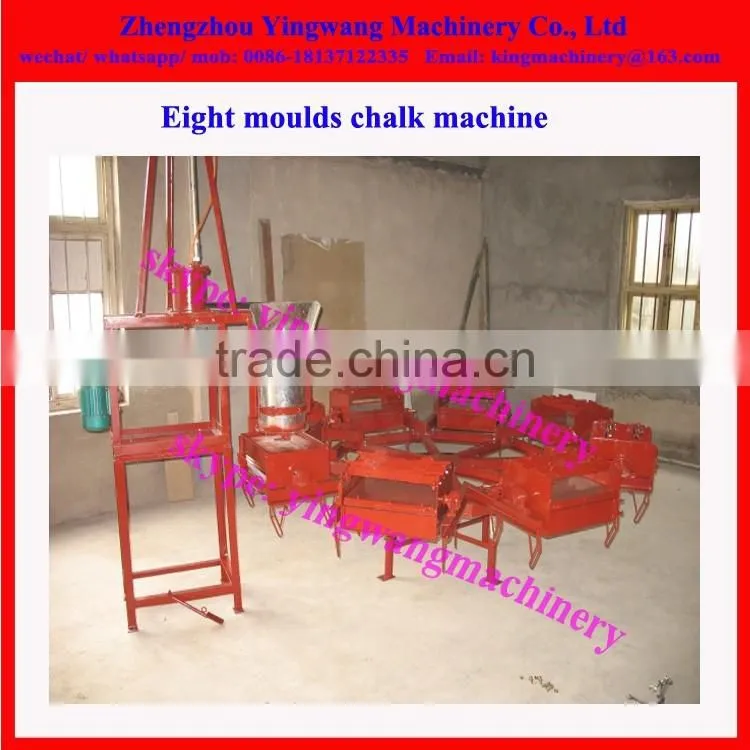

| YW-800-8 | 32000-48000 |
1800×1150×800 | eight |
850kg |
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-18137122335
How to contact us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-18137122335 or send me message on whatsapp with ID +86-18137122335
c, Contact me according to the tools shown below:
