Neweek Vertical Hydraulic Cardboard Bailing Press Machine
- Qingdao Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Commercial Pillow Bag Quantitative Sugar Packing and Sewing Machine
-
Commercial Pillow Bag Quantitative French Fries Packing Machine
-
Factory Use Vertical Quantitative Rice Packing Machine
-
Neweek Packaging Machinery Pop Can Beer Bottle Hot Shrink Wrapping Machine
-
New Design Digital Single Room Sausage Vacuum Packaging Machine
-
Neweek Vertical Semi-automatic Rectangular Fiber Compactor
Product Details
| Condition | New | Application | Other, cloth, wool, waste paper, straw, bottel | |
| Packaging Type | Case, Other, Case, bales | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Hydraulic | |
| Voltage | 110v/220v/240v/380v | Power | 7500 | |
| Place of Origin | Henan, China | Brand Name | Neweek | |
| Model Number | M-20 | Weight | 1000kg | |
| Dimension(L*W*H) | 1.45*0.8*3.1m | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

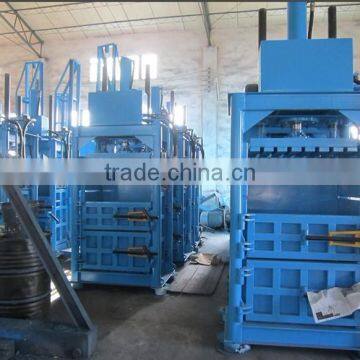

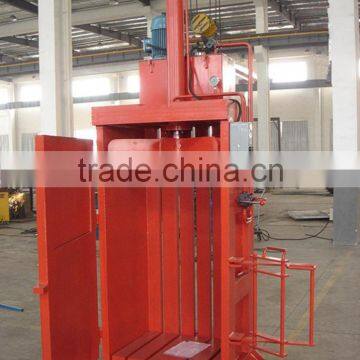

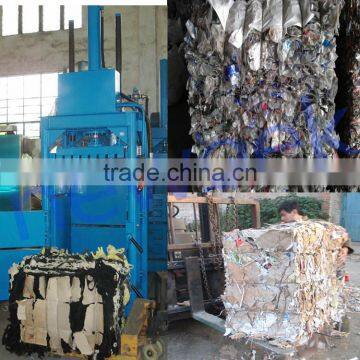

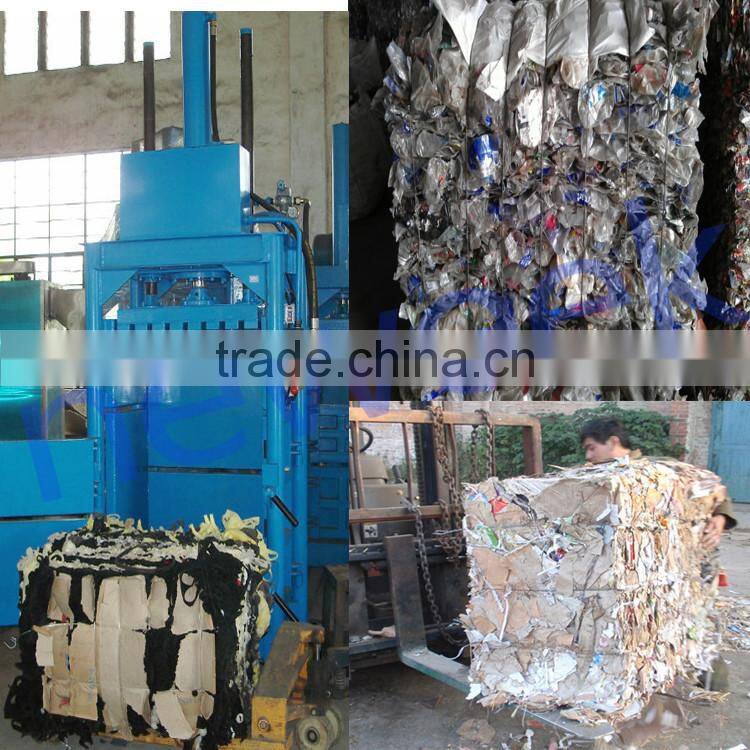

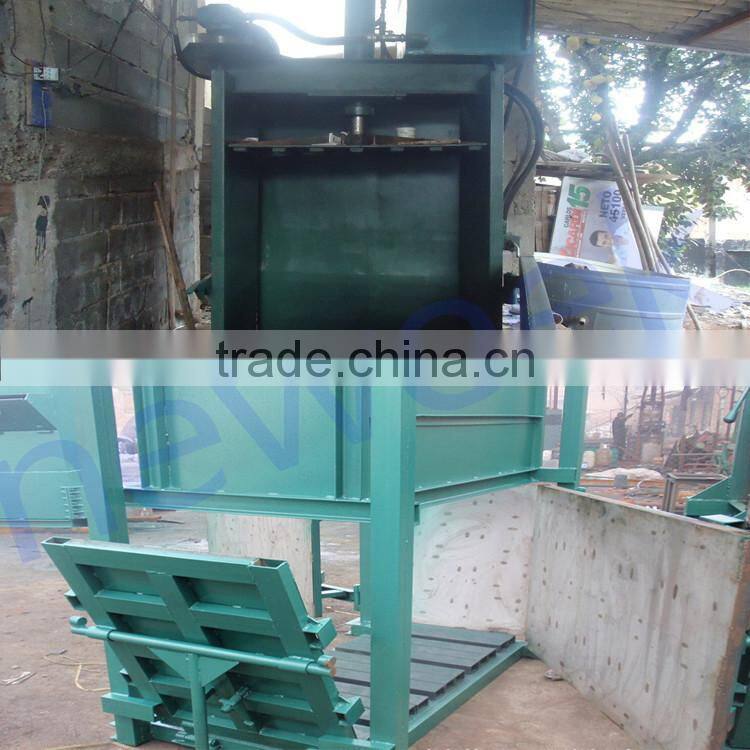

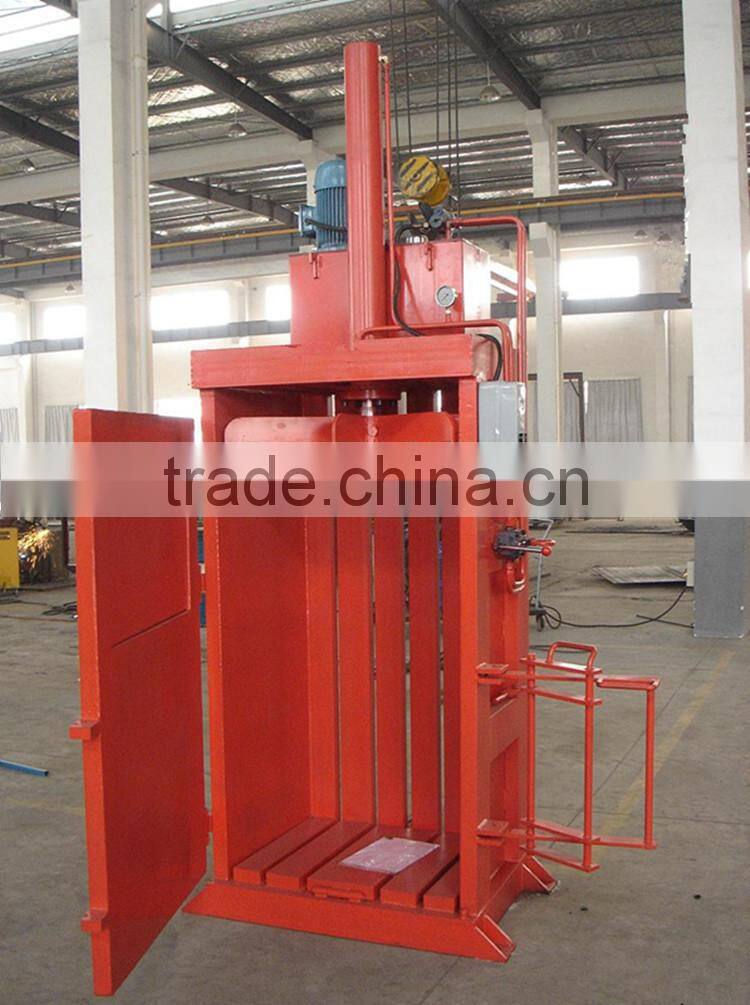

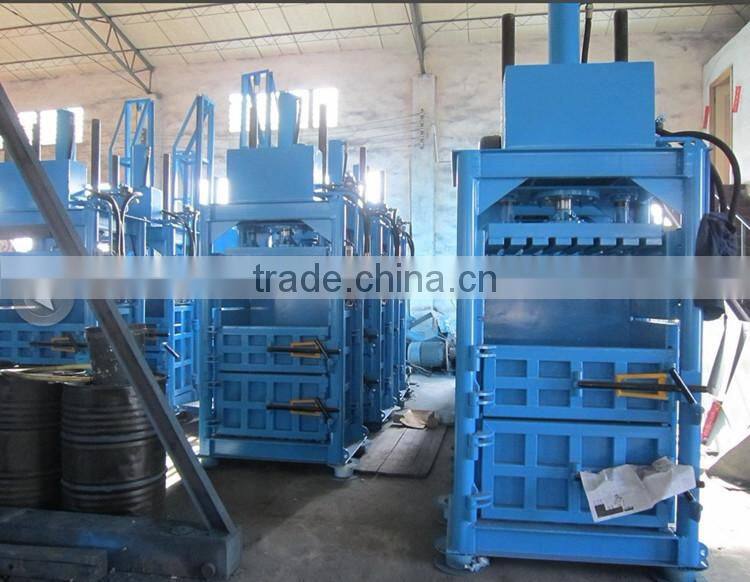

Neweek vertical hydraulic cardboard bailing press machine
1. The cardboard bailing press machine is widely used for packing plastic products, cartons, cotton and clothes. Automatic pulling device is optional.
2. The hydraulic control system of this cardboard bailing press machine is with integrated cartridge valve and reliability, long life, the hydraulic impact of small, reducing the connecting pipe and the leak point. Independent of the electrical control system, work the sensitivity and reliable.
3. Centralized control with buttons, with adjustments, both hands and single-cycle mode of operation. Selected by moving the control panel can be realized given process, the two constant pressure molding process, the working pressure, stroke according to the process within the provisions need to be adjusted.
4. This cardboard bailing press machine has the advantage of reasonable structure, easy operation, hard package, low noise, energy saving and high working efficiency.
Model | M-40 | M-20 |
Bale size | 1200*800*750mm | 1000*600*800mm |
Power | 7.5kw | 7.5kw |
Stroke | 1300mm | 1000mm |
Packing pressure | 40 t | 20t |
Capacity | 6-8 bags | 5-7bags |
Bale weight | 200kg/bag | 150kg/bag |
Cylinder diameter | 140mm | 125mm |
Machine weight | 2100kg | 1000kg |
Dimension | 3.3*1.1*3.8m | 1.45*0.8*3.1m |
