Electric Motor dc 12v With Gearbox for Toys

Name: Electric Motor dc 12v With Gearbox for Toys
Brand: TT Motor
SKU: 139552929
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TT Motor

Model Number:

GM12-N20VA

TT Motor (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TT Motor

Model Number GM12-N20VA

Specifications

electric motor dc 12v with gearbox for toys
1.size:12.0*24.0mm
2.12v 5v 2.4v
3.torque: 1kg.cm max
4.RHOS

electric motor dc 12v with gearbox for toys

GM12-N20VA

2.5mm D shaft,or M3/M4 screw-thread

shaft length can be different

1/3,1/5,1/10,1/20,1/30,1/50,1/63,1/100,1/150,1/210,1/2501/298,1/380 L=9mm 1/1000 L=11mm

working temperature:-40~+60°c
weight:15.0g/pcs
we can provide samples for your test.
rotating speed is constant
Widely used in automatic actuator,electrice lock,Power Lock,Monitor,Precision instrument,Mini mechanism,Robot, Financial apparatus,auto dvd, toys

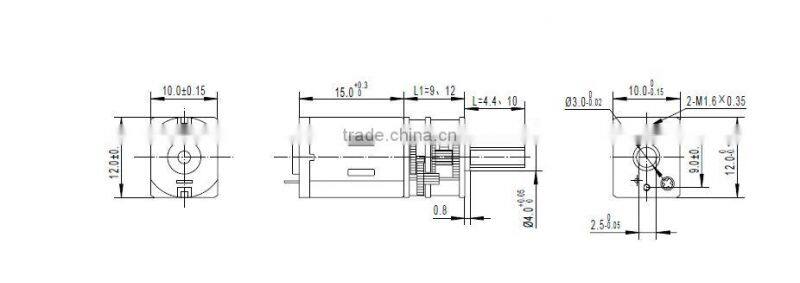

Parameters and dimensions of electric motor dc 12v with gearbox for toys

Gearbox with motor:GM12-N20VA-13110-XXX-2.4V

	Reduction ratio	10	30	50	100	150	210	250	298	380	1000
	Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
	No-load speed rpm	1450	470	285	145	96	69	58	50	38	14.5
Rated speed rpm		1200	400	240	120	80	57	48	40	31	12
	Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
	entary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Gearbox with motor:GM12-N20VA-09220-XXX-5.0V

Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
No-load speed rpm	1450	470	285	145	96	69	58	50	38	14.5
Rated speed rpm	1200	400	240	120	80	57	48	40	31	12
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
entary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Gearbox with motor:GM12-N20VA-05430-XXX-12.0V

Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
No-load speed rpm	1550	530	310	160	110	78	60	55	43	16
Rated speed rpm	1100	400	250	125	83	60	50	42	33	13
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5	1.0
entary tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0
