12v 24v 37mm Gear Motor for EPB Machine

12v 24v 37mm Gear Motor for EPB Machine thumbnail-1
12v 24v 37mm Gear Motor for EPB Machine photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TT MOTOTR
Model Number:
GM37-3530
Contact Supplier Request Quote Chat Now
TT Motor (Shenzhen) Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TT MOTOTR
Model Number GM37-3530
Usage Boat, Car, Electric Bicycle, Home Appliance, Other, Boat, Car, Electric Bicycle, Home Appliance, lock,Robot
Certification ROHS, Other, ROHS, QS9000,TS16949
Type Gear Motor
Torque Max 10kg.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) 4-880rpm
Continuous Current(A) 0.18-0.25A
Output Power 1.4-3.1W
Voltage(V) 12v 24v
Efficiency Other, 75%

Specifications

12v 24v 37mm gear motor for EPB machine
1.Voltage: 12V 24V
2.size:37.0*54.8mm
3.Torque:10kg.cm max
4.RHOS

12v 24v 37mm gear motor for EPB machine

Application

  • Financial apparatus, Ad equipment
  • Accessory of automobile
  • Paper feeder
  • EPB machine

Characters

  • size:37.0*54.8 mm, 54.8 mm length mini gear motor
  • 37mm gear motor provide 1.0Nm torque and more reliable
  • can match encoder,12ppr
  • Reduction Ratio: 6,10,19,30,44,56,90,131,169,270,506,810
  • samples can be sent first and the delivery time is 15-20 days
  • Low noise,low current and no spark

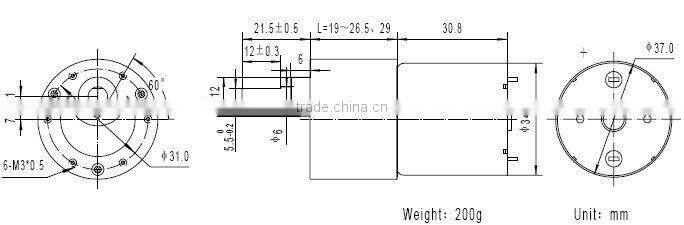

Parameters and dimensions of 12v 24v 37mm gear motor for EPB machine



Gearbox with motor:GM37-3530-1240-XXX-12v

Reduction ratio

6

10

30

44

56

90

169

270

506

810

Length  mm

19

19

21.5

24

24

24

26.5

26.5

29

29

No-load speed    rpm

600

360

120

85

65

45

24

15

8

5

Rated speed     rpm

550

330

110

75

59

36

19

12

6

4

Rated torque     kg.cm

0.2

0.3

0.8

1.1

1.3

2.2

3.7

5.4

10

10

entary

tolerance torque  kg.cm

1.1

1.8

4.6

5.8

7.4

10

15

    15

15

15



Gearbox with motor:GM37-3530-1250-XXX-12v

Reduction ratio

6

10

30

44

56

90

169

270

506

810

Length  mm

19

19

21.5

24

24

24

26.5

26.5

29

29

No-load speed    rpm

800

490

165

110

88

55

30

18

10

6

Rated speed     rpm

670

420

140

95

75

46

25

16

8

5

Rated torque     kg.cm

0.2

0.3

0.8

1.1

1.3

2.2

3.7

5.4

10

10

entary

tolerance torque  kg.cm

1.2

2.0

5.2

6.6

8.4

13.5

15

    15

15

15



Gearbox with motor:GM37-3530-2460-XXX-24v

Reduction ratio

6

10

30

44

56

90

169

270

506

810

Length  mm

19

19

21.5

24

24

24

26.5

26.5

29

29

No-load speed    rpm

950

570

190

130

100

65

35

22

12

7

Rated speed      rpm

880

530

175

120

95

59

31

20

10

7

Rated torque     kg.cm

0.24

0.4

1.1

1.3

1.7

2.7

4.6

6.7

10

10

entary

tolerance torque  kg.cm

1.9

3.2

8.4

10.6

13.4

15

15

15

15

15



12v 24v 37mm gear motor for EPB machine

12v 24v 37mm gear motor for EPB machine

12v 24v 37mm gear motor for EPB machine
