12mm 3v dc Gear Motor With Encoder

12mm 3v dc Gear Motor With Encoder thumbnail-1
12mm 3v dc Gear Motor With Encoder photo-1
US$ 3.5 - 5.2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hong Kong, China
Brand Name:
TT MOTOR
Model Number:
GM12-N20VA
Contact Supplier Request Quote Chat Now
TT Motor (Shenzhen) Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hong Kong, China
Brand Name TT MOTOR
Model Number GM12-N20VA
Usage Other, electrice lock, automatic actuator
Certification ROHS, Other, ROHS, QS9000,TS16949
Type Gear Motor
Torque max 0.55 N.M
Construction Permanent Magnet
Commutation Brush
Protect Feature Other, Open type
Speed(RPM) 10-1000RPM
Continuous Current(A) 0.04
Output Power 0.5 W
Voltage(V) 1.5-12 V
Efficiency Other, 60%

12mm 12v dc gear motor,12mm gear motor,

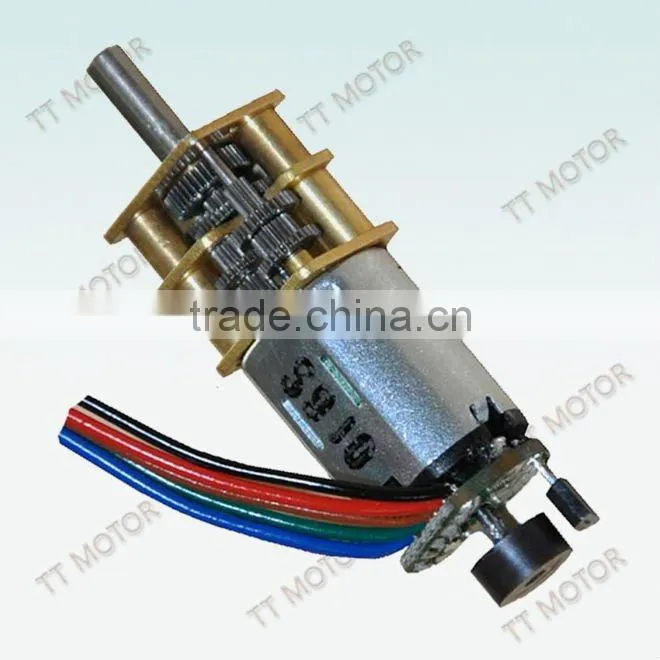

12mm 3v dc gear motor with encoder

Can be equipped with encoder


1.Rated Voltage:1.5-12V
2.Speed: 10-2000 RPM
3.Can be equipped with encoder
4.Widely used in robot,lock.

5.Reduction Ratio:10-1000

6.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-30 days

Typical Applications Description
Power Lock
Electronic lock,
Optic equipment,
Medical apparatus

12GF1215 Geared motor reduction ratio:

                10 30 50 63 100 150

               210 250 298   380   1000
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT
TORQUE
OUTPUT
 TORQUE CURRENT
V r/min A r/min A N.m Kg.cm w N.m Kg.cm A
GM12-N20VA
 13115-50 1.5-3.0 2.4 310 0.20 240 0.45 0.013 0.135 0.34 0.049 0.5 1.4
13115-100 1.5-3.0 2.4 152 0.16 120 0.42 0.026 0.27 0.34 0.098 1.0 1.4
13115-298 1.5-3.0 2.4 50 0.15 38 0.39 0.078 0.80 0.34 0.294 3.0 1.4
08260-50 2.0-5.0 5.0 285 0.10 218 0.24 0.012 0.13 0.30 0.039 0.4 0.6
08260-100 2.0-5.0 5.0 145 0.10 110 0.22 0.026 0.26 0.30 0.088 0.9 0.6
08260-298 2.0-5.0 5.0 45 0.08 35 0.20 0.076 0.77 0.30 0.255 2.6 0.6



12mm 3v dc gear motor with encoder

12mm 3v dc gear motor with encoder



 12mm 3v dc gear motor with encoder
