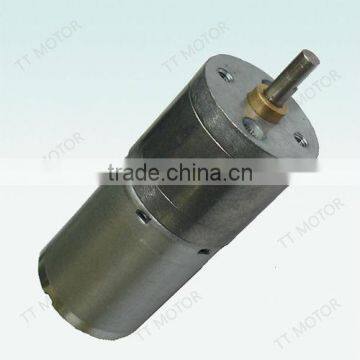

24mm dc motor or encoder with 25mm gear motor packing machine motor

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hong Kong, China		Brand Name	TT MOTOR
Model Number	GM25-370CA

12v dc motor,25mm gear motor,

Can be equipped with encoder.

1.Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector,

=====Coin refund devices,Currency count machine, Towel dispensers,

=====Automaitic doors,Peritoneal machine,Automatic TV rack,

=====Office equipemt ,Household appliances,Automatic

2.Voltage:3-24V
3.Speed:3-1500RPM

4.Stall Torque: 12kg.cm

5.Life time: 2500H.

6.Low noise,low current no spark

7.Motor with encoder,16 pulse signal
8.Reduction Ratio:3-1500

9.size:25*60 mm,just 60.0 mm length mini motor

10.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days

Gear motor Technical Data

Gearbox with motor:GM25-370CA-22170-XXX

Reduction ratio	4	10	21	34	47	75	103	165	227	499
Length mm	17	17	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	70	50	32	24	11
Rated speed rpm	1200	480	230	137	102	64	47	29	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.67	1.1	1.5	2.2	2.7	5
entary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10

Gearbox with motor:GM25-370CA-15360-XXX

Reduction ratio	4	10	21	34	47	75	103	165	227	499
Length mm	17	17	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	70	50	32	24	11
Rated speed rpm	1200	480	230	137	102	64	47	29	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.67	1.1	1.5	2.2	2.7	5
entary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10

Gearbox with motor:GM25-370CA-12560-XXX

Reduction ratio	4	10	21	34	47	75	103	165	227	499
Length mm	17	17	19	21	21	23	23	25	25	27
No-load speed rpm	850	340	165	100	75	50	34	21	16	7
Rated speed rpm	750	300	145	86	64	40	29	18	13	6
Rated torque kg.cm	0.05	0.12	0.26	0.42	0.56	0.9	1.2	1.8	2.5	5
entary tolerance torque kg.cm	0.3	0.75	1.5	2.6	3.5	10	10	10	10	10
