US$ 4.92 - 5.17
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TT MOTOR
Model Number:
GM24-N20VA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
dc Brushless 24vdc Gear MotorNegotiableMOQ: 100 Pieces -
GMP24-TEC2419 12v dc Motor With Gear ReductionNegotiableMOQ: 100 Pieces
-
dc Brushless 6 Rpm Compact Gear MotorNegotiableMOQ: 100 Pieces
-
dc Brushless Gear Motor 6 RpmNegotiableMOQ: 100 Pieces
-
GM24-N20VA 10rpm 12v dc Brush Gear MotorUS$ 4.92 - 5.17MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
TT MOTOR
Model Number
GM24-N20VA
Usage
Home Appliance, Other, Home Appliance, power lock
Certification
ROHS
Type
Gear Motor
Torque
1.0Kg.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
28 rpm(no load)
Continuous Current(A)
35 mA
Output Power
0.4 W
Voltage(V)
5.0 V

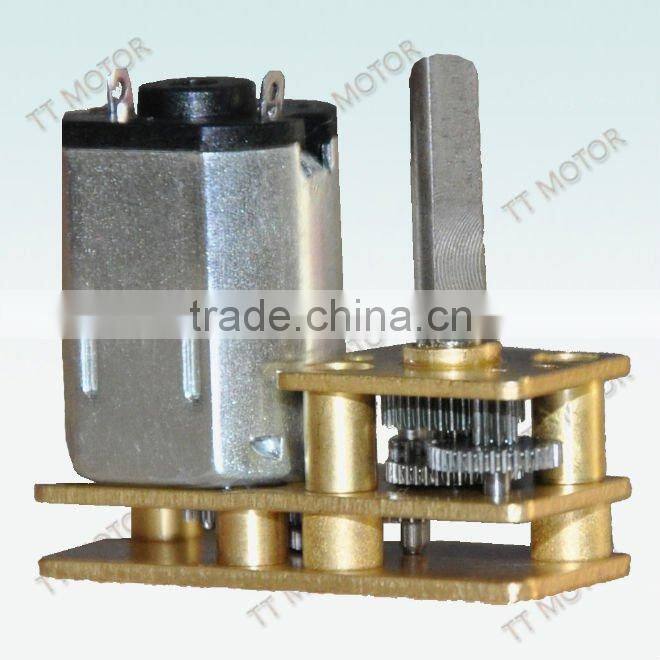

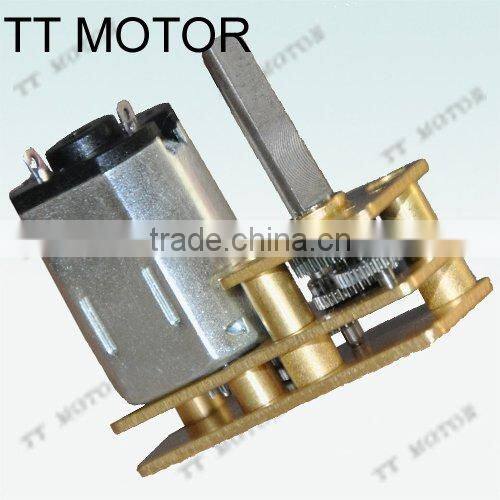

GM24 12v right angle gear motor
MODEL:GM24-N20VA
1.Voltage:2.4/5.0VDC
2.available reduction ratio:500/1

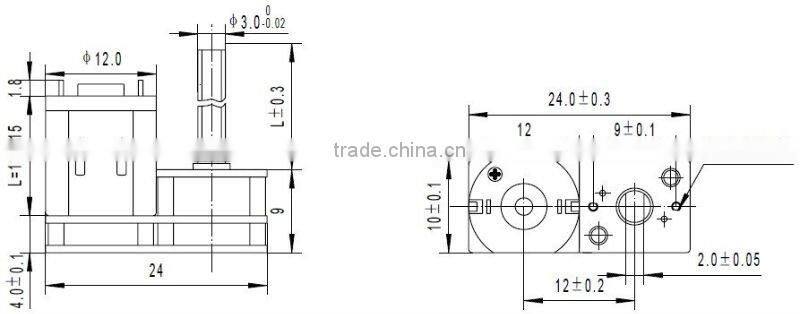

3.motor size:10.0*24.0mm
4.shaft:3.0mm diameter,length can be different
5.stall torque:3.5Kg.cm
stall current:0.52A at 5.0V
6.can match with micro encoder,3ppr
7.widely used on robot,door lock,medical system,home appliances,etc
8.motor output force same direction
9.We can provide samples for your test.
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM24-350 | 220-500 | 1.5-6.0 | 5.0 | 28.0 | 0.035 | 23.0 | 0.13 | 0.059 | 0.6 | 0.4 | 0.35 | 3.5 | 0.52 |
190-500 | 1.5-3.5 | 2.4 | 19.0 | 0.035 | 13.0 | 0.15 | 0.049 | 0.5 | 0.5 | 0.1 | 1.0 | 0.37 | |
