5v 13mm Gear Motor Micro

Name: 5v 13mm Gear Motor Micro
Brand: TT Motor
SKU: 139550773
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TT Motor

Model Number:

GM13-030PA

TT Motor (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TT Motor

Model Number GM13-030PA

Certification CE, ROHS

Type Gear Motor

Torque 0.01-0.5kg.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Explosion-proof

Speed(RPM) 28-3000

Continuous Current(A) 0.2A

Output Power 0.45w

Voltage(V) 5

Efficiency IE 1

5v 13mm gear motor micro

Applications

Characters

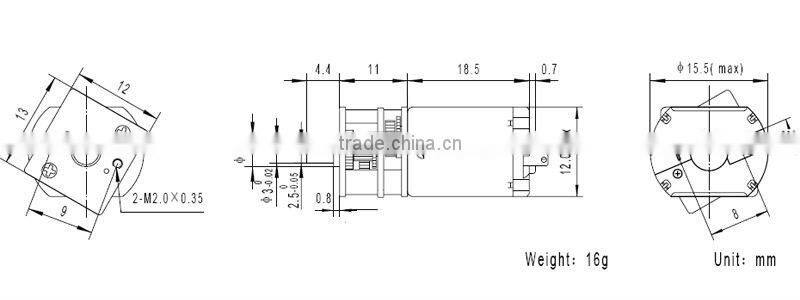

size: 15.5*12.0*29.5mm
torque: 0.01-0.5Kg.cm
voltage:5V 6V 12V
13mm gearbox can also match with dc motor TFF-050SH
Available Reduction Ratio:1/3 ,1/10 ,1/20, 1/35 ,1/63 , 1/86, 1/115, 1/150 , 1/250 ,1/360
3.0mm diamter shaft,usually 2.5mm D sahft,and customer can decide the shaft length
M3 & M4 screw-thread shaft is available
low noise and current
Samples can be sent first and delivery time is 15 days.

Gearbox with motor:GM13-030PA-09220-XXX-6V

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	3600	1100	550	310	175	130	96	73	44	30
Rated speed rpm	3000	900	450	260	140	105	78	60	38	28
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
entary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0

Gearbox with motor:GM13-030PA-10180-XXX-5V

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	3600	1100	550	310	175	130	96	73	44	30
Rated speed rpm	3000	900	450	260	140	105	78	60	38	28
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
entary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0

Gearbox with motor:GM13-030PA-06400-XXX-12V

Reduction ratio	3	10	20	35	63	86	115	150	250	360
Length mm	11	11	11	11	11	11	11	11	11	11
No-load speed rpm	4000	1200	610	350	195	140	105	83	50	35
Rated speed rpm	3250	975	485	280	155	110	85	65	41	30
Rated torque kg.cm	0.01	0.03	0.06	0.1	0.19	0.26	0.35	0.45	0.5	0.5
entary tolerance torque kg.cm	0.05	0.14	0.28	0.48	0.9	1.2	1.6	1.9	2.9	3.0
