100rpm Mini Gearmotor With Encoder 12v 25mm

Name: 100rpm Mini Gearmotor With Encoder 12v 25mm
Brand: TT Motor
SKU: 139550679

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TT Motor

Model Number:

gm25-370ca

TT Motor (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TT Motor

Model Number gm25-370ca

Usage Other, wheel chair

Certification ROHS

Type Gear Motor

Torque 0.06-5kg.cm

Construction Permanent Magnet

Commutation Brush

Speed(RPM) 11-1280rpm

Continuous Current(A) 0.09-0.3A

Output Power 0.62-1.18w

Voltage(V) 6v 12v

Efficiency IE 2

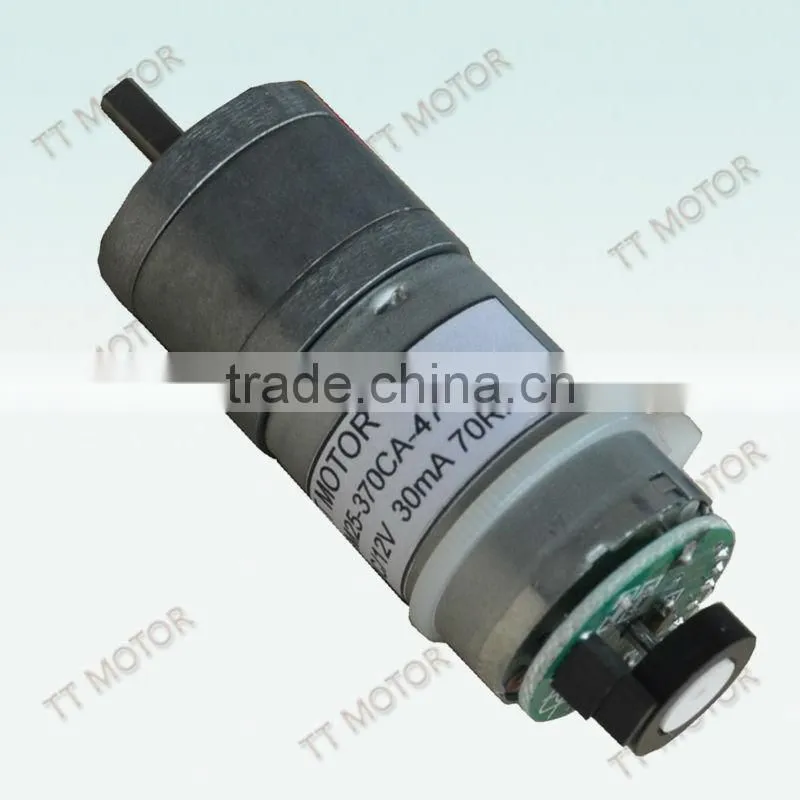

100rpm mini gearmotor with encoder 12v 25mm

GM25-370——brushed dc motor with extra strong magnets and powerful metal gearbox

Application

robot,lock. Auto shutter, USB fan,Slot machine, Money detector, Coin refund devices,Currency count machine, Towel dispensers, Automatic doors,Peritoneal machine,Automatic TV rack, Office equipment ,Household appliances,roller blind motor

Characters

size:25*54 mm,just 54 mm length mini motor
Voltage:6V 12V
Speed: 11-1200 RPM
Torque: 0.05-5kg.cm
Life time: 2500H.
Low noise,low current no spark
Motor with encoder,16 pulse signal
Lubrication: grease filled
Reduction Ratio: 4,10,21,34,45,47,78,103,130,172,227,378,499
can be equipped with encoder,3ppr,12ppr
Samples can be sent first . The MOQ is 100 pieces and the delivery time is 15-20 days.

Parameters and dimensions of 100rpm mini gearmotor with encoder 12v 25mm

Gearbox with motor:GM25-370CA-22170-XXX-6V

Reduction ratio	4	10	21	34	47	78	103	130	227	499
Length mm	17	19	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	68	50	42	24	11
Rated speed rpm	1200	480	230	137	102	62	47	37	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7	5
entary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10

Gearbox with motor:GM25-370CA-15360-XXX-12V

Reduction ratio	4	10	21	34	47	78	103	130	227	499
Length mm	17	19	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	68	50	42	24	11
Rated speed rpm	1200	480	230	137	102	62	47	37	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7	5
entary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10
