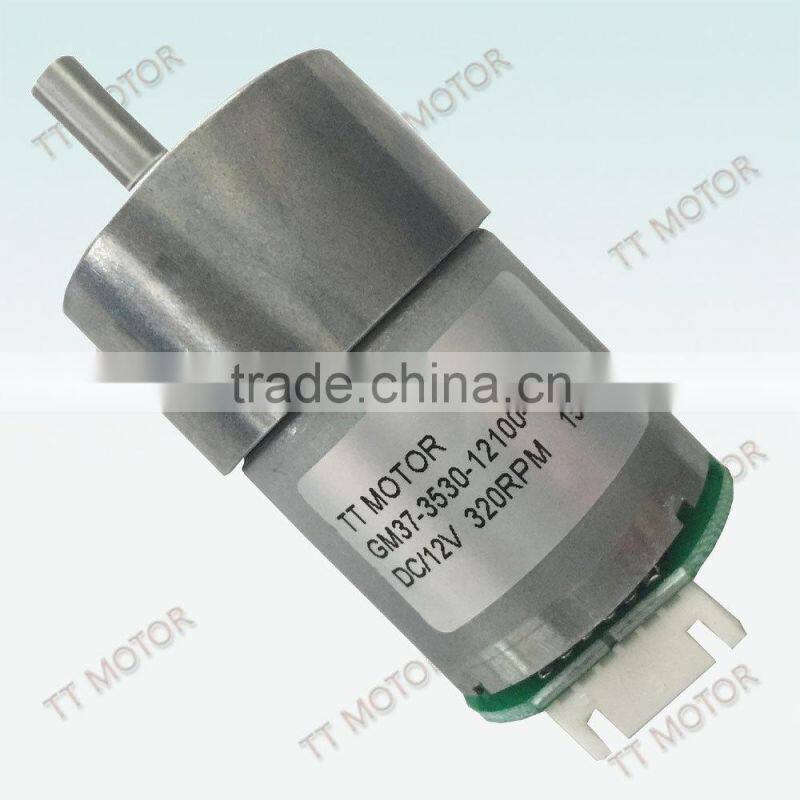

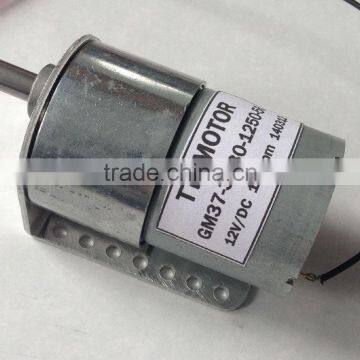

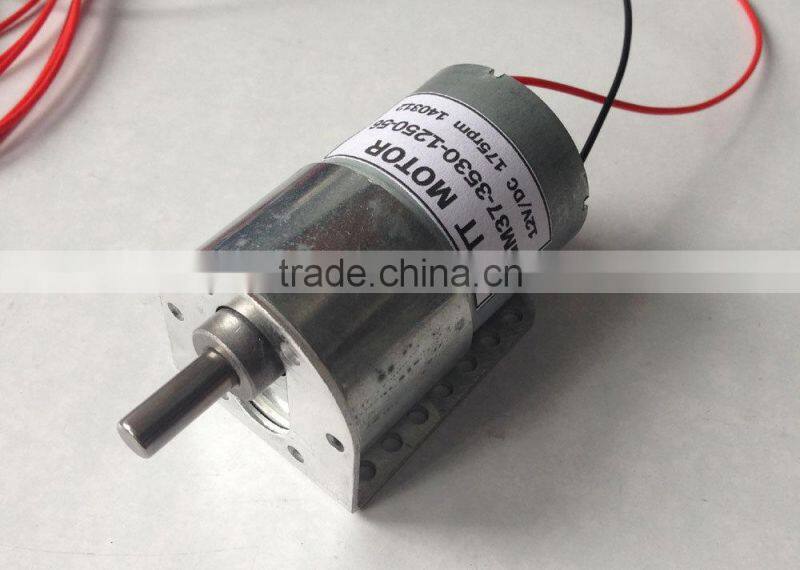

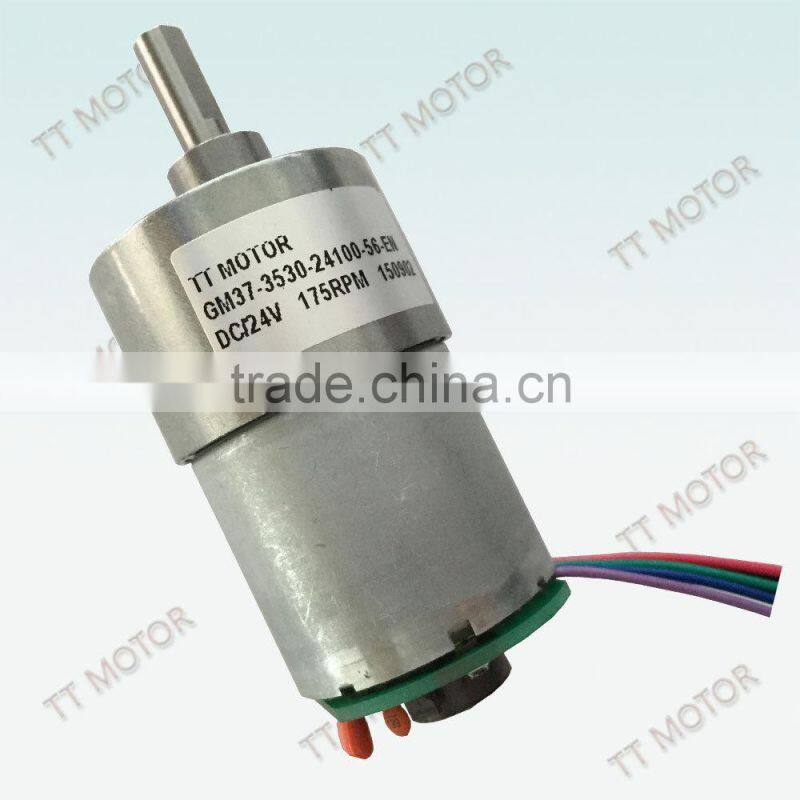

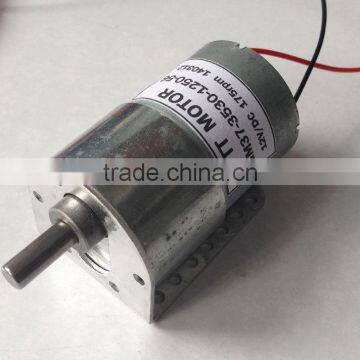

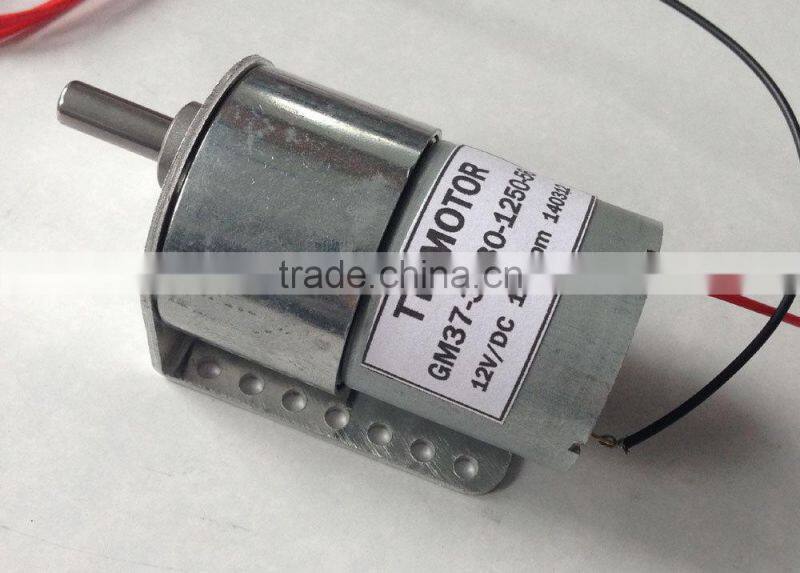

GM37 dc gear motor with encoder
- 50000 Piece / Pieces per Month
- Hong Kong
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | GM37-3530-EN |
Product Description
GM37-3530 of low rpm gear motor with encoder
37mm dc gear motor with encoder
high torque low rpm gear motor
MODEL: GM37-3530:
1.37mm dc motor with gearbox
2.no load speed:147rpm,current:0.3A
3.size:37*54.8mm,just 54.8mm length micro motor

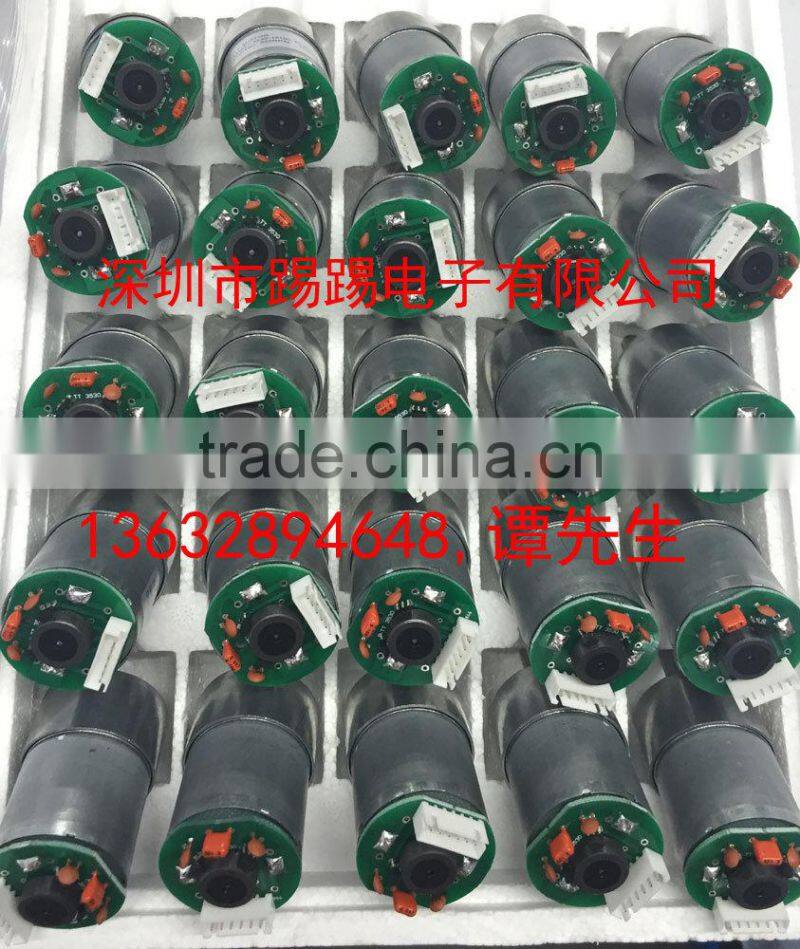

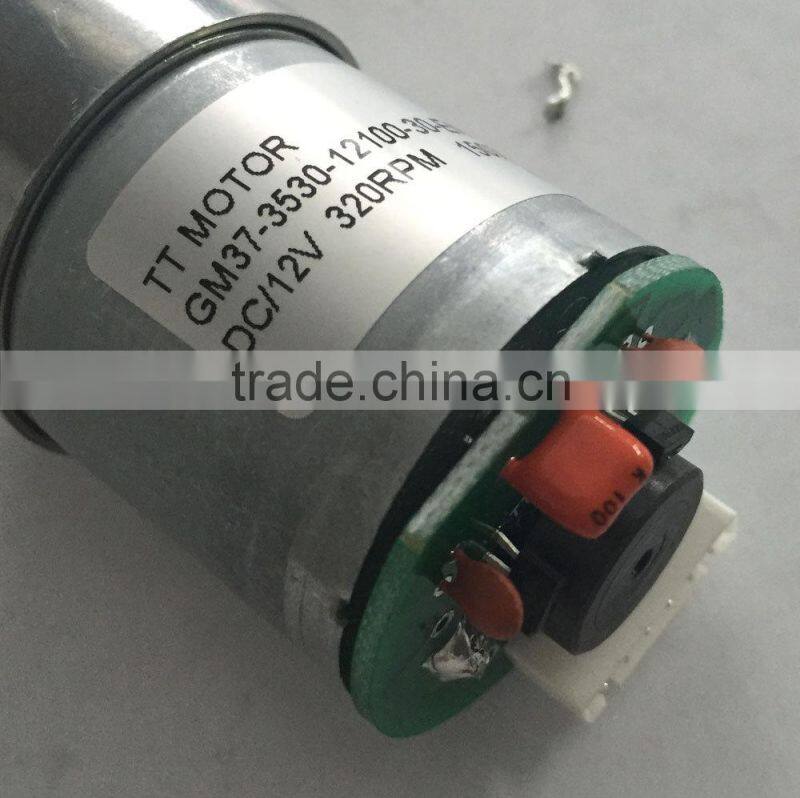

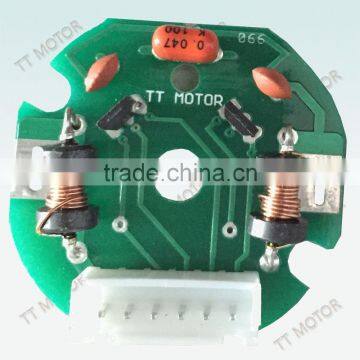

4.Motor can be equipped with encoder,16 pulse signal
5.Reduction Ratio: 1/6,1/10,1/19,1/30,1/44,1/56,1/90,1/131,1/169,1/270,1/393,1/506,1/810
6.typical applications:Financial apparatus,Ad equipment,
Accessory of automobile,Paper feeder,Mini mechanism,Medical instrument
7.Low noise,low current and no spark
8.We can offer the samples first , the MOQ is 100 pieces, and the delivery time is 15-20 days.
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM37-3530 | 0650-10 | 5-12 | 6.0 | 500 | 0.12 | 430 | 0.7 | 0.048 | 0.48 | 3.2 | 0.25 | 2.6 | 3.0 |
| 0650-30 | 5-12 | 6.0 | 165 | 0.12 | 147 | 0.7 | 0.13 | 1.3 | 2.9 | 0.7 | 7.1 | 3.0 | |
| 0650-90 | 5-12 | 6.0 | 55 | 0.12 | 47 | 0.7 | 0.35 | 3.5 | 2.6 | 1.8 | 18 | 3.0 | |
| 0650-168 | 5-12 | 6.0 | 29 | 0.12 | 25 | 0.7 | 0.55 | 5.5 | 2.2 | 2.9 | 29 | 3.0 | |
| 0650-270 | 5-12 | 6.0 | 18 | 0.12 | 16 | 0.7 | 0.9 | 9.0 | 2.2 | 4.7 | 47 | 3.0 | |
| 0650-506 | 5-12 | 6.0 | 9.5 | 0.14 | 8 | 0.7 | 1.5 | 15 | 2.0 | 8.0 | 80 | 3.0 | |
| 0650-810 | 5-12 | 6.0 | 6 | 0.14 | 5 | 0.7 | 2.4 | 24 | 2.0 | 8.0 | 80 | 3.0 | |
| 12100-10 | 10-18 | 12.0 | 1000 | 0.25 | 750 | 1.1 | 0.12 | 1.2 | 6.5 | 0.65 | 6.5 | 6.5 | |
| 12100-30 | 10-18 | 12.0 | 333 | 0.25 | 250 | 1.1 | 0.32 | 3.2 | 5.8 | 1.8 | 18 | 6.5 | |
| 12100-90 | 10-18 | 12.0 | 111 | 0.25 | 85 | 1.1 | 0.87 | 8.7 | 5.2 | 4.9 | 49 | 6.5 | |
| 12100-168 | 10-18 | 12.0 | 59 | 0.25 | 18 | 1.1 | 1.3 | 13 | 4.4 | 7.8 | 78 | 6.5 | |
| 12100-270 | 10-18 | 12.0 | 37 | 0.25 | 30 | 1.1 | 2.2 | 22 | 4.4 | 8.0 | 80 | 6.5 | |
| 12100-506 | 10-18 | 12.0 | 19 | 0.25 | 16 | 1.1 | 3.0 | 30 | 4.0 | 8.0 | 80 | 6.5 | |
| 12100-810 | 10-18 | 12.0 | 12 | 0.3 | 10 | 1.1 | 4.5 | 45 | 4.0 | 8.0 | 80 | 6.5 | |
