Specifications

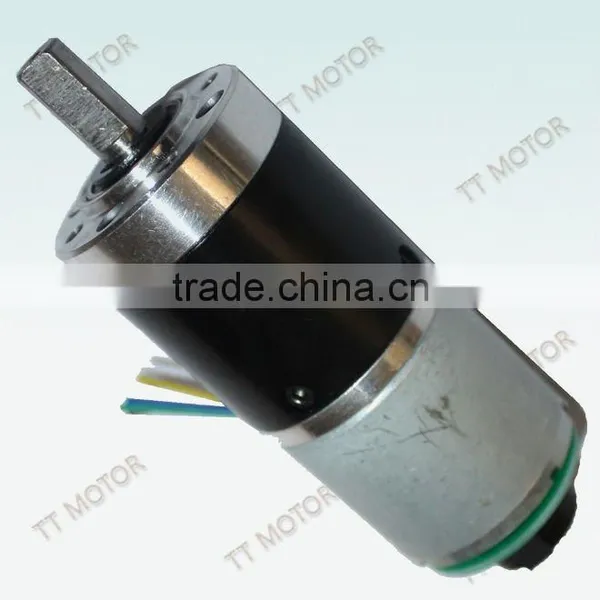

planetary DC 12v gear motor1.36mm dc planetary gear motor
2.Motor with encoder,16 pulse signal
3.12v dc motor,max 95kg.cm
planetary DC 12v gear motor

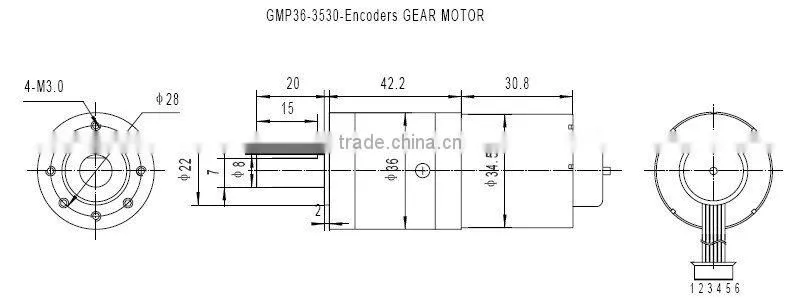

Model:GMP36-3530
1.36mm dc planetary gear motor
2.Motor with encoder,16 pulse signal
3.12v dc motor,max 95kg.cm
4.planetary gear motor with encorder,Low Noise,Reliable performance.
5. Brushless motor, Long life, low noise, low power consumption, high efficiency, adjustable speed with encorder,Low Noise,Reliable
Typical Applications Bank equipment AD equipment Flow control valvest |
Description ReductionRatio: 1/5.2 1/191/271/711/1001/1391/2641/5161/720 |
MODEL |
VOLTAGE |
NO LOAD |
AT LOAD |
STALL |
|||||||||
OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||
V |
rpm |
A |
rpm |
A |
N.m |
Kg.cm |
w |
N.m |
Kg.cm |
A |
|||
GMP36-3530-Encorder |
15330-264 |
4.0-28 |
24.0 |
20.0 |
0.05 |
18 |
0.15 |
0.78 |
8.00 |
1.50 |
5.88 |
60 |
0.80 |
12560-369 |
4.0-17 |
12.0 |
100 |
0.09 |
82 |
0.40 |
0.29 |
3.00 |
2.50 |
1.76 |
18 |
1.90 |
|
Motor Technical Data
Type |
Rated voltage |
No-load speed |
No-load current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall current |
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
g.cm |
A |
|
TRK-3530-1240 |
12 |
4000 |
35 |
3400 |
35 |
170 |
1.3 |
220 |
1.0 |
TRK-3530-1250 |
12 |
5000 |
45 |
4200 |
40 |
250 |
1.8 |
250 |
1.2 |
TRK-3530-2460 |
24 |
6000 |
30 |
5300 |
50 |
180 |
3.1 |
400 |
1.3 |
