16mm Brushless dc Motor Controller With External Drive

16mm Brushless dc Motor Controller With External Drive thumbnail-1
16mm Brushless dc Motor Controller With External Drive photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TT Motor
Model Number:
GMP16-TEC1636
Contact Supplier Request Quote Chat Now
TT Motor (Shenzhen) Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TT Motor
Model Number GMP16-TEC1636
Usage Home Appliance, Other, Home Appliance, Robot, Medical equipment
Certification ROHS
Type Other, Brushless motor
Torque 0.1-5kg.cm
Construction Permanent Magnet
Commutation Brushless
Protect Feature Explosion-proof
Speed(RPM) 4.5-2200rpm
Continuous Current(A) 2.4A max
Output Power 12w
Voltage(V) 12v 24v
Efficiency Other, 80%

Specifications

16mm brushless dc motor controller with external drive
1.16.0*50.0mm
2.Spped: 4.5-2200rpm
3.40g or so

16mm brushless dc motor controller with external drive

GMP16-TEC1636

Application

  • robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices
  • Currency count machine, Towel dispensers, Automatic doors,Peritoneal machine
  • Automatic TV rack,  Office equipemt ,Household appliances,Automatic

Characters
  • size:16*50 mm,just 50.0 mm length mini motor
  • Voltage:12V 24V
  • Rated spped: 4.5-2200rpm
  • Rated torque:5kg.cm
  • Reduction ratio:  4,16,29,62,104,198,231,370,455,690,850,1996,3027
  • 16mm Planetary Gearsbox plus 16 brushless coreless motor
  • provide 0.3Nm torque
  • dc motor controller motor can be equiped with encoder,16 pulse signal
  • Samples can be sent first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.
  • Funciton offered: Brake, FR(CW and CCW), PWM, FG signal

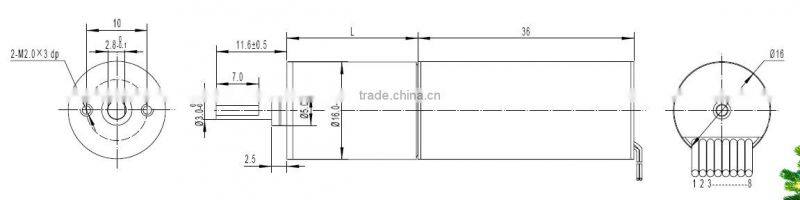

Parameters and dimensions of 16mm brushless dc motor controller with external drive

Gearbox with motor:GMP16-TEC1636-12120-XXX-12V

Reduction ratio

4

16

29

62

104

198

231

370

850

1996

Length  mm

15.5

18.7

18.7

22.4

22.4

26

26

26

26

29.7

No-load speed    rpm

2700

700

400

180

110

55

45

30

13

5

Rated speed     rpm

2200

600

320

150

90

45

40

27

11

4.5

Rated torque     kg.cm

0.1

0.4

0.7

1.5

2.8

5

5

5

5

5

entary

tolerance torque  kg.cm

0.5

2

3

8

9

9

9

9

9

9

Gearbox with motor:GMP16-TEC1636-24120-XXX-24V

Reduction ratio

4

16

29

62

104

198

231

370

850

1996

Length  mm

15.5

18.7

18.7

22.4

22.4

26

26

26

26

29.7

No-load speed    rpm

2700

700

400

180

110

55

45

30

13

5

Rated speed     rpm

1600

430

240

100

65

45

40

25

11

4.5

Rated torque     kg.cm

0.2

0.7

1.3

2.9

5

5

5

5

5

5

entary

tolerance torque  kg.cm

0.5

2

3

8

9

9

9

9

9

9



16mm brushless dc motor controller with external drive
