Specifications
oxygen generator concentrator1.About 95% concentration
2.Stable oxygen output
3.Each tower working independently
4.Durable

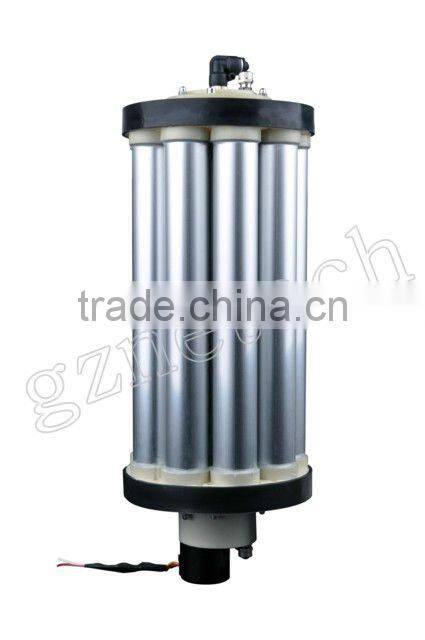

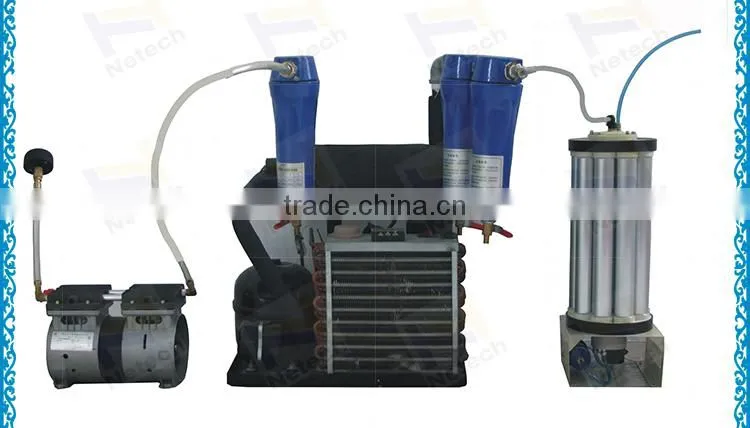

Factory price high efficiency 3-15APM molecular sieve
Factory price high efficiency 3-15APM molecular sieve
Description:

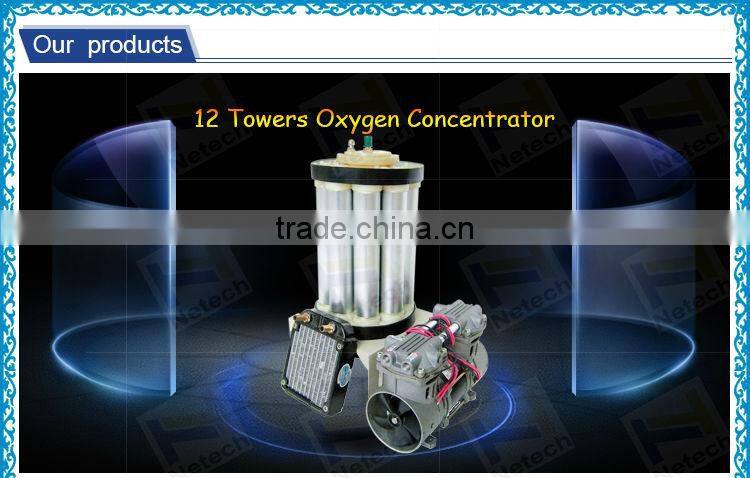

12 Towers Oxygen Concentrator

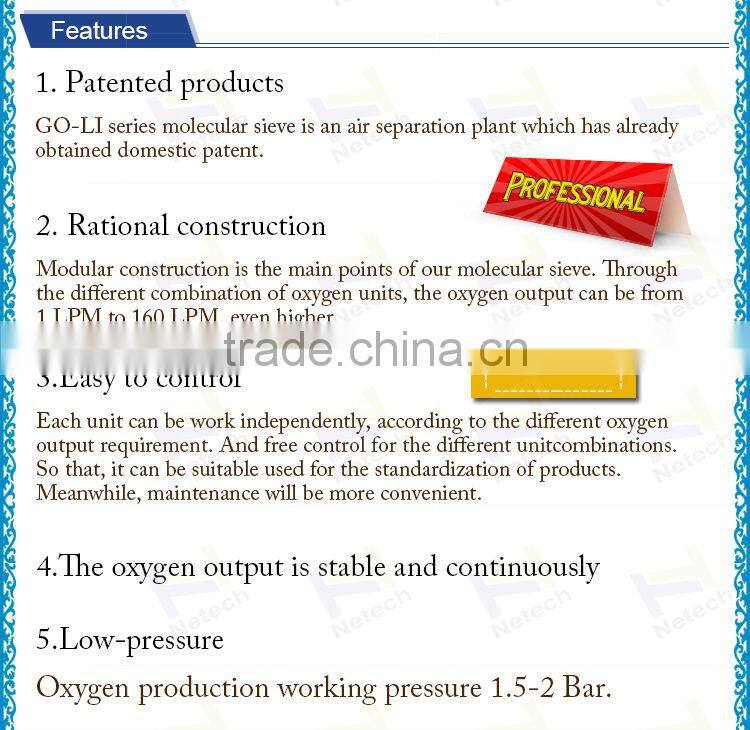

1. Patented products NT-OT series molecular sieve is an air separation plant which has already obtained domestic patent.
2. Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3. Easy to control Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4. The oxygen output is stable and continuously
5. Low-pressure oxygen production working pressure less than 3 KG.

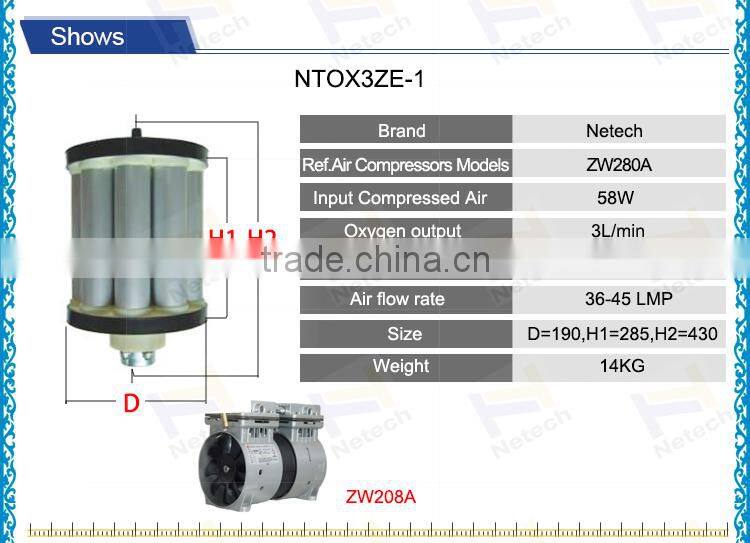

Item |
Unit |
NTOX3AL |
NTOX5AL |
NTOX7AL |
NTOX10AL |
NTOX15AL |
Oxygen output |
LPM |
3 |
5 |
7.5 |
10 |
15 |
Oxygen concentration |
% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
90%±3% |
Air flow rate |
LPM |
36-45 |
60-75 |
90-115 |
90-115 |
180-200 |
Pressure(inlet) |
Mpa |
0.14-0.18 |
0.14-0.2 |
0.15-0.21 |
0.18-0.25 |
0.35 |
Pressure(outlet) |
Mpa |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
Temperature |
celcius |
indoor temperature |
||||
Relative humidity |
% |
≤ 70%±10% |
||||
Noise |
Db |
≤60 |
≤60 |
≤60 |
≤60 |
≤60 |
Dimension |
mm |
dia.200×310 |
dia. 200×430 |
dia. 200×500 |
dia. 200×560 |
dia. 200×880 |
Net weight |
kg |
15.70 |
18.30 |
19.30 |
30.60 |
32.5 |
Factory price high efficiency 3-15APM molecular sieve
Appliance of oxygen machine:
• Welding / Brazing Furnace Enrichment
• Fermentation Glass Industry
• Fish Farming Ozone Generator
• Sewage Treatment Pulp & Paper
• Chemical Oxidation Rough Cutting
• Battery Manufacture Melting
• Mini-Steel Mills Cement & Lime Kilns
• Metal Spraying Copper Smelting
