Specifications
Water treatment complete machinegenerator equipment treatment system ozone,machine,device,ozonizer,sterilizer,ozonator,hospita

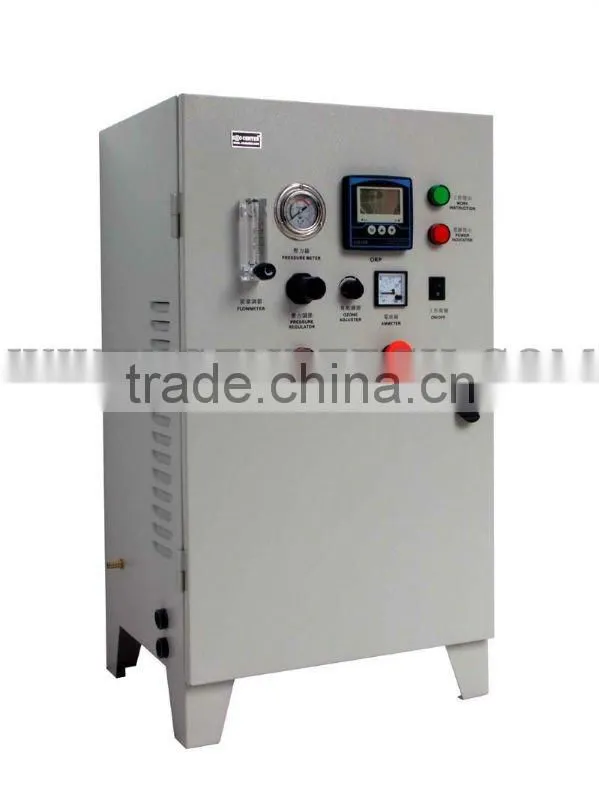

Water treatment complete machine
purifier equipment water treatment system ozone,air purifier,machine,device,ozonizer,sterilizer,ozonator,hospital
Features
1. Carbon steel sprayed with plastic of machine housing. Most suitable used for water treatment, eg: sewage water
treatment, drinking water, industrial water treatment etc.
2. Installed with water cooling enamel ozone tube
Water cooled for internal & external electrodes, effective prevent high temperature rising during ozone tube’s
operating, for ensuring high ozone concentration output.
3. Adjustable ozone output.Use high-frequency & intelligent power supply inverse system, ozone output can be adjusted on for different usage.
4. Can be feed with outside oxygen/air feed.
5. High ozone concentration is more than 90Mg/L if connect with outside oxygen tank.
6. Easy to maintain and assembly
7. ORP meter which shows the PH of treated water, easy to get the treated result after use ozone machine.
Controls
Oxygen flow meter Voltmeter Ampmeter On/Off
Working light Power light Ozone Adjuster Alarm
Pressure regulator Emergency Water flow switch ORP
Remarks:
1. An ORP meter measures very small voltages generated with a probe placed in ozonated water. The electrode is
made of platinum or gold, which reversibly looses its electrons to the oxidizer. A voltage is generated which is
compared to a silver (reference) electrode in a silver salt solution, similar to a pH probe. The more oxidizer available,
the greater the voltage difference between the solutions.
2. ORP Disadvantages: ORP cannot be used as a direct light of dissolved ozone residual, except in very clean water
applications.
3. ORP Advantages: ORP is a convenient measure of ozone's ability to perform a chemical task. ORP is valid over a
wide pH range, and ORP probes are rugged enough to be place into processes for in-line measurement. The probes can withstand process pressures in excess of 30 PSI.

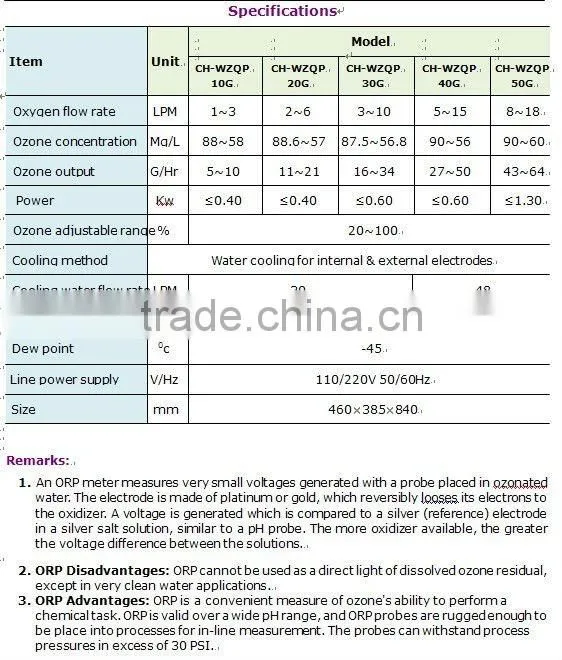

Specification & Picture
