Product Introduction>>>

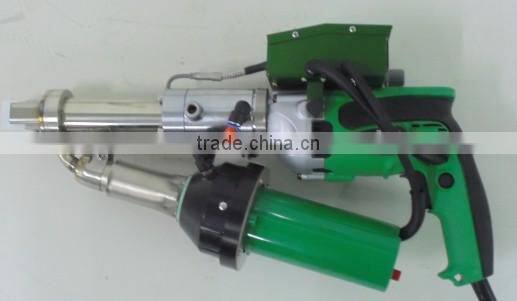

Hand Extruder BPM610C is used for weldng PE,PP,PVC,PVDF and so on.This tool is of light weight,stable performance,convenient operation,large-amount extrusion and high efficiency,the advantage is for welding narrow gap and corners where is not easy to reach.
Features
1)the two independent heating systems for better heating performance and longer service life.
2)light and easy to handle.
3)available to different types of welding seam with different welding shoes.
4)with control box to adjust temperture and protect electric motor.
1.Basic Parameter
| Voltage | 220 V ± 5% |
| Frequency | 50/60Hz |
| Extruding Power(Metabo motor) | 1100W |
| Hot Air Power | 1600W |
| Welding Rod Heating Power | 800W |
| Air Temp | 20-600°c Adjustable |
| Extruding Temp | 200-300°c Adjustable |
| Welding Speed | 2.0-2.5Kg/h |
| Welding Rod DIA | 3.0mm-4.0mm |
| Weight | 7.0Kg |
| Application | Hand hold extrusion welding machine |
2.Details of Product
3.Packaging and Shipping
Packaging:
58.8*18.8*46.6 cm
Aluminium box inner and carton box outer.
Shipping:
We always find the most suitable Express to reduce the express charge for you! Your business is our business!
We can offer some vedios of our products welding process to help you weld better!
