Best Prices for HDPE Geo Membrane Tank Welding Machines

Name: Best Prices for HDPE Geo Membrane Tank Welding Machines
Brand: BPM800, BPM
SKU: 139537005
Availability: InStock

Best Prices for HDPE Geo Membrane Tank Welding Machines thumbnail-1

Best Prices for HDPE Geo Membrane Tank Welding Machines photo-1

US$ 1,100 - 1,700 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

BPM800, BPM

Contact Supplier Request Quote Chat Now

The Best Project Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name BPM800, BPM

Model Number BPM

Pulse Frequency 50HZ

Pilot Arc Current 3.6A

Rated Duty Cycle 100%

Motor Type DC Motor

Dimensions 37*22.5*28

Usage welding geomembrane

Voltage 110V,220V

Power(W) 750W

Certification CE

Warranty 1years

After-sales Service Provided Engineers available to service machinery overseas

1.Basic parameter:

Voltage:	220V
Frequency:	50/60Hz
Power:	800W
Welding speed:	0.5˜5m/min
Heating temperature:	0-450°C
Thickness of material:	0.2mm˜1.5mm
Overlap width:	10cm
Welding width:	12.5mm×2, interior cavity 12mm
Seam strength:	≥85% base material (tensile resistant in shear direction)
Weight:	5kgs
Insulation class:	class II

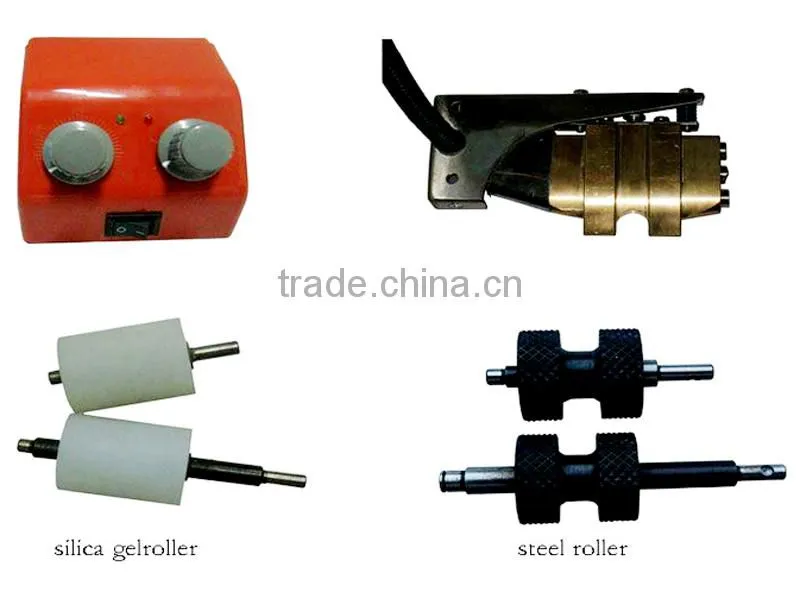

2.Accessories:

Including control box,hot wedge,silica gel roller,steel roller.

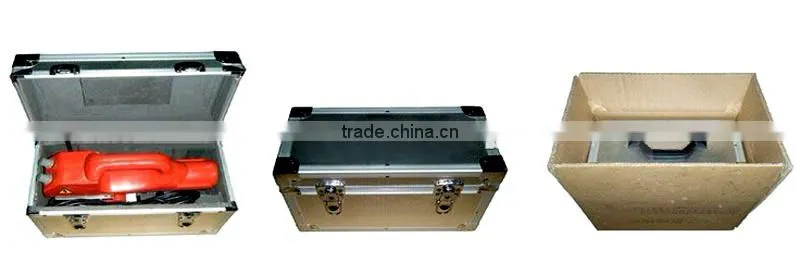

3.Packing:

4..Operation:

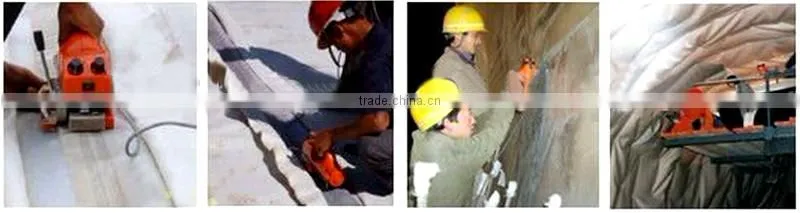

5.Application:

Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project,

lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project,

minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing

project etc.

Readiness of working:

Fit appropriate nozzle as required
Connect tool to the line/mains
Adjust air temperature
Switch on main switch and heat up the tool for approximately 5 minutes.

Changeable nozzles:

Do not touch the hot nozzle and make sure to place it on a heat resistant surface because of the fire hazard..
Put the nozzle on the heater tube and secure the nozzle by the screw on the cap.
Use nozzles only.

Maintenance:

Clean polluted air filter with a small brush or replace it
Clean welding nozzle with a steel brush.
Check mains cable and plug for electrical and mechanical damage.

Service and repairs:

The motor switches off automatically when the brush reach their minimum length. Have the tool checked by your service center. The life of the brushes is about 800 hours.
Repairs should be carried out by authorized service centers only. They guarantee a specialized and reliable service.
Sorry for not special notice in advance if there would be changes on parameters.

Warning

Unplug the tools before opening it.
Incorrect use of hot-air blowers can cause fire and explosion hazardous especially near combustible materials and explosive gases
Do not touch heater tube and nozzle when they are hot. They may cause burns. Do not point hot air flow in the direction of people or animals.

Caution:

The voltage rating stated on the tool must correspond to line/mains voltage.
For personal protecting on the building site, we strongly recommend the tool be connected to a GFCI(Ground Fault Circuit Interrupter)or a RCCB (Residual Current Circuit Breaker)
The tool much be operated with supervision. Heat can reach combustible materials which are out of sight.
