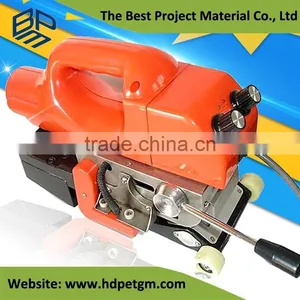

HDPE Liner Welding Machine Seam Welding Machine
|
Notice:
• We have a Trade Assurance Amount $112,000 granted by . It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms. |
Product Introduction
Geo-membrane welder is a new welding machine which is developed by our company.
They can weld geo-membrane of various thickness and are applicable for welding of
all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP
The control of this series adopt PID automatic thermostatic control with high control and
low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and
regulation speed circuit. Direct current servo the motor drive with great output torque and
staple performance in walking. It can maintain a constant speed on the condition of creeping,
vertical creeping and road load. Also this series of welding machine are stable in performance
despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high
welding speed and good work quality. It is extensively used in engineering projects such
as expressways, tunnels, reservoirs, waterproof of construction and so on.
Technical Parameter
Product |
Welding machine/ hot wedge welder |
Model |
BPM 800 |
Description |
* Voltage (V): 220V |
Main Components and Name
Working principle
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain.
Slide carriages drive the hot wedge and insert it between the two base materials, at the same time
lever presses pressure rollers and engages the two fused base materials.
Maintenance
The complete machine should be cleaned, greased and placed in a dry place if it is not used.
For PVC welding, the adhesions on hot wedge should be cleaned off if it is not used longer than
4 hours to prevent wedge corrosion and service life being shortened.
Recommend: for welding of material that corrosive gas may be produced after hot fusing such
as PVC and the like, stainless steel hot wedge (optional accessory) is preferred for extending of service life.
We also have hot air gun, hand extruder 800 welding machine and series of this products.
Hot Air Gun BPM 800 Welding Machine BPM900 Welding Machine Hand Extruder
And we are a professioanl manufacturer for geomembrane, geotextile, geocell,
and other geosynthetic products.
If you have any need, please contact me Amy.
