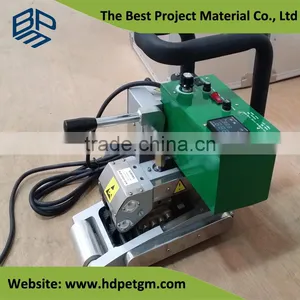

PE Plastic Welder Seam Welding Machine
|
Notice:
• We have a Trade Assurance Amount $104,000 granted by . It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms. • We have our own factory and can provide OEM according to your requirements. |
Product Introduction
Geo-membrane welder is a new welding machine which is developed by our company.
They can weld geo-membrane of various thickness and are applicable for welding of
all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP
The control of this series adopt PID automatic thermostatic control with high control and
low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and
regulation speed circuit. Direct current servo the motor drive with great output torque and
staple performance in walking. It can maintain a constant speed on the condition of creeping,
vertical creeping and road load. Also this series of welding machine are stable in performance
despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high
welding speed and good work quality. It is extensively used in engineering projects such
as expressways, tunnels, reservoirs, waterproof of construction and so on.
Technical Parameter
Product |
Welding machine/ hot wedge welder |
Model |
BPM 900 |
Description |
* Output Voltage:220V |
Main Components and Name
1.Pressure handle |
2.Manipulate hand |
3,Speeding knob |
4.Speeding switch |
5.Electric machine insurance |
6.Temperature switch |
7.power supply insurance |
8.Temperature control instrument |
9.Control case |
10.Thermal wedge |
11,Pressure wheel |
12,Creeping wheel |
13,Sway head |
14,Adjusting nut |
|
Working principle
Electric machine carried with above and below pressure wheel and turn it through speed-slow box
and chain steel, and heating the bracket up and turn thermal wedge to plug in between the two main
materials, meantime let the pressure bracket press the pressure wheel to made the thermal-fused
mother material together. The picture is as follow:
Maintenance
Please clean the dunghill in the thermal wedge and the mud in the chain guard and
oiled the whole machine to the dry place when not using it.
We also have hot air gun, hand extruder 800 welding machine and series of this products.
Hot Air Gun BPM 800 Welding Machine BPM900 Welding Machine Hand Extruder
And we are a professioanl manufacturer for geomembrane, geotextile, geocell,
and other geosynthetic products.
If you have any need, please contact me Amy.
