Product Details
Place of Origin: | Shandong, China | Brand Name: | BPM | Model Number: | BPMGCL |
Product Description

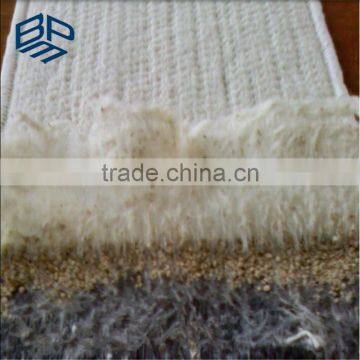

Geosynthetic Clay Liners are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier.
For different projects,it can combine HDPE liner for better waterproof. When hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay. The excellent properties of tensile and peel strength make the products ideal for many projects.
Technique Data:
Property | National standard | Enterprise Standard | Inspection standards |
JG/T 193-2006 | |||
Geosynthetic Clay Expansionindex | ≥24 ml/2g | ≥25ml/2g | ASTM D5890 |
Mass Per Unit Area(g/m2) | ≥4800 g/m2 | ≥4800 gm2 | ASTM D5993 |
Tensile Strength | ≥6KN/m | ≥8KN/m | ASTM 4632 |
Maximum load elongation | ≥10% | ≥10% | ASTM 4632 |
Permeability | ≤5×10-9 | ≤5×10-9 | ASTM D5084 |
Moisture content | ≤15% | ≤15% | ASTM D4643 |
Peel strength | ≥40N | ≥65N | ASTM D4632 |
Hydrostatic pressure | 0.4Mp | 0.4~0.6Mp | ASTM D5891 |
Features :
1.The permanent waterproof
Because sodium base bentonite is a natural inorganic material, even after a long time or the surrounding environment changes,
also won't happen aging or corrosion phenomena, so the waterproof performance persistence.
2. Compactibility
Sodium base bentonite under water pressure condition to form diaphragm with high density, thickness of about 3 mm,
its permeability is 5 x 10-11m/SEC below, equivalent to 100 times the compactness of 30 cm thickness of clay,
have very strong since the water retention performance.
3.Not affected by temperature
In cold climates will not brittle fracture.
4.Environmental protection
Bentonite as natural inorganic material, non-toxic harmless to human body, no special effects to the environment,
have good environmental performance.
5.Simple and short time of construction
Compared to other waterproofing materials, construction is relatively simple, don't need to be heated and paste.
With bentonite powder and nails, washers, etc are connected and fixed. After construction does not need special
inspection, if it is found that the waterproof defects and easy to maintenance.
GCL is existing waterproof material in construction period of the shortest.

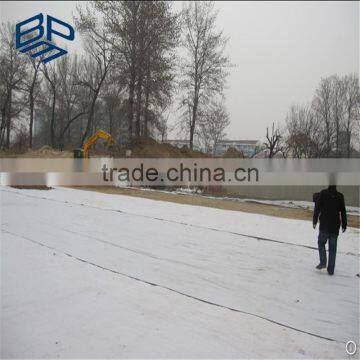

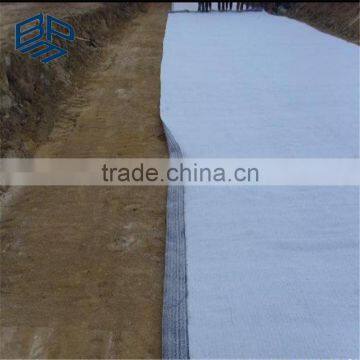

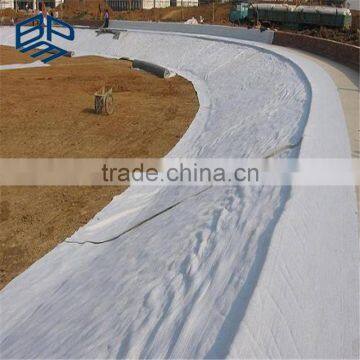

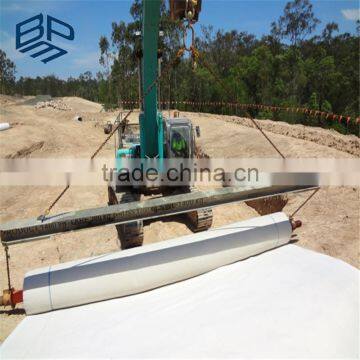

Geosythetic Clay Liners are widely used in waste landfill capping and cutoff walls to contain pollution,mining base seals, canal and dam liners, lakes and other waterproofing projects.
Our packing
Our Certificates:
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.
If you have any other test or certificate, we can do it for you.
