Waterproofing Material Geomembrane Composites With Geosynthetic Cloth

Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-1

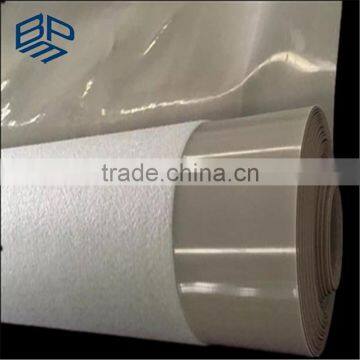

Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-2
Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-3

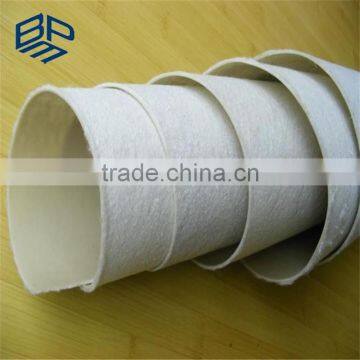

Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-4
Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-5

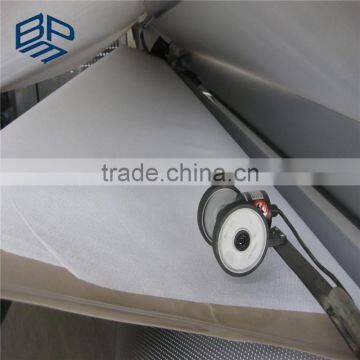

Waterproofing Material Geomembrane Composites With Geosynthetic Cloth photo-6
US$ 1.86 - 1.89 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM
Model Number:
BPMCG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name BPM
Model Number BPMCG
Product Description

Waterproofing Material Geomembrane Composites with Geosynthetic Cloth

BPM composite geomembrane is made of geotextile (base fabric can be filament or short fiber needle punched geotextile, woven geotextile) and high polymer by calendaring and hot-melt technology. It remains the mechanical properties of base fabric and uniformity of film which improve the impermeability. Embossed processing on the film strengthen its friction coefficient, stability and easy for installation. Applied to waterproofing lining of dam or canal and anti-pollution of waste plant.

Test Properties
BCM4
BCM5
BCM6
BCM7
BCM8
BCM9
BCM10
Weight                                      g/m2
400
500
600
700
800
900
1000
Film Thickness                        mm
0.25-0.35
0.30-0.50
Break Strength                        kN/m
5
7.5
10
12
14
16
18
Break Elongation                    %
30-100
CBR Burst Strength              kN
1.1
1.5
1.9
2.2
2.5
2.8
3
Tear Resistance                      kN
0.15
0.25
0.32
0.4
0.48
0.56
0.62
Peel Strength                        N/cm
=6
Film Thickness                       mm
0.2
0.3
0.4
0.5
0.6
0.7
0.8
One Cloth One Film              Mpa
0.4
0.5
0.6
0.8
1
1.2
1.4
Two Cloth One Film               Mpa
0.5
0.6
0.8
1
1.2
1.4
1.6
Detailed Images
Packing & Delivery

Carefully Packing

After inspection, Geosynthetic clay liner rolls are wrapped in black or white color woven cloth, sewing by workers carefully.Then loaded in container. Or as per your requirements. With years's experience, our packing and loading can make full use of container without waste. So that freight cost is saved.

Large Production Quantity .

Production quantity can be 18 tons per day with two shifts in the workshop which can fully meet customer's requirements of delivery.

Our Company

The Best Project Material Co.,Ltd

Established in 2010, is an industrial leader in manufacturing and marketing of geosynthetic products including geomembrane,geotextile,GCL geosynthetic clay liners, geogrid, geocell and drainage net. We have been approved by the ISO9001,ISO14001 and BV certificates and passed the test of SGS,SONCAP,SASO etc.


We have been dedicated in R&D,production,sales and installation services of geosynthetics for years. The products are widely used in aquaculture,waste water treatment,municipal project,mining industry,landfill, landscaping and water conservation.


Our commitment to innovation,our focus on quality and our industry expertise allow us the flexibility to collaborate with our clients to develop a customer-oriented solution. As a geosynthetic expert, we are here to offer best services with experienced geomembrane installation engineer.
