Help CenterWater Treatment Aeration Hose/water Aerator Aeration
Related Products
-
Shrimp Aerator /water Aerator AerationUS$ 0.2 - 1.2MOQ: 1000 Meters -
Shrimp Aerator Tube/add Oxygen in WaterUS$ 0.2 - 1.2MOQ: 1000 Meters
-
25mm OD Aeration Hose/ Rubber Micro Porous HoseUS$ 0.2 - 1.2MOQ: 800 Meters
-
OD21-4 Aeration Hose/aeration Tube / Add Oxygen for Fish or ShrimpUS$ 0.2 - 1.2MOQ: 1000 Meters
-
OD21-4 Aeration Hose/aeration TubeUS$ 0.2 - 1.2MOQ: 1000 Meters

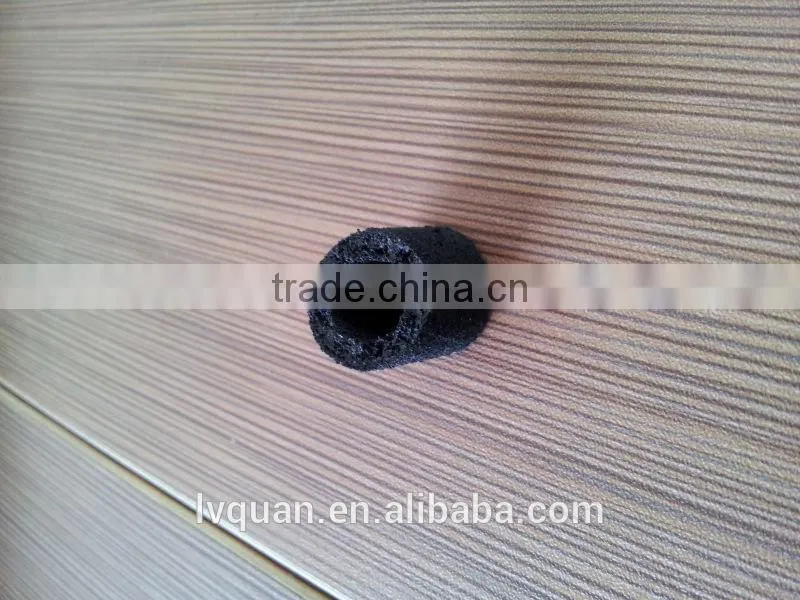

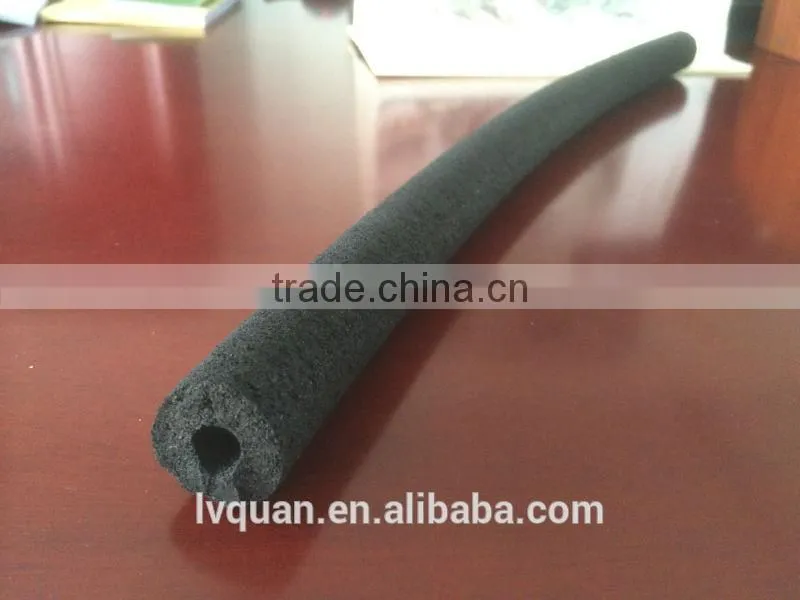

Aeration tube with all connectors and accessaries
Increase oxygen in the fish and shrimp pond
Antimicrobial
Better than float boat aerator

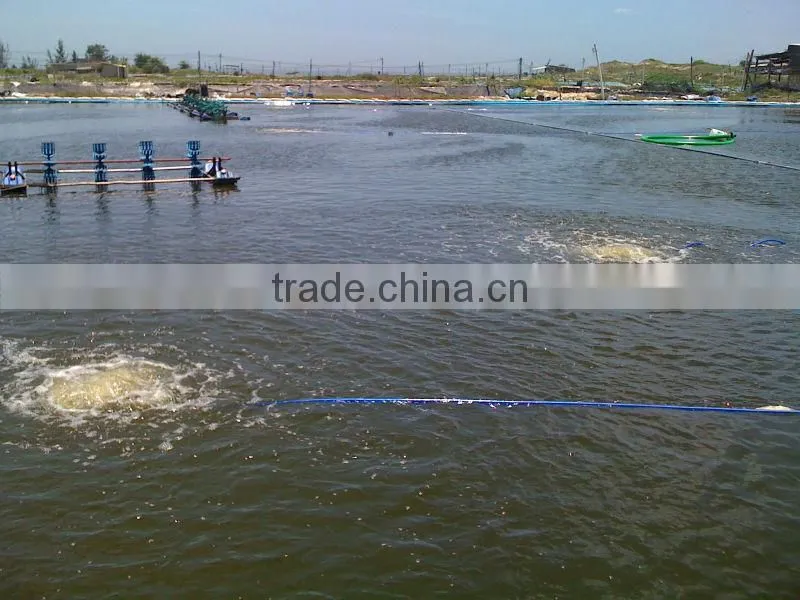

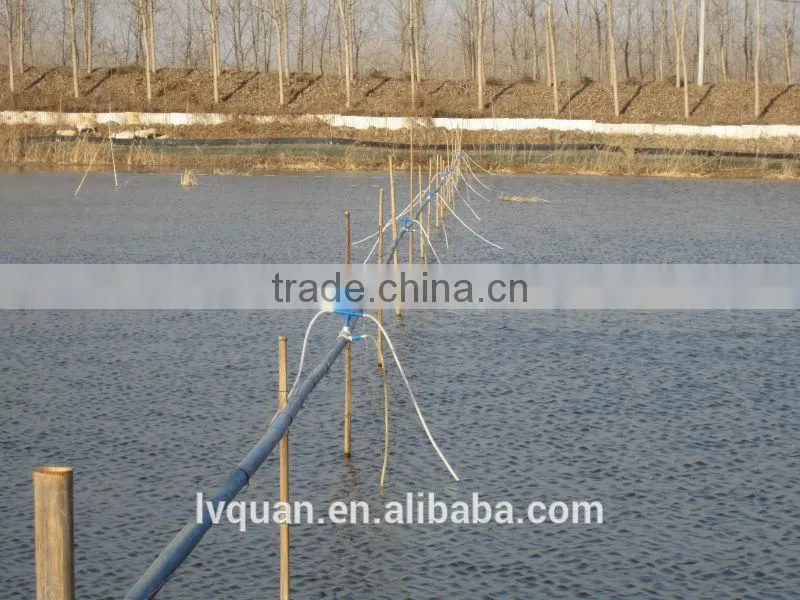

Can be used in aquaculture shrimp farming and water treatment
Sizes:
Model |
Outer Diameter(mm) |
Wall thickness(mm) |
Inside(mm) |
Weight(g/m) |
Meter/bundle |
1 |
10 |
1.5 |
7 |
45 |
200 |
2 |
14 |
2.5 |
9 |
90 |
200 |
3 |
16 |
3 |
10 |
115 |
200 |
4 |
18 |
3.5 |
11 |
150 |
200 |
5 |
20 |
3.5 |
13 |
160 |
100 |
6 |
21 |
4 |
13 |
200 |
100 |
7 |
22 |
4 |
14 |
205 |
100 |
8 |
25 |
4 |
17 |
240 |
100 |
9 |
25 |
5 |
15 |
295 |
100 |
10 |
25 |
6 |
13 |
310 |
50 |
11 |
25 |
7 |
11 |
335 |
50 |
12 |
28 |
4 |
20 |
290 |
50 |
13 |
28 |
6 |
16 |
340 |
50 |
Product performance parameters:
Outer Diameter: 10 to 28 mm
Wall thickness: 2 mm above
The bubble diameter: 20-50 um
Dynamic power: 02 / kw. Hr
The air flow: 3-12 cubic meters/HRM
Applicable water depth: 0-6 meters

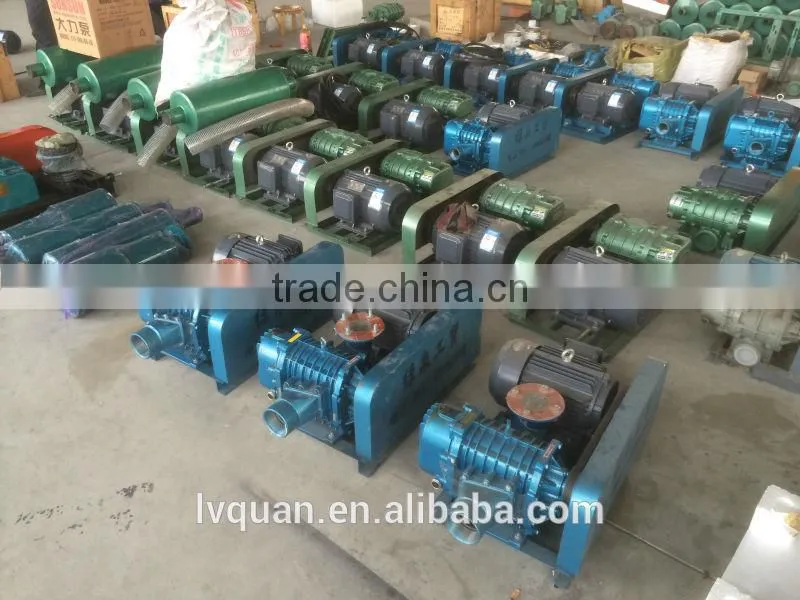

Vortex air pump: effective water depth about 1 meter , housed density 1-2 times improve.
Centrifugal pump: effective water depth about 2-3 meters, stocking density improve 3-4 times.
Cottonwood ROM watts fan: effective 3-10 metres above water depth, the effective length can reach 300 m, stocking density can be reached 3-6 times.
Note: no matter you use which kinds of models of air pump, and the pipe section sum is not greater than the total area of main section. If the unclear place, can inquire!
Fresh air through increasing oxygen were abandoned special fan, airway pressure uniform expansion and achieve aerator, large fine bubbles design value (diameter from 20 ~ 30UM), and in the water pipe smoke drift, rise in the extremely slow, dissolved oxygen has obvious effect, thus greatly improve the oxygen in water, electricity, improve liquidity increases the breeding density.
Apply pressure range wide: 10 ~ 80kpa
Applicable scope: 1 ~ 5 depth
The hoses can be wrapped in steel plate, and the corresponding plastic tube with a tee, suitable for all kinds of fish, to the layout of the real benefit farmers
