Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN

Jiangyin Glitter Air Treatment Equipment Co., Ltd.
Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN thumbnail-1
Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN thumbnail-2
Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN thumbnail-3
Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN photo-1

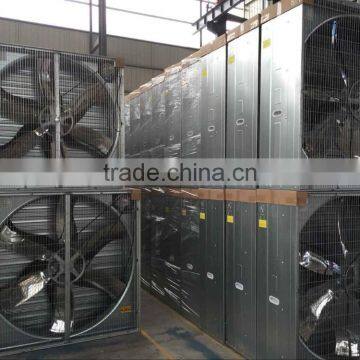

Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN photo-2

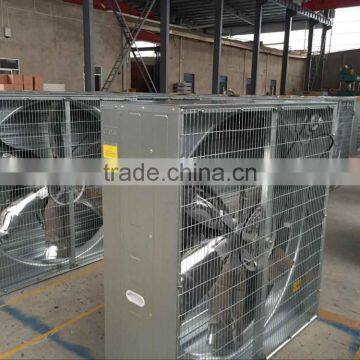

Greenhouse Ventilaton Fan FARM FAN WAREHOUSE EXHAUST FAN photo-3
US$ 225 - 250 MOQ: 20 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Jiangsu, China
Brand Name JUHUA
Model Number 50, 36
Voltage 380v
Power 0.4, 1.1
Air Volume 20800-43800
Speed 600min/r
Certification ROHS
After-sales Service Provided Engineers available to service machinery overseas

I. FEATURES:

1. Blade

Mirror stainless steel blade, imported from Germany, 6pcs, 1270mm.

Blade angle, patent design.

Complete fan, through dynamic balance test, keep consistent air flow.

2. Framework

Galvanized sheet, 275g two-side hot galvanized.

One-time molding process with water outlet at bottom.

3. Shutter

Hot galvanized sheet, high strength, keep 90° opening.

0.8mm and 1.5mm hot galvanized sheet, enhance the shutter strength and service life, increase weight and stability.

4. Centrifugal open institutions

High quality nylon material, enhance the service life. Through push-pull style, shutters open and close automatically, smoothly and silently.

5. V Belt

Mitsuboshi belt, from Japan, no deformation, free-maintenance.

6. Motor

High efficiency and energy saving, CCC certified, protection grade IP55, insulation grade F

7. Aluminum Alloy Components

V belt pulley, hot injection moulding, light material and high strength.





II. TECHINICAL PARAMETERS



Model

50’’

36’’

Power(kw)

1.1

0.4

Blade Dia(mm)

1270

910

Blade Material

430BA Krupp S S

430BA Krupp S S

Fna RPM(r/min)

437

438

Voltage(v)

380

380

Electric Current(A)

2.8

1.2

Motor RPM(r/min)

1400

1400

Air Flow(m3/h)

43800

20800

Noise(dB)

≤65

≤64

Dimension(mm)

1380*1380*450

1000*1000*450

Frame Material

275g two-side hot galvanized

275g two-side hot galvanized

Open Mode

Centrifugal/Push-pull

Centrifugal/Push-pull

Shutters Material

hot galvanized sheet

hot galvanized sheet

V Belt

Mitsuboshi

Mitsuboshi

Weight(kg)

89

55

Unit Price

$250/set

$225/set
