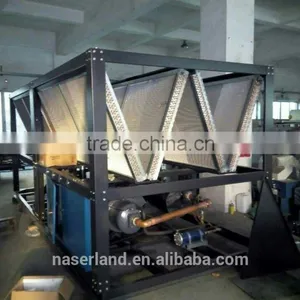

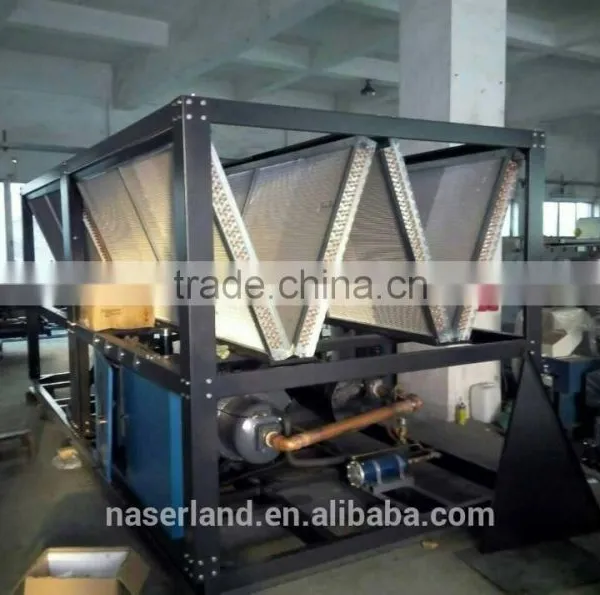

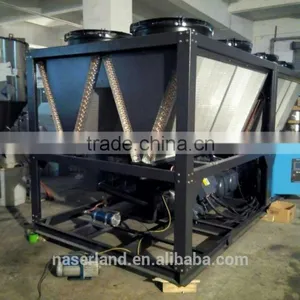

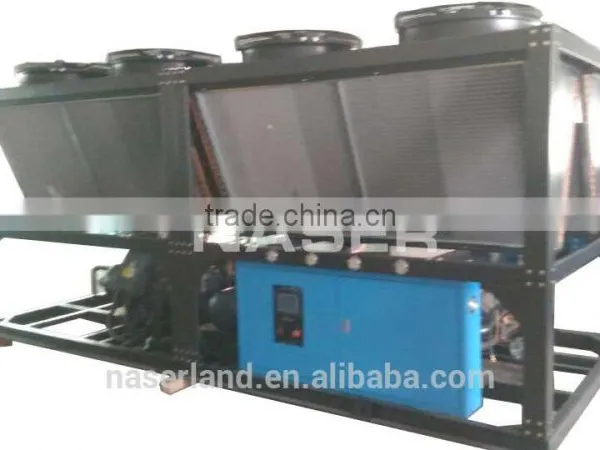

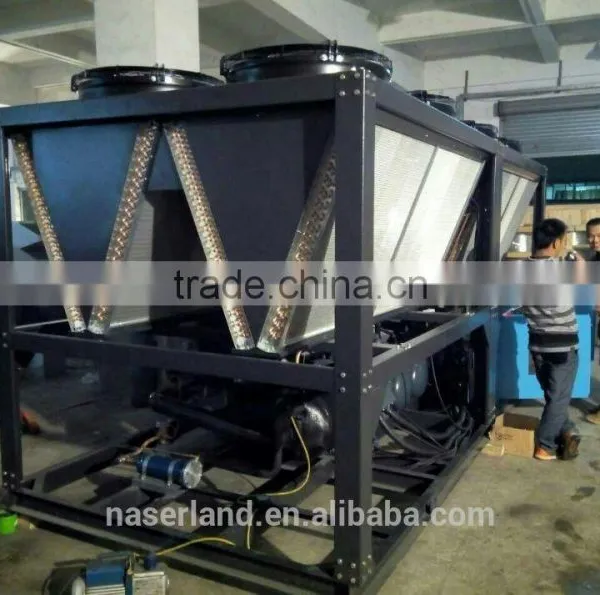

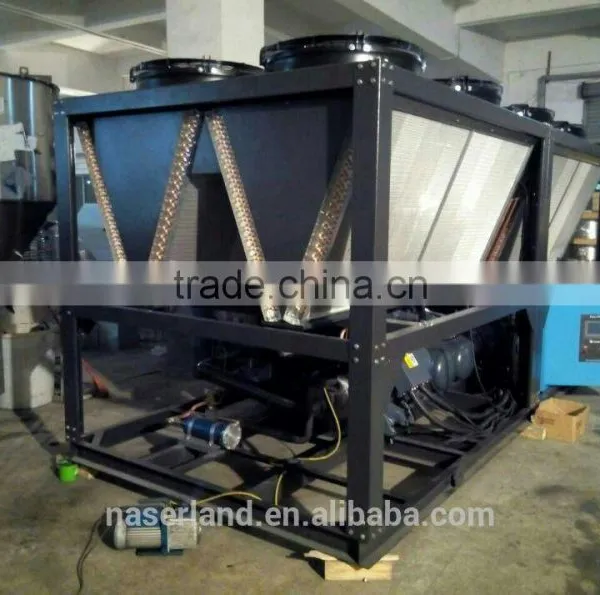

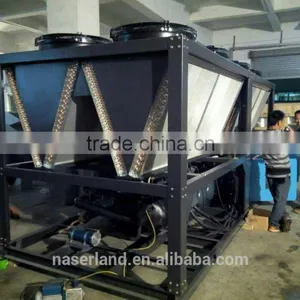

Air crew chiller feature:
NWS-60ASCS series industrial chillers are widely used in many industries like plastic and rubber manufacturing, electronics productions, electroplating medical chemistry, ultrasonic cooling and printing business etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.NASER industrial chiller are with simple operation reasonable design and superior quality for more than one hundred different models ,which are the best choice for modern industries.
Regarding to high power industrial chiller, screw type chiller is available.

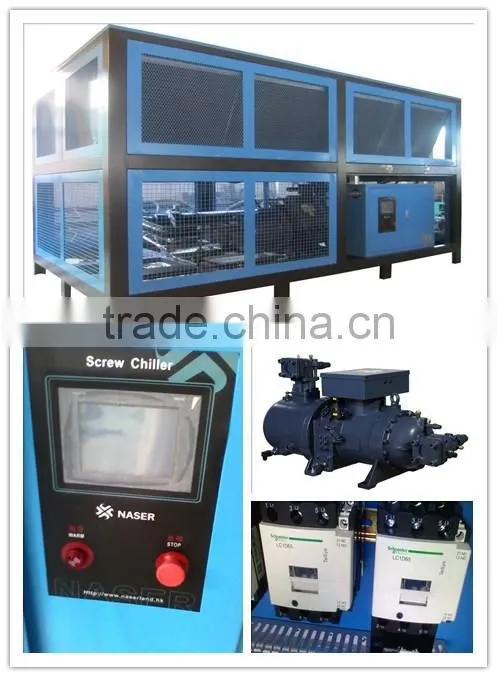

Screw type chiller adopts screw compressor, high efficiency, low noise, durable service, reliable operation.
1.Power supply:3PH-200V/220V/380V/415V-50HZ/60HZ (optional )
2.Refrigerant R22/R407C/R410A/R134A/R404A(optional )
3.Set temperature range: From 0 °C to +50°C
4.Cooling capacity: 40HP-240HP (37tons-200tons)
5.Compressor type:Semi-hermetic Screw type
6.Compressor brand: COPELAND, DANFOSS, HANBELL.BITZER
7. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
| Model | NWS-60ASCS | |
| Voltage | 380V/3P/50HZ(optional) | |
| Input power | 45kw | |
| Rated cooling capacity | kw | 183.8 |
| Kcal/h | 158068 | |
| USRT | 52.3 | |
| Compressor | Type | Semi-hermetic screw |
| Evaporator | Type | High effective internal spiral steel tube |
| Standard freezing water flow | 31.61m3/h | |
| Inlet and outlet pipe | DN80 | |
| Refrigerant | Type | R22/R134A/R410A/R407C |
| Type of control | Expanion valve | |
| Condenser | Type | High effective copper pipes covered into aluminum fins |
| Weight | kg | 1200 |
| Measure | mm | 2650*1800*1930 |
Naser Services
1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way,
do not include the daily maintaining,also we will not afford the travel expense out of ZHUJIANG delta.
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
5.We offer OEM
FRQ:
1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms
2. Delivery Detail:
About 10 workdays after payments.
3.Pacage Terms:

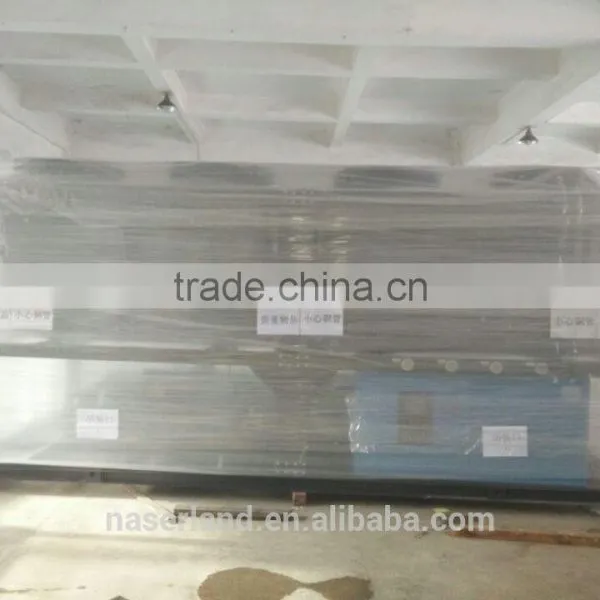

International Standard Wooden Case for Export
Pls kindly offer the following information:
1.Cooling capacity
2.Inlet /outlet water temperature
3.Chiller water flow rate
4.Retrigreant
5.Voltage/Frquency
| Type | Single Screw Compressor Air Chiller | |||||||||||
| Model | NWS-40ASCS | NWS-50ASCS | NWS-60ASCS | NWS-70ASCS | NWS-80ASCS | NWS-100ASCS | NWS-110ASCS | NWS-120ASCS | NWS-140ASCS | NWS-160ASCS | ||
| Rated cooling capacity | 50HZ | Btu/h | 447234 | 568431 | 627493 | 727523 | 840868 | 1033759 | 1150518 | 1245427 | 1483383 | 1657497 |
| KW | 131 | 166.5 | 183.8 | 213.1 | 246.3 | 302.8 | 337 | 364.8 | 434.5 | 485.5 | ||
| Kcal/h | 112660 | 143190 | 158068 | 183266 | 211818 | 260408 | 289820 | 313728 | 373670 | 417530 | ||
| USRT | 37.2 | 47.3 | 52.3 | 60.6 | 70 | 86.1 | 95.8 | 103.7 | 123.5 | 138 | ||
| Voltage | 380V/3P/50HZ(optional) | |||||||||||
| Control panel | Man-machine interface touch screen | |||||||||||
| Compressor | Compressor Power | KW | 30 | 37 | 45 | 52 | 60 | 75 | 82 | 90 | 105 | 120 |
| Stating Method | Y-Y-Staring | |||||||||||
| Capacity Control | % | 0-25-50-75-100 | ||||||||||
| Quantity | Unit | 40HP*1 | 50HP*1 | 60HP*1 | 70HP*1 | 80HP*1 | 100HP*1 | 110HP*1 | 120HP*1 | 140HP*1 | 160HP*1 | |
| Flow regulator | Thermostatic Expansion Valve | |||||||||||
| Retrigreant | R22/R407C/R134A | |||||||||||
| Condensor | Style | High Effective Red Copper Pipes Covered Into Aluminum Fins | ||||||||||
| Evaporator | Style | High effciency external spiral steel tube/ SS plate heat exchanger | ||||||||||
| Standard freezing water flow | M3/H | 22.53 | 28.63 | 31.61 | 36.64 | 42.35 | 52.07 | 57.95 | 62.73 | 74.72 | 83.49 | |
| Diameter of standard nipple | DN | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 125 | 125 | 125 | |
| Machine weight | KG | 925 | 1080 | 1200 | 1500 | 1680 | 2000 | 2150 | 2360 | 2800 | 3000 | |
| Running weight | KG | 1080 | 1250 | 1410 | 1720 | 1880 | 2160 | 2340 | 2530 | 2950 | 3250 | |
| Measure | Length | MM | 2000 | 2200 | 2650 | 2950 | 3500 | 4000 | 4800 | 5500 | 6300 | 7100 |
| Width | MM | 1600 | 1700 | 1800 | 1950 | 1950 | 1950 | 1950 | 2100 | 2100 | 2100 | |
| Hight | MM | 1880 | 1880 | 1930 | 2200 | 2200 | 2200 | 2200 | 2200 | 2350 | 2500 | |
