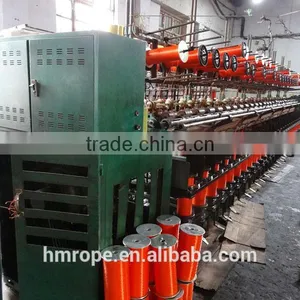

pp Yarn Twisting Machine

US$ 15,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

TM-001

Taian Hua Mei Plastics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HM

Model Number TM-001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

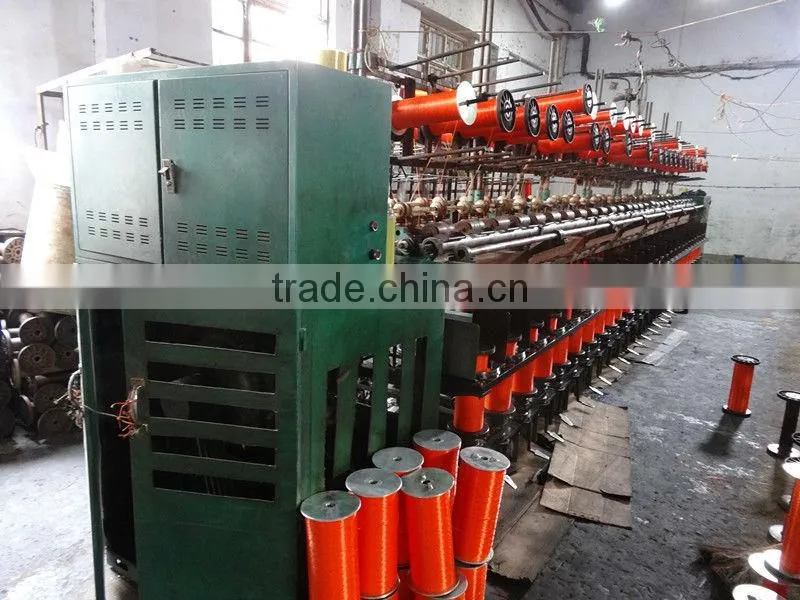

pp yarn twisting machine
1wide application scopes
2modern design
3high speed
4low noise and power consumption

pp yarn twisting machine

Condition:	New	Application:	Textile	Type:	Twisting Machine
Production Capacity:	High Effective	Place of Origin:	Shandong China (Mainland)	Brand Name:	HM
Model Number:	TM-001	Spinning Method:	Ring Spinning	Automatic:	No
Dimension(LWH):	7.071.582.27m	Weight:	6600kg	Power(W):	15kw
Certification:	No	After-sales Service Provided:	Engineers available to service machinery overseas	Spindle quantity:	40
Quality:	First class	Output capacity:	High	Operation Form:	Double face
Distance of spindle:	280mm	Dia of traveler ring:	204mm	Dia of spindle:	175mm
Feature:	wide application scopes	Advantage1:	modern design, high speed	Advantage2:	low noise and power

Specification of pp yarn twisting machine

ITEM	TM-001	TM-002	TM-003
Quantity of spindle	160	120 -180	40-80
Speed of spindle	3310-6760r/min	2800-5730r/min	1800-2800r/min
Distance of spindle	140mm	186mm	280mm
Dia of traveler ring	100mm	140mm	204mm
Twisting direction	Z or S	Z or S	Z or S
Scope of twist lay	60-800turns/m	60-690 turns/m	80-350turns/m
Listing movement of traveler ring	203mm	205mm	300mm
Dia.of roller	51mm/57mm	51mm/57mm	51mm/57mm
Operative form	Operation of double faces	Operation of double faces	Operation of double faces
Power	11KW	15KW	15KW
Overative form	13.5x1.13x2.15m	13.5x1.13x2.15m	7.07x1.58x2.27m
Machine weight	6500kg	6800kg	6600kg
