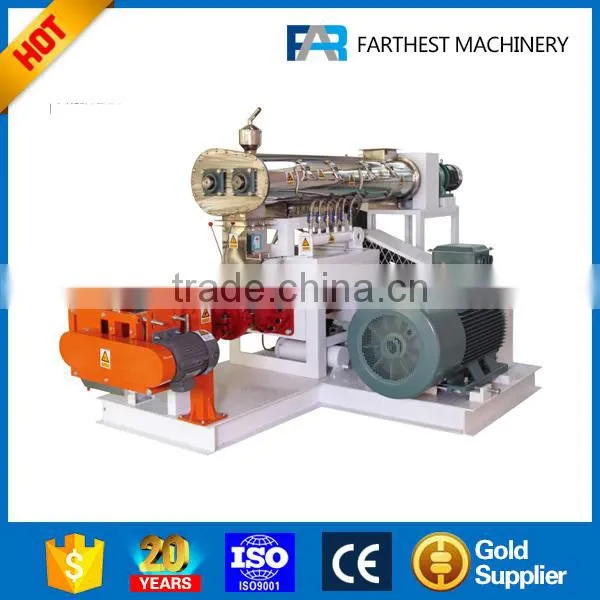

New Type Special Designed Single Screw Feed Extruder With Imported Bearings

New Type Special Designed Single Screw Feed Extruder With Imported Bearings photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
FAR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name FAR
Model Number SPHS200D
Type Bulking Machine
Voltage 380V
Power(W) 132kw
Dimension(L*W*H) Actual
Weight 3500 kg
Certification CE ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Extruder of all sorts can be offered by Farthest Machinery, such as dryer type extruder, wet type extruder, single screw extruder, double screw extruder and so on. It can be used widely in both floating aquatic feed and sinking aquatic feed.



New Type Special Designed Single Screw Feed Extruder With Imported Bearings

Feature

1. New design enables the main shaft can stand much more thrust and torque than common type. lmported bearings.



2. Steam addition in conditioner can be controlled more accurately and conveniently otherwise liquid can be well distributed.



3. Special designed inlet ensures non block and backward.



4. Fast discharge valve under conditioner can prevent stuff enter the barrel in an emergency .



5. Enhanced adaptability it can process soybean, com, compound feed continuously and smoothly with high performance.



6. This kind of extruder can also be used as expander, small changes in configuration make it easy to switch between extruder and expander for different purpose.



7.  It is particularly suitable for large and middle scale feed mills to extrude raw materials, expand feeds for poultry and livestock, form expanding-pelleting procedure.



Main Technical Parameters

Model

Main Power

(kw)

Conditioner Power        (kw)

Feeder Power

(kw)

Capacity (t/h)

 Weight

(kg)

Soybean

Compound Feed

SPHS200D

132

5.5

2.2

3.5~4.5

4.0~7.0

3500



Details

New Type Special Designed Single Screw Feed Extruder With Imported Bearings

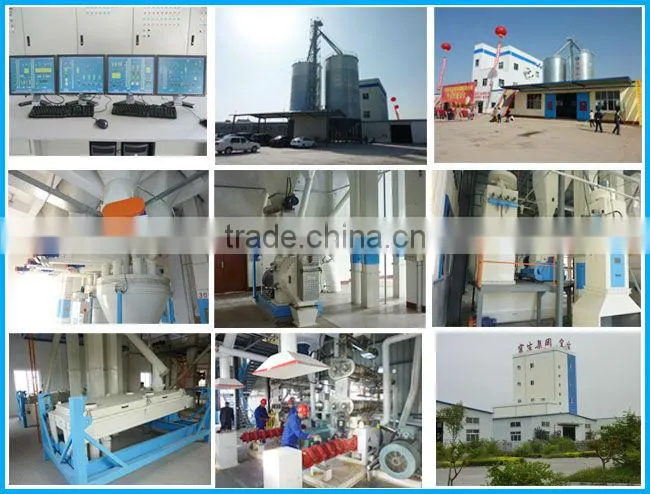

About Our Factory
New Type Special Designed Single Screw Feed Extruder With Imported Bearings
Questions

1. Q: Are you a trading company or a manufacturer?

    A: We are a manufacturer, which has almost 20 years of experience in this industry.



2. Q: How can I get to your company?

    A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.



3. Q: How long is your guarantee?

    A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.



4. Q: Will you send engineers to install the plant?

    A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.



Certification
New Type Special Designed Single Screw Feed Extruder With Imported Bearings
Exported Equipment
FAR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.

New Type Special Designed Single Screw Feed Extruder With Imported Bearings

Exhibition
   Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23rd- 25th Sep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18th-20th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.

New Type Special Designed Single Screw Feed Extruder With Imported Bearings

About US

CHANGZHOU FARTHEST MACHINERY CO., LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.

New Type Special Designed Single Screw Feed Extruder With Imported Bearings
