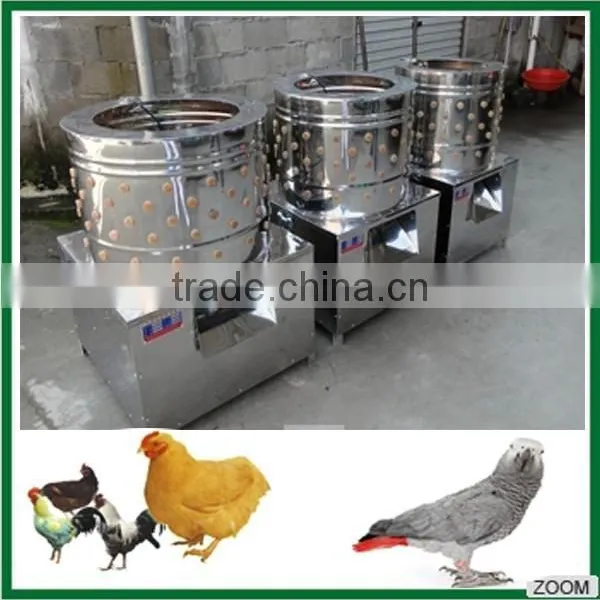

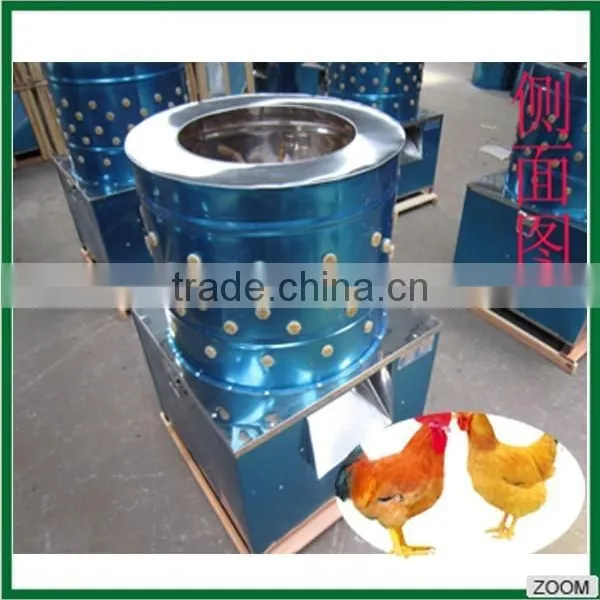

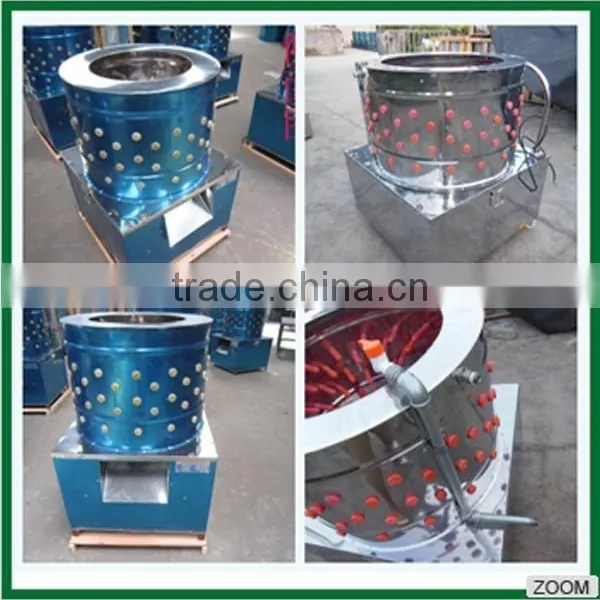

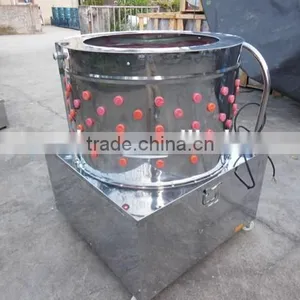

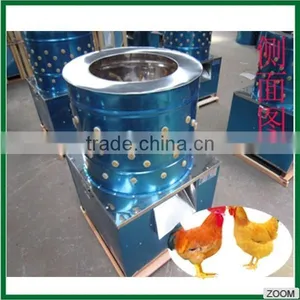

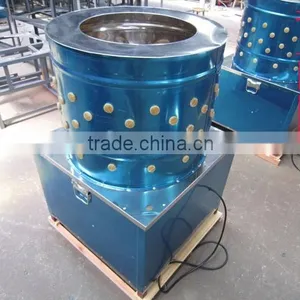

hot sale Poultry Plucker Depilator Equipment (fine Processing)
OEM |
Yes |
Type |
Common poultry plucking machine |
Model |
1100w |
|
Dimensions |
570x570x950mm (750w) 600x600x950mm (1100w) 700x700x950mm (1500w) |
Voltage |
220/380v |
Power |
1.1(kw) |
Net weight |
57KGs |
Package |
Thick carton |
Usage |
Automatically defeather slaughtered poultry |
Points for Operation of Chicken Plucker Machine
1. Equip a leakage switch on the ground line.
2. Turn on the switch, and check if the machine running normally before using.
3. Wash the bucket of pluckers completely after usage.
4. The rubber plucking fingers could be worn-out or broken after using for long periods, they must be replaced in time,So as to ensure the working efficiency.
Electric plucker Cost-effective electric chicken plucker
5. After a period of using, if the rolling disc become slower, it might be the belt screw track slip. Then please adjust the nut on the machine base, but note it can't be too tight.
Scientific installation design of rubber plucking fingers, which is easier to clean and replace
Larger size of rubber plucker fingers, more durable
The frame uses thickened 3x3 and turbine type thickened 4x4 angle iron. We use well-known brand motors.
Main Technical Specifications of chicken plucker machine
Type |
XH-50 |
XH-55 |
XH-60 |
XH-80 |
Working Ability |
8kg/min |
11kg/min |
13kg/min |
16kg/min |
Depilation Net Rate |
96% |
96% |
96% |
96% |
Net Weight |
52kg |
57kg |
61kg |
120kg |
Gross Weight |
63kg |
70kg |
72kg |
130kg |
Main Axis Rotation Speed |
180r/min |
180r/min |
180r/min |
180r/min |
Motor Power |
750w |
1100w |
2200w |
4500w |
Barrel Diameter |
550mm |
570mm |
600mm |
630mm |
Machine Dimension |
52*52*95cm |
60*60*95cm |
63*63*95cm |
76*60*95cm |
Depliation Object |
Chicken, Duck, Goose, Birds, Rabbit |
Chicken, Duck, Goose, Birds, Rabbit |
Chicken, Duck, Goose, Birds, Rabbit |
Chicken, Duck, Goose, Birds, Rabbit |
Chicken Accurate |
3-4only/min |
5-6only/min |
7-8only/min |
20only/min |
Structures of the pluckers
1-Stain steel tub
2-Rubber finger
3-Turntable
4-Seal plate
5-Feather discharge position
6-7-Bearing block
8-Driven pulley(dual trank)
9-Motor
10-Steel Frame
11-Motor belt
12-Main shaft
13-Water inlet connector
14-Upside down figher(push feater out)
Sincerely welcome you to visit, consult and negotiate business.
