Specifications
1.it is hydraulic model2.wood thickness can adjust

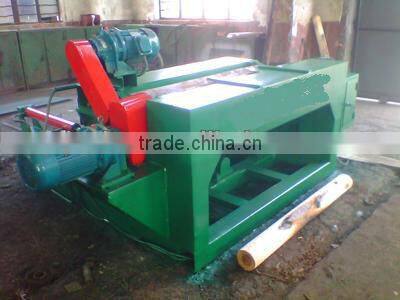

wood cheese slicer
Zhengzhou Junlan Machinery
Contact :Ms Susan
Mobile:0086-18637188608
Skype:junlanmachine168
Performance characteristics
1, increase single and double roller diameter, improve skin speed.
2, single, double roller surface chromium plating, raise the wearability of roller. After repeated experiments and theories, roller surface using hypotenuse straight slot, make the wood veneer is not easy to winding drum, improves the production efficiency.
3, through mechanics test, the rational allocation of power, for the user to save unnecessary power waste, save the cost of production.
4, the transmission part reasonable accurate alignment, ensure the continuity and reliability of the work.
5, the biggest characteristic is to use hydraulic feed mechanism, advance and retreat knife rapidly, and the feed and display the pressure adjustable, adapt to different wood, round except for its skin.
6, hydraulic power station, scientific and reasonable configuration, use the manual reset the reversing valve, quick reaction, simple operation, convenient maintenance, technical requirements for operation personnel is not high.
7, the technical requirements of the workers is not high. A machine available for 2 rotary cutting machine to work properly, can save the original artificial skin, repair process, save manpower 5-6 people.
Model |
JL-1400 |
Motor |
17KW |
Wood diameter |
400mm |
The length |
1400mm |
The left diameter |
60mm |
The speed |
40m/min |
Peeling width |
2-8mm |
Weight |
2600kg |
Roller diameter |
125mm |
Ra material needs |
any log |
Dimension |
1800×3000×1300mm |
Knifes |
good knifes |
