1>.Intorudction:
The machine is widely used for producing grains into hig-grade aquatic feed pellets for fish,catfish,shrimps,crat and pet like dog,cat etc.The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours.
According to your requirement and production scale,the floating fish feed pellet machine can be classfied into dry type machine and wet type machine.
2>.Raw material:
The raw material can be: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Oil content: ≤10%
Starch content: ≥30%

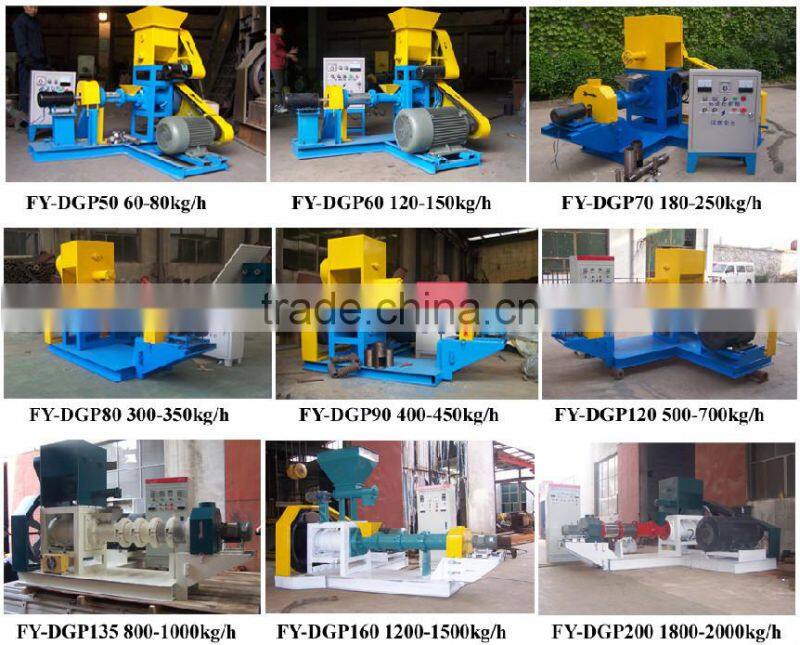

3>.Technical parameters(Dry type):
| Model | Capacity | Screw diameter | Main power | Feeding power | Cutting power |
| FY-DGP50 | 0.06-0.08t/h | φ50mm | 11kw | 0.4kw | 0.4kw |
| FY-DGP60 | 0.12-0.15t/h | φ60mm | 15kw | 0.4kw | 0.4kw |
| FY-DGP70 | 0.18-0.25t/h | φ70mm | 18.5kw | 0.4kw | 0.4kw |
| FY-DGP80 | 0.3-0.35t/h | φ80mm | 22kw | 0.4kw | 0.6kw |
| FY-DGP90 | 0.4-0.45t/h | φ90mm | 37kw | 0.4kw | 1.5kw |
| FY-DGP120 | 0.5-0.7t/h | φ120mm | 55kw | 0.4kw | 2.2kw |
| FY-DGP135 | 0.8-1.0t/h | φ133mm | 75kw | 0.4kw | 2.2kw |
| FY-DGP160 | 1.2-1.5t/h | φ155mm | 90kw | 0.75-1.1kw | 3.0kw |
| FY-DGP200 | 1.8-2.0t/h | φ195mm | 132kw | 1.5kw | 3.0-4.0kw |
4>.Working principle:
1).After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized.
2).Then the pressed material will be formed into pellets by shaping mould.You can change different moulds to make pellets with different diameters.After that a cutting device will cut the formed pellets into different length as required.
5>.Features:
1). The feed pellets can keep floating for over 24 hours without pollution on water.
2). Pellet size from diameter 0.9mm-12mm just by changing the mould,and the mould can be customized.
3).High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
4).The cutting device can make pellets of different length.
5).We can provide whole fish feed pellet production line.

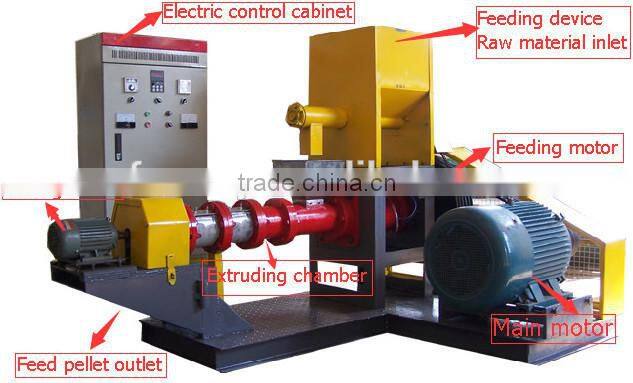

6>.Sturcture:
7>.Spare parts:
Free spare parts:One screw,2 sleeve,3 molds,cutting knife and other tools,etc
8>.Finished feed pellets:
You can make different kinds of animal feed with different shapes only by changing the molds.We can send 3 free molds to you.
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.
Zhengzhou Fanway Machinery Manufacturing Co.,Ltd is a professional manufacturer of the floating fish feed pellet machine.We specilize in researching,developing,producing and marketing top quality fish feed related machines---Cruaher,Mixer,Floating fish feed pellet machine,Dryer,Cooler,Oil coater and Packing machine.We can design turnkey floating fish feed production line for customers.
Q: What kind of floating fish feed pellet machine do we supply?
A: We have two types floating fish feed pellet machine, one is dry tye machine and the other is wet type machine. If you want to make sinking fish feed, We recommend ring die and flat die feed pellet mill .
Q: What’s the difference between dry type machine and wet type machine?
A: The biggest difference is the wet type need a steam boiler while the dry type doesn’t. In this case, the dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: What kind of raw materials should I use?
A: Soybean meal,wheat meal,corn meal,flour,bone meal,meat meal,fish meal etc.Finess in 60-80mesh.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets made by our extruder can float on the water surface for over 24 hours. While the floating time can be adjusted when the pellets are extruded.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for cat, dog, etc.
Q: What size of pellet can be made by your floating fish feed pellet machine?
A: The size of pellet is based on the diameter of the die moulds. We can customized die moulds with diameter of 1-12mm.
Q: Do you supply the fish feed production line?
A: Yes. We can supply a fish feed product line include feed hammer mill, powder mixer, fish feed pellet extruder, feed pellet dryer, fish feed pellet cooler, fish feed pellet weighing and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: It totally based on the situation of your fish. We can offer free formula to our customers.
