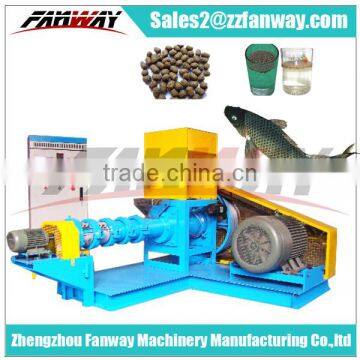

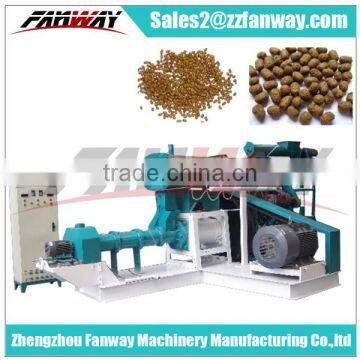

1>.Intorudction:
The machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours.
2>.Raw material:
The raw material can be: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Oil content: ≤10%
Starch content: ≥30%
3>.Technical parameters(Wet type capacity):
| Model | Capacity | Screw diameter | Main power | Feeding power | Cutting power |
| FY-DSP60 | 0.18-0.20t/h | φ60mm | 15kw | 0.75kw | 0.75kw |
| FY-DSP70 | 0.25-0.30t/h | φ70mm | 18.5kw | 0.75kw | 0.75kw |
| FY-DSP80 | 0.35-0.40t/h | φ80mm | 22kw | 1.1kw | 0.75kw |
| FY-DSP90 | 0.50-0.60t/h | φ90mm | 37kw | 1.1kw | 1.1kw |
| FY-DSP120 | 0.70-0.80t/h | φ120mm | 55kw | 1.1kw | 1.1kw |
| FY-DSP135 | 1.0-1.5t/h | φ135mm | 75kw | 1.5kw | 2.2kw |
| FY-DSP160 | 1.8-2.5t/h | φ155mm | 90kw | 2.2kw | 2.2kw |
| FY-DSP200 | 3.0-4.0t/h | φ195mm | 132kw | 2.2kw | 3.0kw |
4>.Features:
1). The feed pellets can keep floating for over 24 hours without pollution on water.
2). Pellet size from diameter 1mm-12mm just by changing the mould.
3).High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
4).The cutting device can make pellets of different length.
5>.Finished feed pellet:
You can make different kinds of animal feed with different shapes only by changing the molds.We can send 3 free molds to you.

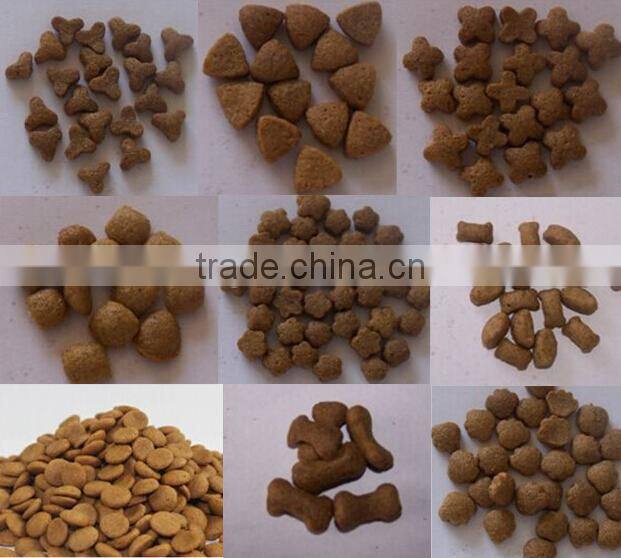

Pet feed pellet examples:

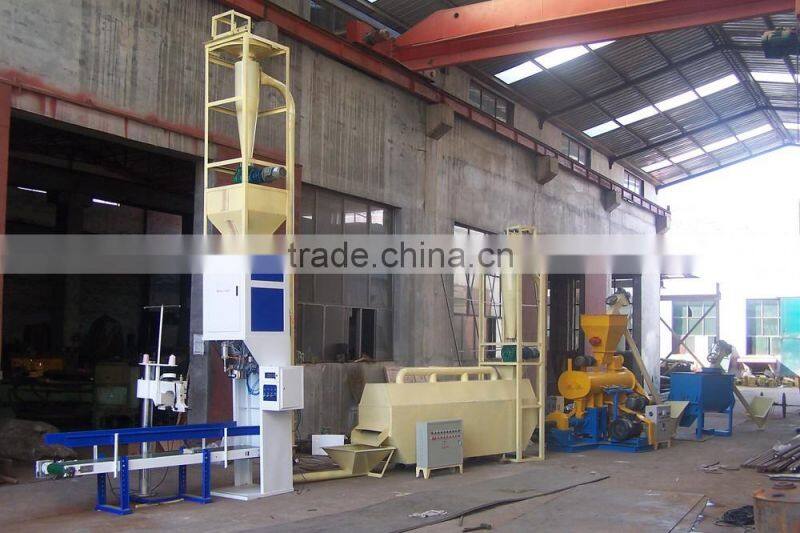

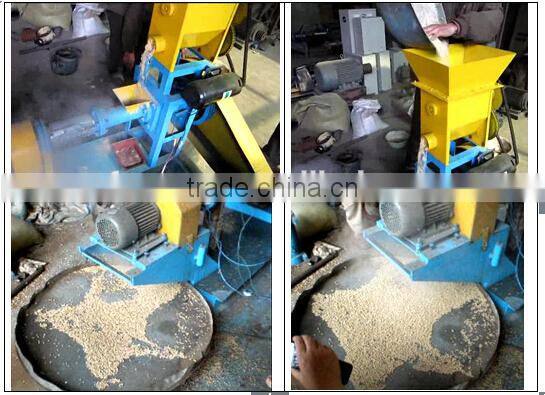

Video photo from customes site:
Packing:Export standard packaging or in container
Shipping:By sea
MOQ:1 set
Delivery time:With 4-7 days
Payment terms:T/T,West union,L/C at sight
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.
Q: What kind of fish feed machine do we supply?
A: We have two types floating fish feed pellet machine, one is dry tye machine and the other is wet type machine. If you want to make sinking fish feed, We recommend ring die and flat die feed pellet mill .
Q: What’s the difference between dry type machine and wet type machine?
A: The biggest difference is the wet type need a steam boiler while the dry type doesn’t. In this case, the dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: What kind of raw materials should I use?
A: Soybean meal,wheat meal,corn meal,flour,bone meal,meat meal,fish meal etc.Finess in 60-80mesh.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets made by our extruder can float on the water surface for over 24 hours. While the floating time can be adjusted when the pellets are extruded.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for cat, dog, etc.
Q: What size of pellet can be made by your fish feed pellet machine?
A: The size of pellet is based on the diameter of the die moulds. We can customized die moulds with diameter of 1-12mm.
Q: Do you supply the fish feed production line

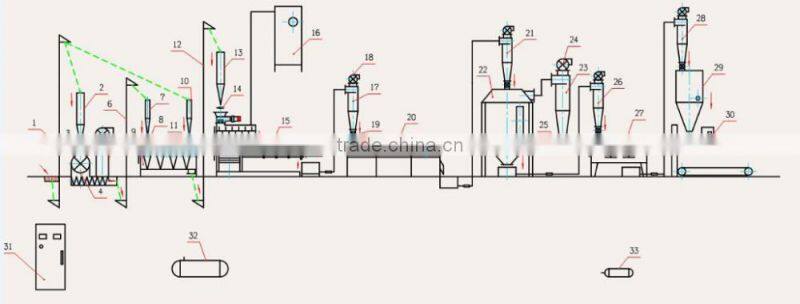

A: Yes. We can supply a fish feed product line include feed hammer mill, powder mixer, fish feed pellet extruder, feed pellet dryer, fish feed pellet cooler, fish feed pellet weighing and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: It totally based on the situation of your fish. We can offer free formula to our customers.
