1>.Intorudction of fish feed pellet machine:
The fish feed pellet machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours.
2>.Raw material of fish feed pellet machine:
The fish feed pellet machine raw material can be: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Oil content: ≤10%
Starch content: ≥30%
3>.Working principle of fish feed pellet machine:
1).After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized.
2).Then the pressed material will be formed into pellets by shaping mould.You can change different moulds to make pellets with different diameters.After that a cutting device will cut the formed pellets into different length as required.
4>.Technical parameters(Wet type) of fish feed pellet machine:
| Model | Capacity | Screw diameter | Main power | Feeding power | Cutting power |
| FY-DSP60 | 0.18-0.20t/h | φ60mm | 15kw | 0.75kw | 0.75kw |
| FY-DSP70 | 0.25-0.30t/h | φ70mm | 18.5kw | 0.75kw | 0.75kw |
| FY-DSP80 | 0.35-0.40t/h | φ80mm | 22kw | 1.1kw | 0.75kw |
| FY-DSP90 | 0.50-0.60t/h | φ90mm | 37kw | 1.1kw | 1.1kw |
| FY-DSP120 | 0.70-0.80t/h | φ120mm | 55kw | 1.1kw | 1.1kw |
| FY-DSP135 | 1.0-1.5t/h | φ135mm | 75kw | 1.5kw | 2.2kw |
| FY-DSP160 | 1.8-2.5t/h | φ155mm | 90kw | 2.2kw | 2.2kw |
| FY-DSP200 | 3.0-4.0t/h | φ195mm | 132kw | 2.2kw | 3.0k |
5>.Features of fish feed pellet machine:
1). The feed pellets can keep floating for over 24 hours without pollution on water.
2). Pellet size from diameter 1mm-12mm just by changing the mould.
3).High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
4).The cutting device can make pellets of different length.
5).We can provide whole fish feed pellet production line.

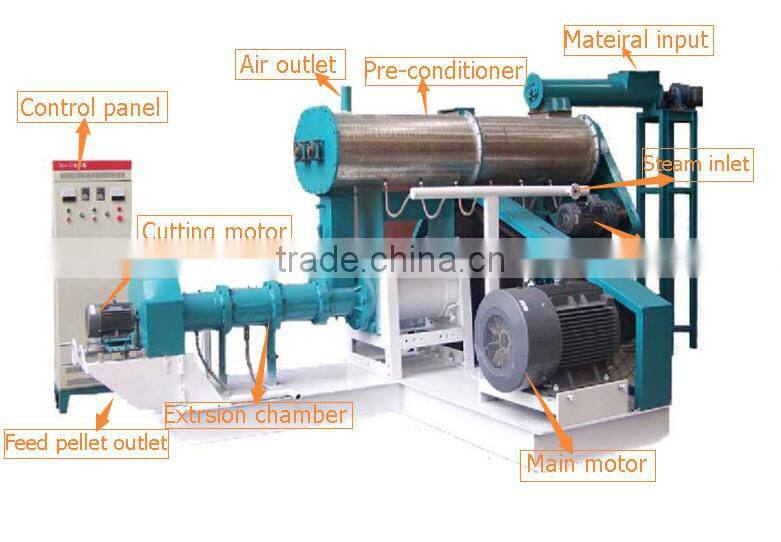

6>.Detailed pictures of fish feed pellet machine:

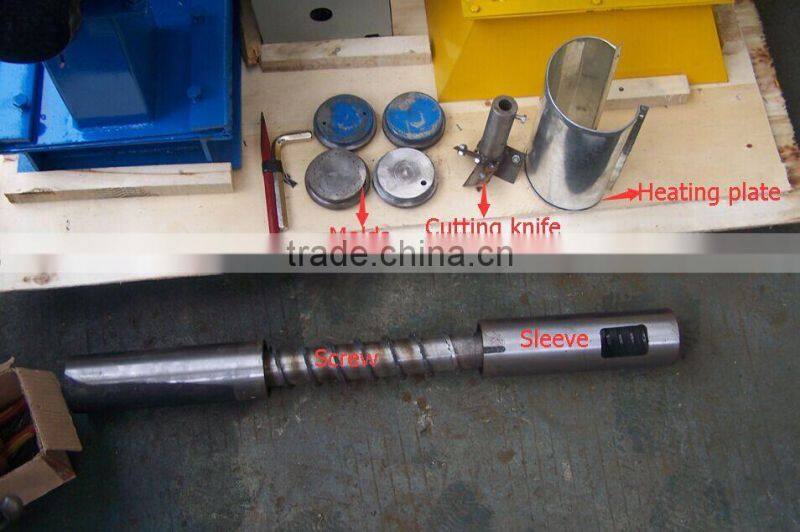

7>.Spare parts of fish feed pellet machine:
Free spare parts:One screw,2 sleeve,3 molds,cutting tools,etc

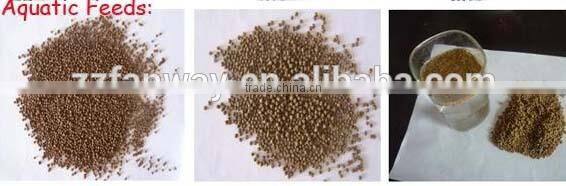

8>.Finished pellets of fish feed pellet machine:
You can make different kinds of animal feed with different shapes and diameters only by
changing the molds.for more details, just freelycontact me.
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.

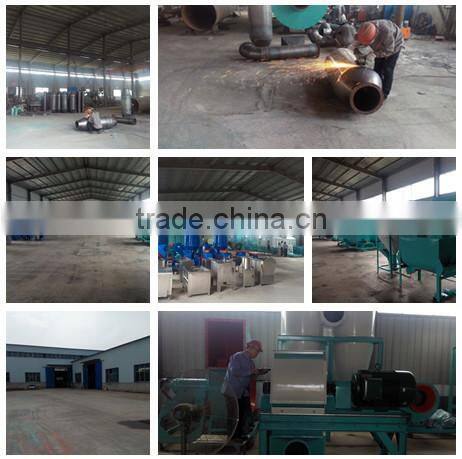

Zhengzhou Fanway Machinery Manufacturing Co.,Ltd, is a professional manufacturer of the fish feed pellet machine. We specialize in researching, developing, producing and marketing top quality fish feed related machines—crusher, mixer, fish feed pellet machine, dryer, cooler, oil coater and packing machine. We can design turnkey floating fish feed production line for customer.
Q: What kind of fish feed pellet machine do you supply?
A: We have two types fish feed pellet machine, one is dry tye machine and the other is wet type machine.
Q: What’s the difference between dry type machine and wet type machine?
A: The biggest difference is the wet type need a steam boiler while the dry type doesn’t.
In this case, the dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: What kind of raw materials should I use?
A: Soybean meal,wheat meal,corn meal,flour,bone meal,meat meal,fish meal etc.Finess in 60-80mesh.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets made by our extruder can float on the water surface for over 24 hours. While the floating time can be adjusted when the pellets are extruded.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for cat, dog, etc.
Q: What size of pellet can be made by your fish feed pellet machine?

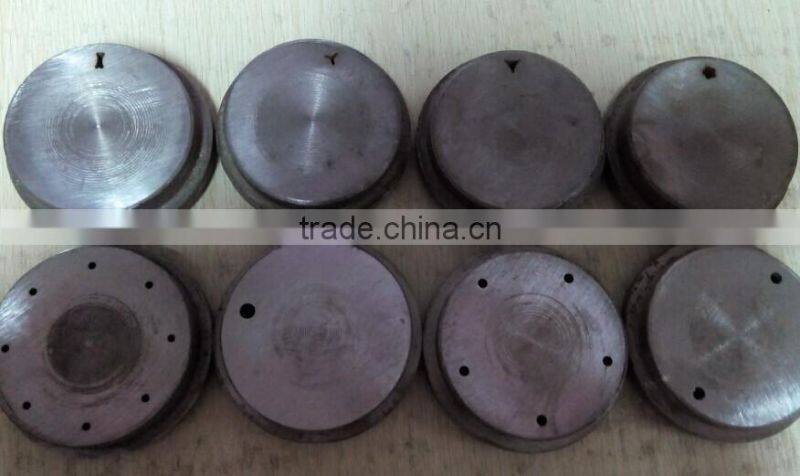

A: The size of pellet is based on the diameter of the die moulds. We can customized die moulds with diameter of 1-12mm.
Q: Do you supply the fish feed production line?
A: Yes. We can supply a fish feed product line include feed hammer mill, powder mixer, fish feed pellet extruder, feed pellet dryer, fish feed pellet cooler, fish feed pellet weighing and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: It totally based on the situation of your fish. We can offer free formula to our customers.
