Help Center60T Bolted Cement Silo for Storage Cement
Related Products
-
China Top Ten Selling Products Hand Operated Brick Making MachineUS$ 5,000 - 100,000MOQ: 1 Set -
Automatic Sand Brick Making Machine Wholesale China FactoryUS$ 5,000 - 100,000MOQ: 1 Set
-
China Manufacturer Wholesale Spare Parts for Brick Making MachineUS$ 5,000 - 100,000MOQ: 1 Set
-
Best Selling Hot Chinese Products Corrugated Steel Silo/oil SiloUS$ 5,000 - 65,000MOQ: 1 Set
-
High Quality Cheap Price Cement Storage Silo/concrete Silo/mini SiloUS$ 5,000 - 65,000MOQ: 1 Set
Luwei company is a professional manufacturer in producing bolted-type silo, which has it own national patent certificate for ‘Bolted-type Powder Silos’ (Patent No.201020649684.5). It covers an area of 8000 square meter which integrates research, development, manufacture and sales into a whole. It can supply 100 sets of silos every month. The annual sales value reaches five million dollars.
Luwei bolted-type silo is used for storing bulk materials such as cement, powder, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippings. Luwei bolted-type silo is mainly used in many areas, such as construction material, chemical engineering, energy resources, environmental protection and foodstuff, like loading and unloading plants, dosing-weighing and mixing plants, batching plant etc.

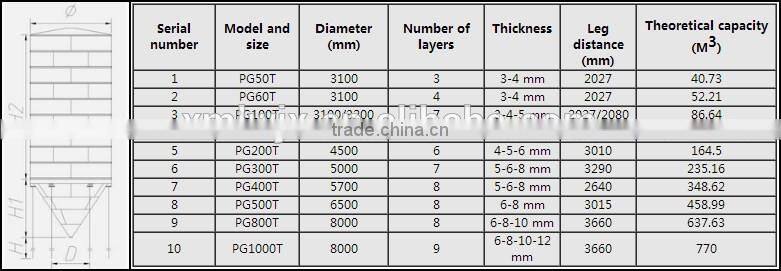

1. Technical index (just for reference):
Remarks: The discharge height will be designed according to client's requirements.
2. Silo structure introduction
1. Various capacity and customized silo. The capacity of bolted-type silo ranges from 50T to 3000T flexible. We can design and manufacture the silo according to customer's requirement.

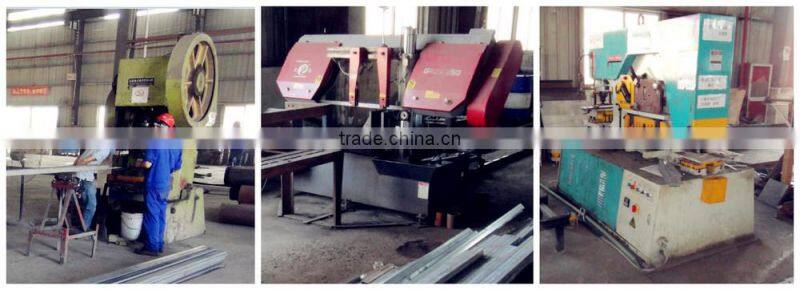

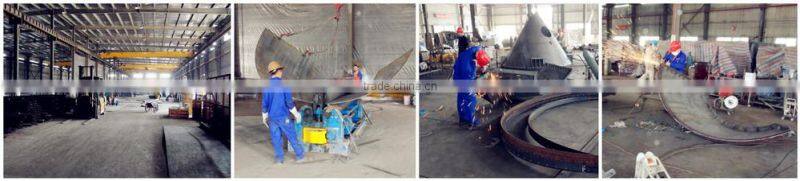

2.Fully equipped factory. With mature special cutting and drilling technology, all parts are specially cleaned on the surface, and then well painted both inside and outside.
3. Professional packing and loading. All parts of silo can be packing into bundles with short loading time and little space. Whatever large size of silo, it can be shipped into container by sea to all over the world.
4. Easy assembly. All the parts of silo can be well assembled with the help of English Installation Instruction Program. The construction will be safe and efficient.
5. Unique sealing technology. Luwei bolted-type silo has triple reliable seal protection.
6. Recycling use. Luwei bolted type silo is convenient to install and remove. It realizes to recycle on different construction sites and long-term service life. Also the cost for secondary investment can be reduced as well as the delivery time can be shorted.
All parts of silo can be packing into bundles with short loading time and little space. Whatever large size of silo, it can be shipped into container by sea t all over the world.
1. All parts of silos can be packed into bundles, so it can reduce the loading time and it greatly save the space while during the period of transportation.
2. The silos can be transported regardless of size. It can greatly reduce the transportation cost because more than one silo may be carried by one truck.
Type of shipping: flat-bed trailer for domestic market; container for international market
The container require for transportation (for reference):
Type |
One set |
Two sets |
Three sets |
Four sets |
50T |
40’GP |
40’HQ |
1*40’HQ +1*20’GP |
2*40’HQ |
60T |
40’GP |
40’HQ |
1*40’HQ +1*20’GP |
2*40’HQ |
100T |
40’GP |
40’HQ |
1*40’HQ +1*20’GP |
2*40’HQ |
150T |
40’HQ |
40’HQ |
1*40’HQ +1*20’GP |
2*40’HQ |
200T |
40’HQ |
1*40’HQ +1*20’GP |
2*40’HQ +1*20’GP |
3*40’HQ |
300T |
1*40’HQ+1*20’GP |
2*40’HQ |
3*40’HQ |
4*40’HQ |
400T |
2*40’HQ |
3*40’HQ |
4*40’HQ |
5*40’HQ |
500T |
2*40’HQ |
3*40’HQ |
4*40’HQ +1*20’GP |
6*40’HQ |

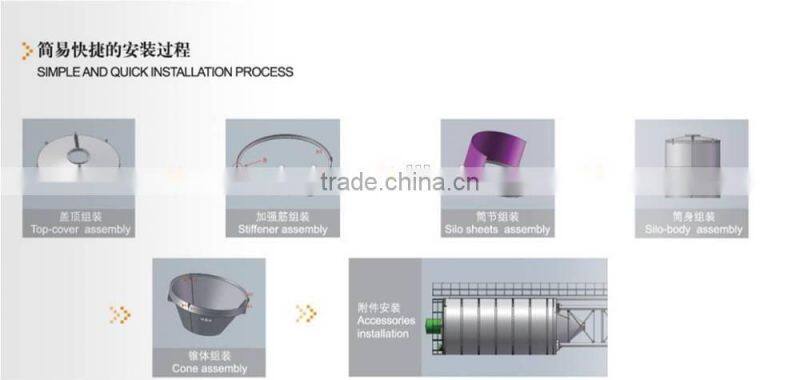

1. Installation Overall Steps

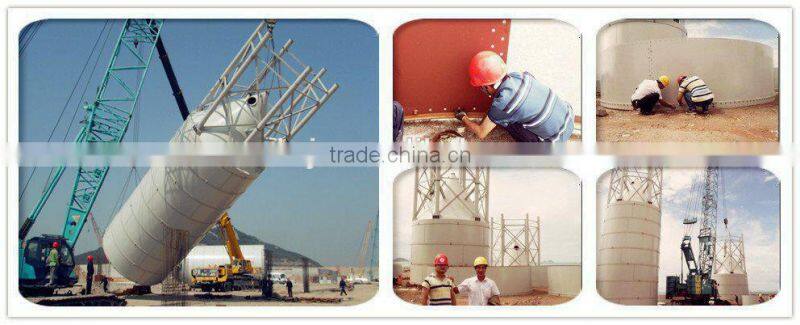

2. Detail Installation Step with image in site
1). Lay out the components according to the site condition.
2). Assemble component parts.
3). Connect component part.
4). Reverse silo.
5). Erect the silo and connect to the foundation.
3. Silo installation schedule (for reference):
Type |
Installation Schedule |
||
1-2 days |
3-5 days |
5-8 days |
|
50T |
√ |
|
|
60T |
√ |
|
|
100T |
√ |
|
|
150T |
√ |
|
|
200T |
|
√ |
|
300T |
|
√ |
|
400T |
|
|
√ |
500T |
|
|
√ |
800T |
|
|
√ |
1000T |
|
|
√ |
Luwei company can produce any silos according to client's requirements from 30T to 3000T capacity. For example, different density, different storage material, different type legs, many silo cones, and also thicker silo plates etc.
Any problem, freely contact us, Tina is here for your service.
