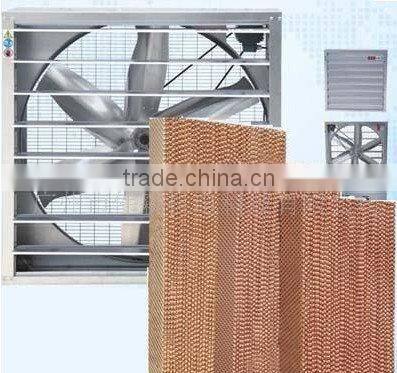

Specifications
High absorbing water,resisting impact,anti-corrosionpad cool by evaporation
A long lifespan
Eliminating smell
Easy cleaning
the characteristics of cooling pad:
1.good capability of absorbing water, ventilating and cooling down, a long lifespan, your best choice.
2.improve the weak points of traditional evaporative pad, such as fragility, inconvenience to clean. Excellent capability of resisting impact and bearing corrosion.
3.eliminating smell by special treatment
4.the material is corrugated cellulose paper
5.Stainless Steel or Aluminum Alloy gutter
PVC water pipe
6.The size of Cooling Pad can be made according to customers requirements.
7.The product involves surface active agent, absorb water naturally, fast speed of pervasion, lasting effectiveness. And it is high absorbability of water, high water resistant, anti-mildew and long service life with the use of the new material and the spatial crossing linking technology.
8.A piece of water can diffuse in 4-5 seconds. Height of water absorbing : 60-70 mm/5 seconds, 200mm/1.5 hours, can achieve international standard.
9.the evaporative area is about 100 times of appearance, cooling efficiency as high as 80%.
10.our cooling pad does not contain phenol and the similar chemical products which is irritant to the skin. It is harmless and pointless while installation and using. It is safe,energy saving, environmentally friendly, economic and durable.

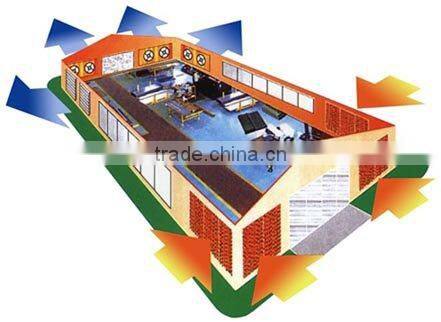

cooling theory of WUSUN cooling pad:
The cooling process of WUSUN evaporative cooling pad is completed in its core--the paper pad of WUSUN . There is a thin layer of water film on the surface. the water film will evaporate and absorb the heat of air, then form steam. The cooling , moist air after being treated will go into the indoor. This natural process is just like the one of the wind off the water.
Whenever the temperature of dry ball and wet ball outside is different, the temperature of dry ball is high while wet ball is low. the hotter the weather is, the greater the temperature difference is.
Model |
7090 |
5090 |
|
||||
H(mm) |
1500,1800,2000 |
1500,1800,2000 |
|
||||
W(mm) |
600,300 |
600,300 |
|
||||
D(mm) |
100,150,200 |
100,150,200 |
|
||||
Ripple Height( mm) |
7 |
5 |
|
||||
α( °) |
45 |
45 |
|
Supplying ability:
1) The biggest cooling pad supplier in China.
2) we can produce 300 cubic meter cooling pad per day.
3)one year guarantee
Pad can work more than 6 year in normal environment.
Application:
Our exhaust fan can be used in almost all places which need ventilation and cooling.
1.industry: garment manufacturing factory, electronics, plastic, shoe, toy, hardware factory and so on
2.Commerce: hall, supermarket, hotel, net bar, recreational place, guesthouse.
3.Public: hospital, station, gym, school
4.Animal husbandry: poultry house, pig, chicken, rabbit, cow barn
5.Agriculture: horticulture, greenhouse.
