Help CenterEvaporative Cooling Pad With Aluminium Alloy Frame
Related Products
Specifications
High absorbing water,resisting impact,anti-corrosionpad wall
A long lifespan
Eliminating smell
Easy cleaning
the characteristics of evaporative cooling pad wall:
1.good capability of absorbing water, ventilating and cooling down, a long lifespan, your best
choice.
2.improve the weak points of traditional evaporative pad, such as fragility, inconvenience to
clean. Excellent capability of resisting impact and bearing corrosion.
3.eliminating smell by special treatment
4.the material is corrugated cellulose paper
5.Stainless Steel or Aluminum Alloy gutter
PVC water pipe
6.The size of Evaporative Cooling Pad wall can be made according to customers requirements.
cooling theory of WUSUN evaporative cooling pad wall:
The cooling process of WUSUN evaporative cooling pad wall is completed in its core--the paper pad of WUSUN . There is a thin layer of water film on the surface. the water film will
evaporate and absorb the heat of air, then form steam. The cooling , moist air after being treated
will go into the indoor. This natural process is just like the one of the wind off the water.
Whenever the temperature of dry ball and wet ball outside is different, the temperature of dry ball
is high while wet ball is low. the hotter the weather is, the greater the temperature difference is.
the cooling efficiency of WUSUN evaporative cooling pad wall:
1.The product involves surface active agent, absorb water naturally, fast speed of pervasion,
lasting effectiveness. And it is high absorbability of water, high water resistant, anti-mildew
and long service life with the use of the new material and the spatial crossing linking technology.
2.A piece of water can diffuse in 4-5 seconds. Height of water absorbing : 60-70 mm/5 seconds,
200mm/1.5 hours, can achieve international standard.
3.the evaporative area is about 100 times of appearance, cooling efficiency as high as 80%.
4.our cooling pad does not contain phenol and the similar chemical products which is irritant to
the skin. It is harmless and pointless while installation and using. It is safe,energy saving,
environmentally friendly, economic and durable.
model |
7090 |
5090 |
H(mm) |
1500,1800,2000 |
1500,1800,2000 |
W(mm) |
600,300 |
600,300 |
D(mm) |
100,150 |
100,150 |
Ripple Height( mm) |
7 |
5 |
α( °) |
45 |
45 |
β( °) |
45 |
45 |

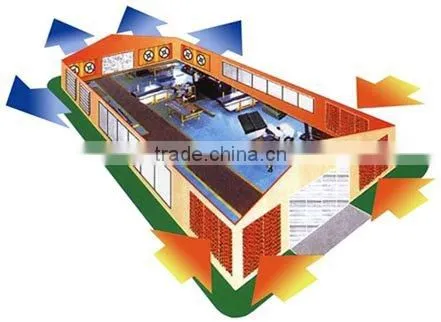

the combination of exhaust fan and evaporative cooling pad wall can sustain the factory temperature in less than 30 and make air change 80--90times per hour,no matter how high the original temperature is.

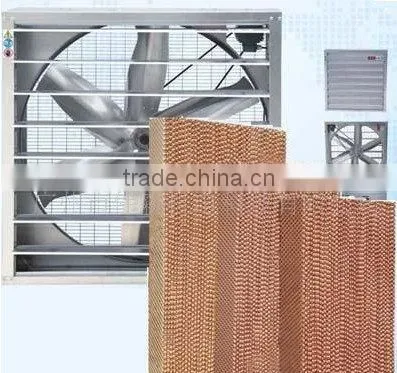

the combination way of exhaust fan and evaporative cooling pad:
1)WUSUN1380 exhaust fan with 6 square meter of evaporative cooling pad wall can meet 500 --550m³.
2)WUSUN1220 exhaust fan with 5 square meter of evaporative cooling pad wall can meet 450--500m³.
3)WUSUN1060 exhaust fan with 4 square meter of evaporative cooling pad wall can meet 400--450m³.
4)WUSUN900 exhaust fan with 3 square meter of evaporative cooling pad wall can meet 350--400m³.
Supplying ability:
1) The biggest evaporative cooling pad wall supplier in China.
2) we can produce 300 cubic meter cooling pad per day.
3)one year guarantee
Pad can work more than 6 year in normal environment.
Application:
Our evaporative cooling pad wall can be used in almost all places which need ventilation and
cooling.
1.industry: garment manufacturing factory, electronics, plastic, shoe, toy, hardware factory and so on
2.Commerce: hall, supermarket, hotel, net bar, recreational place, guesthouse.
3.Public: hospital, station, gym, school
4.Animal husbandry: poultry house, pig, chicken, rabbit, cow barn
5.Agriculture: horticulture, greenhouse.
