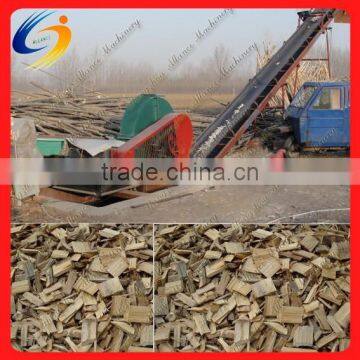

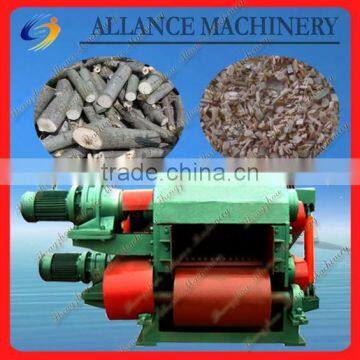

94 Woodworking Machinery Shaving Wood Chippers

• Functions--wood chipper drum chipper/drum wood chipping machine

The main cut raw material is small-dimension stock,Wood harvesting, processing remaining

such as branches,slab,wattle,logs core, waste board),and it can also be used to cut the woodinessmaterials (such as sugar cane, reed, bamboo, ec).

• Applied Industy-wood chipper drum chipper/drum wood chipping machine

Particle board factory, high density fiberboard factory, grain Factory, biomass power plant, chipper factory

• Technical Parameters-wood chipper drum chipper

--Model: AGXM-215

--Inlet size: 160*400mm

--Blade Qty: 2 pieces

--Blade roller speed: 592RPM

--Max diameter of material: 160mm

--Chip size: 30mm

--Output: 3-4t/h

--Main Motor power: 45Kw

--Feeding roller motor power: 2.2-3Kw

--Oil pump power: 1.5*1Kw

--Conveyor power: 3Kw

• Features--wood chipper drum chipper/drum wood chipping machine

advanced structure,high quality of chips and convenience operation and maintaining.

• Consititution--wood chipper machine/drum wood chipping machine

Drum chipper consist of engine base,blade roller,upper and lower feeding roller,belt conveyor,hydraulic system etc.

1, One year guarantee from exporting date.
2, If any easily damaged parts are found defective in quality for the first year, we will replace it

for free.

If you are interested in our wood chipper machine, just let me know below details:

1. What is the capacity you process wood material?

2. What is the raw material and size?

3. What is the output chips size?

Contact: Rita Gao

Tel No.: 0086-15737121372/0086-0371-65926616

Fax No.: 0086-0371-65903401

Skype: rita198739
